Features & Specs
Frame Working
Silicon Sealing Machine
It is a steel structure machine where silicon sealing is applied to linear aluminum profiles prior to frame installation. Precision screw drive guarantee consistent transmission. Two pieces of profile could be sealed at the same time. Positioning is achieved by sensors.
| Max. Sealing Length | 2000 mm |
| Sealing Speed | 4 pcs / min. (Base on 2000mm Profile) |
| Compress Air Pressure | 0.5 ~ 0.8 MPa |
| Voltage | 220V / Single Phase / 50 Hz |
| Outer Dimension (LxWxH) | 2500 x 1000 x 900 mm |
Semi-Automatic Frame Installing Machine
- The machine is used to assembly and install silicon sealed aluminium profiles around solar module.
- It is equipped with pneumatic cylinders.
- It assembles, fixes and tightens profile frame onto solar modules easily and faster.
- There are casters which allows solar module freely move in any direction during assembly.
- The machine can process standard or non-standard solar modules.
| Structure | Steel Structure |
| Outer Dimension (LxWxH) | 3000 x 1300 x 940 mm |

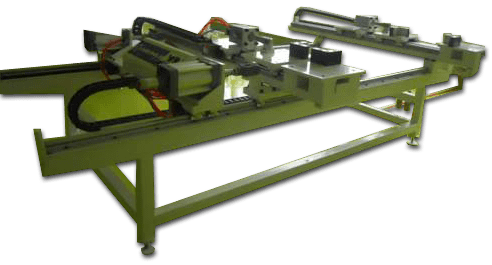

Fully Automatic Frame Installing Machine
- The machine is used to assembly and install silicon sealed aluminium profiles around solar module fully automatically.
- It consists of pneumatic cylinders, hydraulic system, guide rails and steel structure.
- Assembled solar module is in position and fix by hydraulic.
- Frame size is infinitely adjustable.
- Applicable to various aluminum profile sections.
| Max. Frame Size | 2000 x 1200 x (35~50) mm |
| Min. Frame Size | 300 x 300 x (35~50) mm |
| Parallel Accuracy | ± 1 mm |
| Diagonal Accuracy | ± 1.5 mm |
| Corner Angle Deviation | ± 0.5o |
| Compress Air Pressure | 0.4 ~ 0.7 MPa |
| Hydraulic Pressure | 1 ~ 15 MPa |
| Outer Dimension (LxWxH) | 2900 x 1900 x 970 mm |
Screw Driver Power Supply
It is used to fix aluminum frame onto solar module. Durable and reliable power supply.
Framework Inspection Table
Solar module is put on this table for inspection after frame installing. It is a steel structure table. Table top is made of anti-static high density board.
| Structure | Steel Structure with Anti-Static High Density Board Table Top |
| Outer Dimension (LxWxH) | 1200 x 1220 x 760 mm |
