Sliding Individual Glass Bending Oven with One Tiltable Top Annealing Station (GBO-A-D)

  • Features
  • Operation
  • Specifications

Features

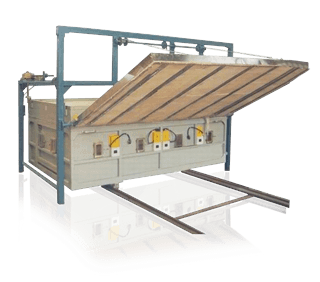

Sliding Glass Bending Oven with One Tiltable Top Annealing Station
  • Two Stations Glass Bending Furnace
  • One Heating Chamber & One Annealing Station with Tiltable Top Cover
  • Metal Structure with High Temperature Resistant Paint
  • Oven Box is Thermally Insulated with Heat Preservation Materials
  • Tilting Top Cover Heat Insulated with Thick Thermal Preservation Materials
  • Tilted Top Cover Provides Better & Efficient Annealing
  • Loading, Unloading & Cooling of Bending Moulds & Glass are Carried Out at Annealing Station
  • Oven Body Moving Among 2 Stations
  • Minimum Heat Loss with Lowest Possible Energy Consumption
  • Heating Elements Installed on Top of Heating Chamber
  • Each Heating Resistor is Individually Control by Corresponding Switch on Control Panel
  • Thermocouples Measure Real Time Temperatures

Operation

Loading

Oven body is in loading area with top cover tilted open. Bending mould and glass are loaded onto oven body. Top cover tilts down. Oven body is moved into heating chamber along rail tracks.

Heating

Glass starts to be heated up with all heating resistors turned on. When it becomes soft, it slowly falls down and approaches to bending mold by means of gravity. Operator begins to turn off proper heating resistors with respect to glass curvature until glass edges get in contact around the rim of bending mould.

Annealing

Glass begins to anneal at heating chamber. If necessary, oven box is moved out to annealing station with top top gradually tilts up to allow annealing in a better and efficient way.

Cooling

When annealing is accomplished, top cover is open at its maximum tilting up position for cooling.

Unloading

When glass is cooled enough for handling, glass is unloaded and removed. Another glass is loaded on bending mould. If glass type is changed, bending mould is replaced by corresponding bending mould. Bending, annealing and cooling cycle are repeated.

Specifications

Models GBO-A-D-1222 GBO-A-D-1525 GBO-A-D-1730 GBO-A-D-1737 GBO-A-D-1742 GBO-A-D-2540
Max. Glass Size (mm) 1200 x 2200 1500 x 2500 1700 x 3000 1700 x 3700 1700 x 4200 2500 x 4000
Power (KW) 52 72 104 128 145 204
Weight (kg) 1990 2820 3850 4740 5390 7550
Outer Dimensions (LxWxH) (mm) 2800 x 3600 x 1400 3100 x 4200 x 1400 3600 x 4600 x 1400 4300 x 4600 x 1400 4800 x 4600 x 1400 4600 x 6200 x 1400
