Washing and Drying Machine
Washing Section
- This section consists of pairs of cylindrical brushes to wash and clean the glass thoroughly.
- Each pair of cylindrical brush is comprised of upper and lower cylindrical brushes, water pipes with sprinklers nozzles.
- The bottom washing section is an integrated compact designed.
- The upper section is also an integrated compact designed and the complete upper section can be lifted up to regulate the height when washing different glass thicknesses, or for maintenance when it goes all the way up.
- The upper section is lifted up through T-type screws, bevel gears and shafts, etc. The lifting driver is located on the upper section.
- Those parts in direct contact with water are made of stainless steel.
- The top and sides covers of the washing section are all made of stainless steel.
- The structural frames and supports are made of carbon steel and the surfaces are rust-proof treated.
- There are stainless steel partitions in between every two pairs of cylindrical brushes. The water circulation system for each pair of cylindrical brush is individual from each other. The partitions are used to prevent water from contaminating to other water systems.
- There are plastic partition boards in between washing section and entrance section. It is used to prevent water in the washing section from splashing out onto the entrance section.
Water Circulating System

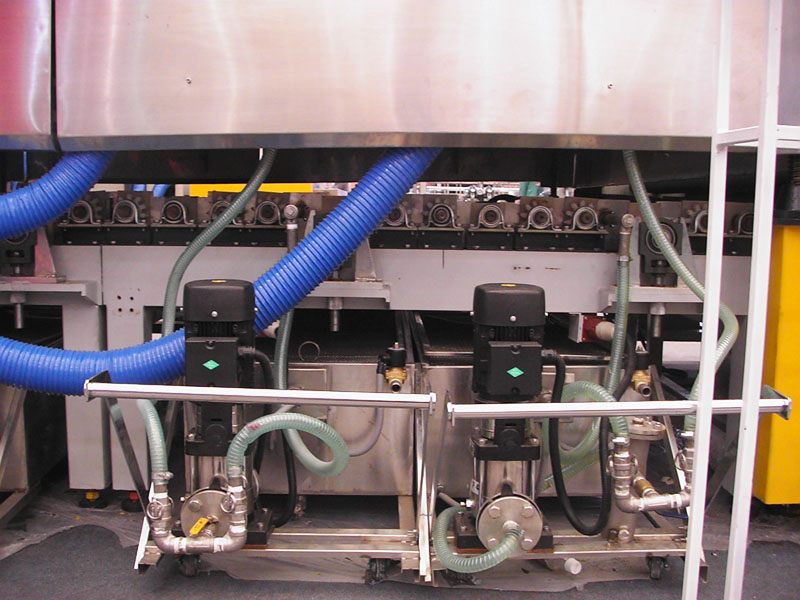

- This system is incorporated with the washing section. It consists of stainless steel water tanks, water pumps, water filters, water heaters and water temperature controllers.
- Each of the water tanks comes with wheels for easy pulling out for fresh water replacement and maintenance.
Drying Section
- After washing, the glass is conveyed to this drying section. There are air knives to allow air blowing the water off the glass and dry it thoroughly.
- Each pair of air knife is comprised of one upper and one lower air knife
- The air knives are put transversely and/or diagonally across the glass travel direction.
- The drying section is covered by steel panel insulated with noise depression designed.
Air Blowing System
This air blowing system is incorporated with the drying section. It generates proper air quantity and air pressure to dry the glass through air ducts and air knives.
The system consists of air blower, sound-proof chamber, air filters and steel structure. The steel structure is floor mounted and air blower is put on top of the steel structure.
