Template Shape Glass Cutting Machine

Features & Specs

CUT-SP-I

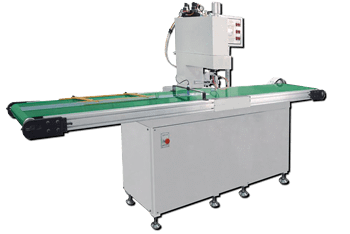

Advance Automatic Round Glass Cutting Machine with Conveyor Belt

CUT-SP-I Advance Automatic Round Glass Cutting Machine with Belt Conveyor Automatic Continuous Round Glass Cutting

Shape Glass Pneumatic Template Cutting Device Design to Cut Circular Mirror

FEATURES

  • Conveyor Belt Type Design with Micro-Processor Control
  • Automatic Scoring Round & Circular Glass in Seconds
  • Spring Free Cutting Wheels Exerted on Glass by Pneumatic Pressure with Buffer
  • Automatic Glass Feeding by Means of Belt Conveyor
  • Least Labor Force while Massive Productivity
  • High Precision Durable Cutting Wheels

SPECIFICATIONS

Models CUT-SP-I-300
Max. Loaded Glass Size 300 x 1250 mm
Max. Cutting Diameter Φ 300
Glass Thickness 1.0 ~ 3.0 mm
Cutting Accuracy ± 0.2 mm
Production Capacity ~ 3000 pcs / hr (varied with diameter)
Compress Air Pressure ≤ 0.5 MPa
Power 1.5 KW
Voltage 220V / Single Phase / 50 Hz
Outer Dimension (W x L x H) 3000 x 600 x 1500 mm
Weight 400 kg
