Features & Specs
CUT-SP-G

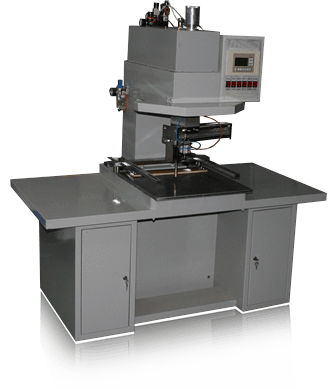

Advance Semi-Automatic Round & Optional Shape Glass Cutting Machine
Optional Shape Glass Cutting with Template Fixture
FEATURES
- Table Type Design with Micro-Processor Control
- Automatic Round Scoring Glass in Seconds
- Spring Free Cutting Wheels Exerted on Glass by Pneumatic Pressure with Buffer
- High Precision Durable Cutting Wheels
- Optional Shape Cut with Template Available
SPECIFICATIONS
| Models | CUT-SP-G-450 | CUT-SP-G-700 | ||
| Max. Loaded Glass Size | 450 x 450 mm | 450 x 450 mm | ||
| Cutting Size | Round Glass | Max. Diameter | Φ 450 mm | Φ 680 mm |
| Shape Glass (Optional) | Max. Diagonal | 450 mm | 680 mm | |
| Shape Restriction | Difference of Length & Width ≯150 mm | Difference of Length & Width ≯150 mm | ||
| Cutting Accuracy (mm) | 1.0 ~ 12 mm | 1.0 ~ 12 mm | ||
| Cutting Accuracy | ± 0.1 mm | ± 0.1 mm | ||
| Production Capacity | Round | ~ 2500 pcs / hr (varied with diameter) | ~ 2500 pcs / hr (varied with diameter) | |
| Shape (Optional) | ~ 1200 pcs / hr (varied with size & shape) | ~ 1200 pcs / hr (varied with size & shape) | ||
| Compress Air Pressure | ≤ 0.5 MPa | ≤ 0.5 MPa | ||
| Power | 1 KW | 1 KW | ||
| Voltage | 220V / Single Phase / 50 Hz | 220V / Single Phase / 50 Hz | ||
| Outer Dimension (W x L x H) | 1500 x 750 x 1700 mm | 1500 x 1000 x 1700 mm | ||
| Weight | 400 kg | 500 kg | ||
