Template Shape Glass Cutting Machine

Features & Specs

CUT-SP-E

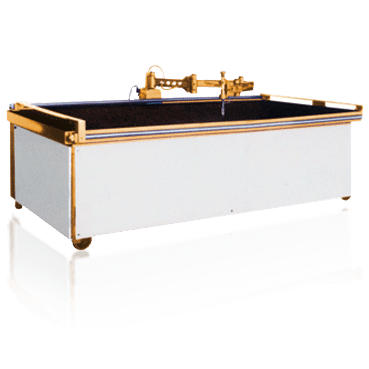

Shape Glass Pneumatic Template Cutting Machine

Shape Glass Pneumatic Template Cutting Machine Shape Glass Pneumatic Template Cutting Machine Shape Glass Pneumatic Template Cutting Machine Shape Glass Pneumatic Template Cutting Machine

FEATURES

  • Table Type Design
  • High Density Moisture Proof Board Table Bed covered by High Quality Scratched Proof Felt
  • Air Holes on Table for Glass Floatation during Loading & Unloading by means of Air Blower
  • Air Blower Reversely Rotates Generating Vacuum to Hold Glass Firmly in Position during Scoring
  • Long Extension Swinging Arm available in Large Models
  • Freely Moved Arm Guides Cutting Head Perform Cutting in Any Shape Along Template
  • Shape Cut Medium Large Glass
  • Cutting Wheels Exerted Pressure on Glass by Pneumatic
  • Pneumatic Cylinder Provides Steady Cutting Pressure Especially when Turing at Corners
  • Fast Scoring with Less Labor Force
  • Score Shape in Seconds
  • High Precision Durable Cutting Wheels
  • Templates Changeover in Minutes
  • Could be Incorporated to Upstream Loading Table & Downstream Breakout Table, Grinding Machine, Washing Machine & Powdering Machine to form a Complete Auto glass Preprocessing Line
Shape Glass Pneumatic Template Cutting Machine

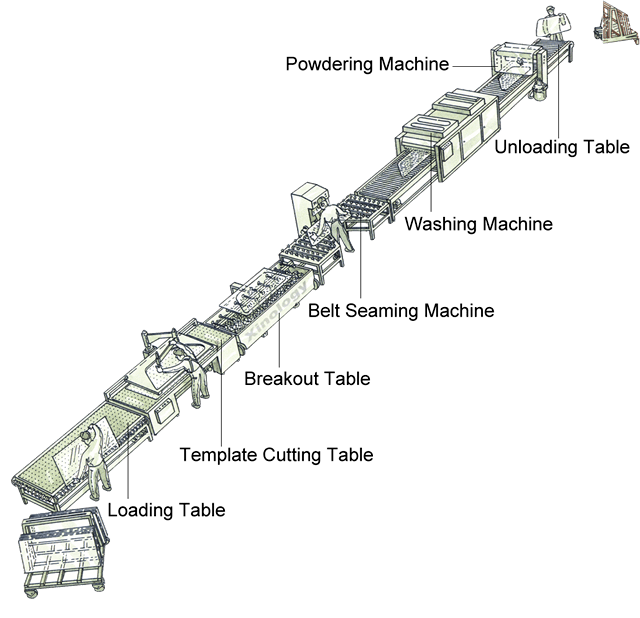

Template Cutting Machine could be incorporated to other Machines to form a Complete Automotive Glass Pre-Processing Line for Higher Productivity & Less Labor Force

SPECIFICATIONS

Models CUT-SP-E-0607 CUT-SP-E-0708 CUT-SP-E-0810 CUT-SP-E-0812 CUT-SP-E-0815 CUT-SP-E-0818 CUT-SP-E-0820 CUT-SP-E-0822
Max. Glass Size (mm) 600 x 700 700 x 800 800 x 1000 800 x 1200 800 x 1500 800 x 1800 800 x 2000 800 x 2200
Glass Thickness (mm) 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15
Cutting Accuracy ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm
Compress Air Consumption (m3/hr) ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3
Compress Air Pressure (MPa) 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4
Power (KW) 0.75 0.75 1.1 1.1 1.1 1.1 1.5 1.5
Outer Dimension (W x L x H)  (m) 0.9 x 1.1 x 1.1 1.0 x 1.2 x 1.1 1.1 x 1.4 x 1.1 1.1 x 1.6 x 1.1 1.1 x 1.9 x 1.1 1.1 x 2.2 x 1.1 1.1 x 2.4 x 1.1 1.1 x 2.6 x 1.1
Weight (kg) 530 560 600 650 700 750 800 850
Models CUT-SP-E-1015 CUT-SP-E-1018 CUT-SP-E-1022 CUT-SP-E-1026 CUT-SP-E-1315 CUT-SP-E-1318 CUT-SP-E-1322 CUT-SP-E-1326 CUT-SP-E-1622 CUT-SP-E-1626
Max. Glass Size (mm) 1000 x 1500 1000 x 1800 1000 x 2200 1000 x 2600 1300 x 1500 1300 x 1800 1300 x 2200 1300 x 2600 1600 x 2200 1600 x 2600
Glass Thickness (mm) 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15 1.5 ~ 15
Cutting Accuracy ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm ± 0.2 mm
Compress Air Consumption (m3/hr) ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3 ~ 0.3
Compress Air Pressure (MPa) 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4 0.2 ~ 0.4
Power (KW) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.2
Outer Dimension (W x L x H)  (m) 1.3 x 1.9 x 1.1 1.3 x 2.2 x 1.1 1.3 x 2.6 x 1.1 1.3 x 3.0 x 1.1 1.6 x 1.9 x 1.1 1.6 x 2.2 x 1.1 1.6 x 2.6 x 1.1 1.6 x 3.0 x 1.1 1.9 x 2.6 x 1.1 1.9 x 3.0 x 1.1
Weight (kg) 760 820 900 980 810 880 1000 1100 1230 1500
