Template Shape Glass Cutting Machine

Features & Specs

CUT-SP-K

Innovative Automatic Round & Optional Shape Glass Cutting Machine with Interactive Cross Cutting Head Movement Over Conveyor Belt

Interactive Cross Cut of CUT-SP-K Automatic Glass Mirror Shape Scoring Machine Minimises Glass Cutting Wastage

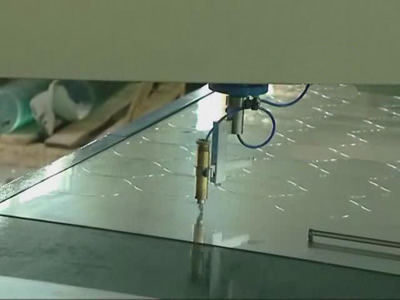

Mirror Cutting in Series Across Mirror Width Greatly Reduces Mirror Cutting Wastage

Cutting In Series Across Glass Width Greatly Reduces Cutting Wastage

Interactive Cross Cutting Movement Works Also on Mirror Shape Cutting with Template

Cross Cutting Movement Also Works for Shape Cutting with Template

Shape Glass Pneumatic Template Cutting Device
Shape Glass Pneumatic Template Cutting Device
Round Glass Manual Cutting Device

FEATURES

  • Interactive Cross Cutting Bridge Design
  • Cutting Head Cross Movement Over Conveyor Belt
  • Reduce Glass Cutting Wastage More Than 20%
  • Minimizes Glass Loading & Unloading, Thus Increases Productivity
  • Conveyor Belt Type Design with Micro-Processor Control
  • Automatic Scoring Round & Optional Shape Glass in Seconds
  • Spring Free Cutting Wheels Exerted on Glass by Pneumatic Pressure with Buffer
  • Automatic Glass Feeding by Means of Belt Conveyor
  • Least Labor Force while Massive Productivity
  • High Precision Durable Cutting Wheels
  • Optional Shape Cut Available


Cut Shape or Round Mirrors in Seconds Design to Cut Circular Mirror
Automatic Interactive Cutting Head Travels Along Cutting Bridge During Mirror Cutting

SPECIFICATIONS

Models CUT-SP-K-630 CUT-SP-K-1400 CUT-SP-K-1600 CUT-SP-K-1700 CUT-SP-K-1900
Max. Loaded Glass Width 630 mm 1400 mm 1600 mm 1700 mm 1900 mm
Cutting Size Round Glass Max. Diameter Φ 280 mm Φ 400 mm Φ 400 mm Φ 400 mm Φ 400 mm
Shape Glass (Optional) Max. Diagonal 280 mm 400 mm 400 mm 400 mm 400 mm
Restriction Difference of Length & Width
Should be Less Than 150 mm		 Difference of Length & Width
Should be Less Than 150 mm		 Difference of Length & Width
Should be Less Than 150 mm		 Difference of Length & Width
Should be Less Than 150 mm		 Difference of Length & Width
Should be Less Than 150 mm
Glass Thickness 1.0 ~ 10 mm 1.5 ~ 10 mm 2.0 ~ 10 mm 2.0 ~ 10 mm 2.0 ~ 10 mm
Cutting Accuracy ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm
Production Capacity Round ~ 2500 pcs / hr
(varied with diameter)		 ~ 2500 pcs / hr
(varied with diameter)		 ~ 2500 pcs / hr
(varied with diameter)		 ~ 2500 pcs / hr
(varied with diameter)		 ~ 2500 pcs / hr
(varied with diameter)
Shape (Optional) ~ 1200 pcs / hr
(varied with size & shape)		 ~ 1200 pcs / hr
(varied with size & shape)		 ~ 1200 pcs / hr
(varied with size & shape)		 ~ 1200 pcs / hr
(varied with size & shape)		 ~ 1200 pcs / hr
(varied with size & shape)
Compress Air Pressure ≤ 0.5 MPa ≤ 0.5 MPa ≤ 0.5 MPa ≤ 0.5 MPa ≤ 0.5 MPa
Power 1.0 KW 1.2 KW 1.2 KW 1.5 KW 1.5 KW
Voltage 220V / Single Phase / 50 Hz 220V / Single Phase / 50 Hz 220V / Single Phase / 50 Hz 220V / Single Phase / 50 Hz 220V / Single Phase / 50 Hz
Outer Dimension (L x W x H) 3200 x 710 x 850 mm 3200 x 1550 x 850 mm 3200 x 1750 x 850 mm 3200 x 1900 x 850 mm 3200 x 2100 x 850 mm
Weight 400 kg 500 kg 600 kg 800 kg 1000 kg
