Solar Module Production Line

Overview

Process


  • Solar Cell Sorting Device
    SOLAR CELL CUTTING - Cut Standard Sizes of Solar Cell into Smaller Sizes if Necessary
    Solar Cell Storage Cart
    (1) SOLAR CELL SORTING - Sort Out Incoming Solar Cells According to Electrical Properties
    Semi-Automatic Interlink Strip Ribbon Drying Machine
    INTERLINK RIBBON & BUSBAR CUTTING & DRYING
  • |
  • Glass Vertical Storage Cart
    GLASS
    Serial Solar Cell Storage Rack
    (2) SINGLE & SERIAL SOLAR CELL ASSEMBLY & SOLDERING – Tabbiing, Stringing & Interconnecting
    EVA TPT Storage Cart
    EVA TPT CUTTING
  • |
  • Solar Module Horizontal Storage Cart
    (3) SOLAR MODULE ASSEMBLY & PRE-INSPECTION - Pile Up Solar Cells, EVA, TPT & Glass
  • |
  • Solar Module Inspection Rack
    (4) SOLAR MODULE FURTHER INSPECTION
  • |
  • Glass Vertical Storage Cart
    (5) SOLAR PANEL PRESSING & LAMINATING
  • |
  • Packing Table
    (6) SOLAR MODULE TRIMMING & INSPECTION
  • |
  • Silicon Sealing Machine
    (7) ALUMINUM PROFILE SEALING
  • |
  • Screw Driver Power Supply
    (8) ALUMINUM FRAME INSTALLING
  • |

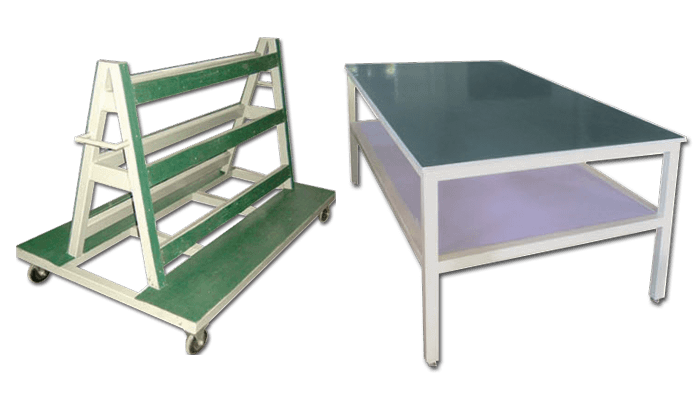

  • Junction Box Assembly Table
    (9) JUNCTION BOX ASSEMBLY
  • |
  • Photovoltaic Solar Module Final Inspection Device
    (10) FINAL INSPECTION
  • |
  • (11) PACKING
