SmartGlass (PDLC / Intelligent / Privacy / LC / Switch) Glass & Film

Features & Specs


Standard PDLC Film

Standard PDLC Film Always Sandwiched Between 2 Pcs of Glass

It is basic film which is usually assembled by ordinary glass laminating process with proper encapsulation materials such as EVA or PVB interlayer. That is to sandwich PDLC film in between two pieces of glass.

Switchlite Changes from Opaque to Transparent or Vice Versa in Instantaneously

Self Adhesive PDLC Film

This film is further developed base on standard PDLC film. Back side of the film is coated with self adhesive glue. When it is an existing glass such as windows and doors which are already installed for a while or even for years, replacement with newly made PDLC laminated glass may sometimes not be feasible. Self adhesive film is then the only solution. This film is designed for application on existing windows, glass doors and glass partition as well. It is stick directly on existing glass. No replacement of glass is required. Like the installation of ordinary window films, film installation is done on site. It does not require the glass to be removed. With simple tools and accessories, self adhesive PDLC film is attached to existing glass easily and turns it into smart privacy glass in minutes.

PDLC Film Back Coated with Protected Self Adhesive Glue Stick on Glass Easily
  • Fully DIY Simple to Install PDLC Film
  • No Extra Glass Required for Glass Lamination
  • Film Back Surface Coated with Self Adhesive Glue
  • Like Standard Film, Self Adhesive Film Delivered with Ready-To-Use Conductive Busbar & Copper Mesh for Wiring
  • Applicable on Existing Glass
  • Existing Glass Not Required to Take Out for Sticking
  • Leaves No Marks & Trace on Glass After Affixing
  • Fast & Easy Installation Like Ordinary Window Film
  • Requires Simples Tools & Accessories
  • No Machine or Oven Required

PDLC Film for Autoglass

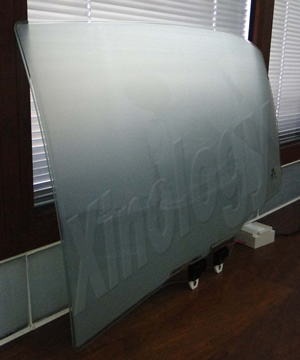

Smart Autoglass Keeps Privacy at OFF State Autoglass Can Also Be Easily Turned to Smart Window

We specially develop a special type of PDLC film and production process for automotive glass applications especially for sidelites which are required to rise and descend frequently. The production process requires no extra glass to cover the PDLC film. After processing, autoglass thickness is increased with not more than 1.8mm. The increased glass thickness allows sidelites moving freely up and down at automotive door slots. The special PDLC film and manufacturing process result in ultra bonding between glass and film. Film becomes an integral part of the auto glass and both components merge into an inseparable body. Customers are required to send us autoglass. We shall laminate PDLC film with autoglass and send back to customer. The delivered smart privacy autoglass is already well connected with electrical conductive busbars and copper mesh. Customer is just required to install automobile glass and wire it to vehicle battery. This arrangement is also applicable to any PDLC glass which requires ultra high bonding and meanwhile, single pane glass without doubling glass thickness.

Smart Autoglass Thickness Increased Not More Than 1.8mm
  • Special Film & Production Process For Ultra Bonding Applications
  • No Extra Glass Required During Processing
  • PDLC Autoglass with Only Single Pane of Glass
  • With Not More Than 1.8mm Increased in Thickness after Processing
  • Sidelites Move Up & Down Freely
  • Ultra Bonding Merges Glass & Film into an Inseparable Body
  • Buyer Delivers Us Glass & We Send Back PDLC Glass with Not More Than 1.8 mm Increased in Thickness
  • PDLC Glass Delivered with Ready-To-Use Conductive Bus Bar & Copper Mesh
  • Just Install the Glass into Automotive Doors & Wire to Car Battery
  • Turns Car Compartment into an Absolutely Private Area with Xinology Ultra Bonding Smart PDLC Film
  • Applicable in Any Projects with Glass Thickness (As Thin As Possible) & Ultra Bonding are Major Concerns
