Glass Handling & Transfering Tables & Conveyors

Features & Specs

Felt Tables

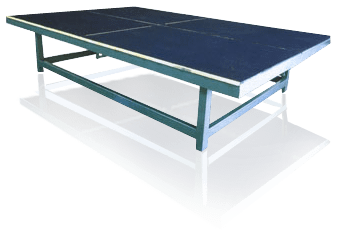

Felt Covered Glass Working Table for Glass Cutting or Any other Glass Processing  Jobs
  • Series GH-FT-D is Made of Sturdy Welded Tubular Steel Structure Painted with Top Quality Varnish
  • Non-Tilting Design
  • Working Table for Cutting or Any Other Jobs
  • Distortion Free Table Top
  • Table Top Covered by Non Scratch Durable Thick Felt
  • Standard Tables Comes Without Break Out Bars
Models GH-FT-D-1020 GH-FT-D-1525 GH-FT-D-2030 GH-FT-D-2537 GH-FT-D-3361
Max. Glass Size (mm) 1000 x 2000 1500 x 2500 2000 x 3000 2500 x 3700 3300 x 6100
Working Height(mm) 900 900 900 900 900
Weight (kg) 100 210 420 720 1700
Outer Dimensions (LxWxH) (m) 2.1 x 1 x 0.9 2.6 x 1.5 x 0.9 3.1 x 2 x 0.9 3.8 x 2.5 x 0.9 6.2 x 3.3 x 0.9
