Glass Handling & Transfering Tables & Conveyors

Features & Specs

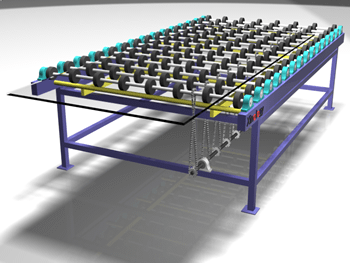

Motorized Horizontal Glass Rollers Conveyors

Anti-Slipping & Abrasive Proof Donut Wheels of Motorized Horizontal Glass Rollers Conveyors
  • GH-NT-A Series of is Made of Sturdy Welded Tubular Steel Painted with Top Quality Varnish
  • Anti-Slipping & Abrasive Proof Donut Wheels Mounted on Rollers
  • Electric Motorized Chain Driven Conveyor
  • Glass Travels Horizontally
  • Glass Convey Speed Adjustable by Speed Regulator
Models GH-NT-A-1020 GH-NT-A-1525 GH-NT-A-2030 GH-NT-A-2537 GH-NT-A-3361
Max. Glass Size (mm) 1000 x 2000 1500 x 2500 2000 x 3000 2500 x 3700 3300 x 6100
Max. Glass Loading (kg) 100 160 300 400 900
Working Height(mm) 900 900 900 900 900
Power (KW) 0.5 0.5 1 2 3
Weight (kg) 180 320 516 735 1600
Outer Dimensions (LxWxH) (m) 2.1 x 1 x 0.9 2.6 x 1.5 x 0.9 3.1 x 2 x 0.9 3.8 x 2.5 x 0.9 6.2 x 3.3 x 0.9
