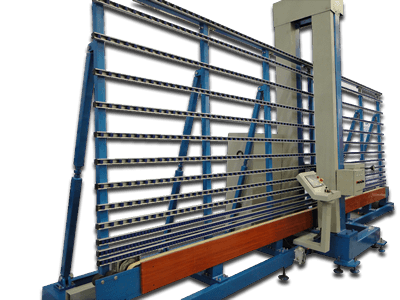

Vertical Glass Hole Drilling Machine



Drilling Spindles of GHD-V-2500-1 Hole Glass Driller Locate Holes Positions From One to Another Easier at Lesser Workload
  • NC numerical control GHD-V-NC2550-1 works with PLC & HMI touch panel operator interface
  • One pair of drilling spindles, front & rear double spindles, move up & down along vertical bridge automatically
  • Front & rear spindles forward & backward feeding powered by pneumatic
  • Drilling holes position is registered automatically
  • Drilling spindles move from one to next holes positions automatically
  • Process up to 5000 x 2500 mm glass
  • Holes positioning accuracy up to ± 0.50 mm
  • Concentricity precision of front & rear drills up to ± 0.10 mm
  • Drilling spindles up & down movement driven by servo motor
  • Glass horizontal traveling driven by servo motor
  • Spindles rotational speed regulated by frequency convertor
  • Center core drill water cooling
