Glass Tempering Furnace

Specifications

Horizontal Flat Glass Tempering Furnace with Single Heating Chamber
GTF-(F)-(xxxx)-1GTF-(F)-(xxxx)-1 Horizontal Flat Glass Tempering Furnace with Single Heating Chamber
Models Max. Flat Glass Size (mm) Available on Request
Width Length
GTF-(F)-(0612)-1 600 1200
GTF-(F)-(0815)-1 800 1500 Other Sizes
Combo Hot Air Convection
GTF-(FC)-(xxxx)-1
GTF-(F)-(1220)-1 1200 2000
GTF-(F)-(1225)-1 1200 2500
GTF-(F)-(1525)-1 1500 2500
GTF-(F)-(1530)-1 1500 3000
GTF-(F)-(1825)-1 1800 2500
GTF-(F)-(1830)-1 1800 3000
GTF-(F)-(1836)-1 1800 3600
GTF-(F)-(2025)-1 2000 2500
GTF-(F)-(2030)-1 2000 3000
GTF-(F)-(2036)-1 2000 3600
GTF-(F)-(2040)-1 2000 4000
GTF-(F)-(2236)-1 2200 3600
GTF-(F)-(2525)-1 2500 2500
GTF-(F)-(2530)-1 2500 3000
GTF-(F)-(2536)-1 2500 3600
GTF-(F)-(2540)-1 2500 4000
GTF-(F)-(2545)-1 2500 4500
GTF-(F)-(2550)-1 2500 5000
GTF-(F)-(2560)-1 2500 6000
GTF-(F)-(3050)-1 3000 5000
GTF-(F)-(3060)-1 3000 6000
GTF-(F)-(3580)-1 3500 8000
TopHorizontal Flat Glass Tempering Furnace with Double Heating Chambers
GTF-(F)-(xxxx)-2GTF-(F)-(xxxx)-2 Horizontal Flat Glass Tempering Furnace with Double Heating Chambers
Models Max. Flat Glass Size (mm) Available on Request
Width Length
GTF-(F)-(0612)-2 600 1200
GTF-(F)-(0815)-2 800 1500 Other Sizes
Combo Hot Air Convection
GTF-(FC)-(xxxx)-2
GTF-(F)-(1220)-2 1200 2000
GTF-(F)-(1225)-2 1200 2500
GTF-(F)-(1525)-2 1500 2500
GTF-(F)-(1530)-2 1500 3000
GTF-(F)-(1825)-2 1800 2500
GTF-(F)-(1830)-2 1800 3000
GTF-(F)-(1836)-2 1800 3600
GTF-(F)-(2025)-2 2000 2500
GTF-(F)-(2030)-2 2000 3000
GTF-(F)-(2036)-2 2000 3600
GTF-(F)-(2040)-2 2000 4000
GTF-(F)-(2236)-2 2200 3600
GTF-(F)-(2525)-2 2500 2500
GTF-(F)-(2530)-2 2500 3000
GTF-(F)-(2536)-2 2500 3600
GTF-(F)-(2540)-2 2500 4000
GTF-(F)-(2545)-2 2500 4500
GTF-(F)-(2550)-2 2500 5000
GTF-(F)-(2560)-2 2500 6000
GTF-(F)-(3050)-2 3000 5000
GTF-(F)-(3060)-2 3000 6000
GTF-(F)-(3580)-2 3500 8000
TopHorizontal Flat Glass Tempering Furnace with Continuous Heating Chamber
GTF-(F)-(xxxx)-CGTF-(F)-(xxxx)-C Horizontal Flat Glass Tempering Furnace with Continuous Heating Chamber
Models Max. Flat Glass Size (mm) Available on Request
Width Length
GTF-(F)-(0612)-C 600 1200
GTF-(F)-(0815)-C 800 1500 Other Sizes
Combo Hot Air Convection
GTF-(FC)-(xxxx)-C
GTF-(F)-(1220)-C 1200 2000
GTF-(F)-(1225)-C 1200 2500
GTF-(F)-(1525)-C 1500 2500
GTF-(F)-(1530)-C 1500 3000
GTF-(F)-(1825)-C 1800 2500
GTF-(F)-(1830)-C 1800 3000
GTF-(F)-(1836)-C 1800 3600
GTF-(F)-(2025)-C 2000 2500
GTF-(F)-(2030)-C 2000 3000
GTF-(F)-(2036)-C 2000 3600
GTF-(F)-(2040)-C 2000 4000
GTF-(F)-(2236)-C 2200 3600
GTF-(F)-(2525)-C 2500 2500
GTF-(F)-(2530)-C 2500 3000
GTF-(F)-(2536)-C 2500 3600
GTF-(F)-(2540)-C 2500 4000
GTF-(F)-(2545)-C 2500 4500
GTF-(F)-(2550)-C 2500 5000
GTF-(F)-(2560)-C 2500 6000
GTF-(F)-(3050)-C 3000 5000
GTF-(F)-(3060)-C 3000 6000
GTF-(F)-(3580)-C 3500 8000
TopHorizontal Flat Glass Tempering Furnace with Air Convection & Irradiation Heating
GTF-(C-F)-(xxxx)
GTF-(C-F)-(xxxx)-1 Horizontal Flat Glass Temper Furnace with Combo Air Convect & Irradiate Heat

GTF-(C-F)-(xxxx)-1 Combo Convection & Irradiation Furnace		 GTF-(C-F)-(xxxx)-2 Two Heating Chambers with 1st Convection & 2nd Irradiation

GTF-(C-F)-(xxxx)-2 Two Heating Chambers with 1st Convection & 2nd Irradiation
Models Max. Flat Glass Size (mm) Available on Request
Width Length
GTF-(F)-(0612)-1 600 1200
GTF-(F)-(0815)-1 800 1500 Other Sizes
Double Combo Heating Chambers
Continuous Combo Heating Chambers
GTF-(F)-(1220)-1 1200 2000
GTF-(F)-(1225)-1 1200 2500
GTF-(F)-(1525)-1 1500 2500
GTF-(F)-(1530)-1 1500 3000
GTF-(F)-(1825)-1 1800 2500
GTF-(F)-(1830)-1 1800 3000
GTF-(F)-(1836)-1 1800 3600
GTF-(F)-(2025)-1 2000 2500
GTF-(F)-(2030)-1 2000 3000
GTF-(F)-(2036)-1 2000 3600
GTF-(F)-(2040)-1 2000 4000
GTF-(F)-(2236)-1 2200 3600
GTF-(F)-(2525)-1 2500 2500
GTF-(F)-(2530)-1 2500 3000
GTF-(F)-(2536)-1 2500 3600
GTF-(F)-(2540)-1 2500 4000
GTF-(F)-(2545)-1 2500 4500
GTF-(F)-(2550)-1 2500 5000
GTF-(F)-(2560)-1 2500 6000
GTF-(F)-(3050)-1 3000 5000
GTF-(F)-(3060)-1 3000 6000
GTF-(F)-(3580)-1 3500 8000
TopUltra Thin & Small Glass Tempering Furnace
GTF-(T-F)-(xxxx)-1GTF-(M-F)-(xxxx)-1 Mini Glass Tempering Furnace for Ultra Thin Glass & Extremely Small Glass
Models Max. & Min. Glass Sizes (mm) Min. Glass Thickness (mm)
GTF-(T-F)-(xxxx)-1 To Be Advised To Be Advised
TopHorizontal Glass Right Angle Bending & Tempering Furnace
GTF-(RAB)-(xxxx)
GTF-(RAB)-(xxxx)-1 Horizontal Right Angle Glass Bend & Temper Furnace with Single Chamber

GTF-(RAB)-(xxxx)-1 Single Heating Chamber		 GTF-(RAB)-(xxxx)-2 Right Angle Glass Bending & Tempering Furnace with Double Heating Chambers

GTF-(RAB)-(xxxx)-2 Double Heating Chambers
ModelsModels Max. Glass Size (mm) Available on Request
Width Length
GTF-(RAB)-(2510)-1 2500 1000 Other Sizes
Double Heating Chambers
TopVertical Glass Bending & Tempering Furnace
GTF-(VB)-(xxxx)-1GTF-(VB)-(xxxx)-1 Vertical Glass Bending & Tempering Furnace
Models Max. Glass Size (mm) Available on Request
Width Length
GTF-(VB)-(1508)-1 1500 800 Other Sizes
Double Heating Chambers
GTF-(VB)-(2212)-1 2200 1200
TopHorizontal Glass Flat & Transverse Bending & Tempering Furnace (without Large Flat Tempering Section)
GTF-(TB)-(xxxx+xx)-1
GTF-(TB)-(xxxx+xx)-1 Horizontal Glass Flat & Traverse Bend & Temper Furnace(wo Large Flat Temper Section)

For Small Bend Glass		 GTF-(TB)-(xxxx+xx)-1 Horizontal Glass Flat & Transverse Bending & Tempering Furnace for Large Bend Glass

For Large Bend Glass
Models Max. Glass Size (mm) Min. Radius of Curvature (mm) Available on Request
Flat Bend
Width Length Width Length
GTF-(TB)-(1508+08)-1 1500 800 1500 800 430 Other Sizes
Other Radius of Curvature
GTF-(TB)-(1510+10)-1 1500 1000 1500 1000 480
GTF-(TB)-(1530+30)-1 1500 3000 1500 3000 1200
GTF-(TB)-(2008+08)-1 2000 800 2000 800 450
GTF-(TB)-(2012+12)-1 2000 1200 2000 1200 550
GTF-(TB)-(2030+30)-1 2000 3000 2000 3000 1200
GTF-(TB)-(2036+36)-1 2000 3600 2000 3600 1500
GTF-(TB)-(2510+10)-1 2500 1000 2500 1000 480
GTF-(TB)-(2512+12)-1 2500 1500 2500 1200 550
GTF-(TB)-(2515+15)-1 2500 1500 2500 1500 900
GTF-(TB)-(2536+36)-1 2500 3600 2500 3600 1500
TopHorizontal Glass Flat & Transverse Bending & Tempering Furnace (with Large Flat Tempering Section)

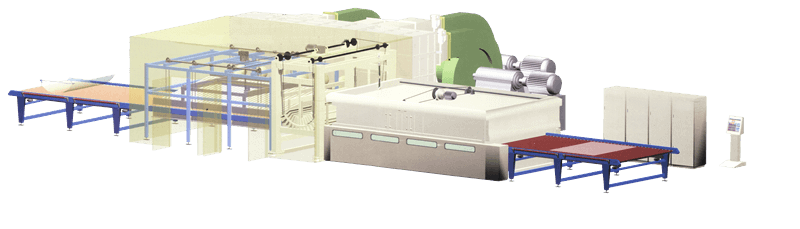

GTF-(FTB)-(xxxx+xx)-1GTF-(FTB)-(xxxx+xx)-1 Horizontal Glass Flat & Traverse Bend & Temper Furnace (with Large Flat Temper Section)
Models Max. Glass Size (mm) Min. Radius of Curvature (mm) Available on Request
Flat Bend
Width Length Width Length
GTF-(FTB)-(1508+08)-1 1500 800 1500 800 430 Other Sizes
Other Radius of Curvature
GTF-(FTB)-(1530+10)-1 1500 3000 1500 1000 480
GTF-(FTB)-(2010+08)-1 2000 1000 2000 800 450
GTF-(FTB)-(2015+08)-1 2000 1500 2000 800 450
GTF-(FTB)-(2030+08)-1 2000 3000 2000 800 450
GTF-(FTB)-(2036+08)-1 2000 3600 2000 800 450
GTF-(FTB)-(2036+12)-1 2000 3600 2000 1200 550
GTF-(FTB)-(2510+10)-1 2500 1000 2500 1000 480
GTF-(FTB)-(2515+12)-1 2500 1500 2500 1200 550
GTF-(FTB)-(2536+15)-1 2500 3600 2500 1500 900
TopHorizontal Glass Longitudinal Bending & Tempering Furnace
GTF-(LB)-(xxxx)-1GTF-(LB)-(xxxx)-1 Horizontal Glass Longitudinal Bending & Tempering Furnace
Models Max. Glass Size (mm) Min. Radius of Curvature (mm) Available on Request
Bend
Width Length
GTF-(LB)-(1525)-1 1500 2500 700 Other Sizes
Other Radius of Curvature
GTF-(LB)-(1530)-1 1500 3000 700
GTF-(LB)-(2025)-1 2000 2500 800
GTF-(LB)-(2030)-1 2000 3000 800
GTF-(LB)-(2036)-1 2000 3600 800
GTF-(LB)-(2525)-1 2500 2500 1000
GTF-(LB)-(2530)-1 2500 3000 1000
GTF-(LB)-(2536)-1 2500 3600 1000
GTF-(LB)-(3036)-1 3000 3600 1500
TopHorizontal Glass Flat & Longitudinal Bending & Tempering Furnace
GTF-(F+LB)-(xxxx+xx)-1GTF-(F+LB)-(xxxx+xx)-1 Horizontal Glass Flat & Longitudinal Bending & Tempering Furnace
Models Max. Glass Size (mm) Min. Radius of Curvature (mm) Available on Request
Flat Bend
Width Length Width Length
GTF-(F+LB)-(1525+25)-1 1500 2500 1500 2500 700 Other Sizes
Other Radius of Curvature
GTF-(F+LB)-(1530+30)-1 1500 3000 1500 3000 700
GTF-(F+LB)-(2025+25)-1 2000 2500 2000 2500 800
GTF-(F+LB)-(2030+30)-1 2000 3000 2000 3000 800
GTF-(F+LB)-(2036+36)-1 2000 3600 2000 3600 800
GTF-(F+LB)-(2040+36)-1 2000 4000 2000 3600 800
GTF-(F+LB)-(2525+25)-1 2500 2500 2500 2500 1000
GTF-(F+LB)-(2530+30)-1 2500 3000 2500 3000 1000
GTF-(F+LB)-(2536+36)-1 2500 3600 2500 3600 1000
GTF-(F+LB)-(2540+36)-1 2500 4000 2500 3600 1000
GTF-(F+LB)-(2545+36)-1 2500 4500 2500 3600 1000
GTF-(F+LB)-(2550+36)-1 2500 5000 2500 3600 1000
GTF-(F+LB)-(2560+36)-1 2500 6000 2500 3600 1000
GTF-(F+LB)-(3050+36)-1 3000 5000 3000 3600 1500
GTF-(F+LB)-(3060+36)-1 3000 6000 3000 3600 1500
TopHorizontal Glass Flat & Longitudinal Bending & Tempering Furnace
GTF-(FTB+LB)-(xxxx+xx+xx)-1GTF-(FTB+LB)-(xxxx+xx+xx)-1 Horizontal Glass Flat & Traverse & Longitudinal Bend & Temper Furnace
Models Max. Glass Size (mm) Min. Radius of Curvature (mm) Available on Request
Flat Transverse Bend Longitudinal Bend Transverse Bend Longitudinal Bend
Width Length Width Length Width Length
GTF-(FTB+LB)-(1508+08+25)-1 1500 800 1500 800 1500 2500 430 700 Other Sizes
Other Radius of Curvature
GTF-(FTB+LB)-(1530+10+30)-1 1500 3000 1500 1000 1500 3000 480 700
GTF-(FTB+LB)-(2010+08+25)-1 2000 1000 2000 800 2000 2500 450 800
GTF-(FTB+LB)-(2030+08+36)-1 2000 3000 2000 800 2000 3600 450 800
GTF-(FTB+LB)-(2036+08+36)-1 2000 3600 2000 800 2000 3600 450 800
GTF-(FTB+LB)-(2036+12+36)-1 2000 3600 2000 1200 2000 3600 550 800
GTF-(FTB+LB)-(2515+12+36)-1 2500 1500 2500 1200 2500 3600 550 1000
GTF-(FTB+LB)-(2536+15+36)-1 2500 3600 2500 1500 2500 3600 900 1000
TopHorizontal Glass V Shape Bending & Tempering Furnace
GTF-(LBV)-(xxxx)-1GTF-(LBV)-(xxxx)-1 Horizontal Glass V Shape Bending & Tempering Furnace
Models Max. Glass Size (mm) Min. Radius of Curvature (mm) Available on Request
Width Length
GTF-(LBV)-(1520) 1500 2000 200 Other Sizes
GTF-(LBV)-(2030) 2000 3000 200
TopHorizontal Glass Mould Bending & Tempering Furnace
GTF-(MB)-(xxxx)GTF-(MB)-(xxxx) Horizontal Glass Mould Bending & Tempering Furnace
Models Max. Glass Size (mm) Available on Request
Width Length
GTF-(MB)-(1520) 1500 2000 Other Sizes
GTF-(MB)-(2030) 2000 3000
