Rotating Table For Sealing Application

Features & Specs

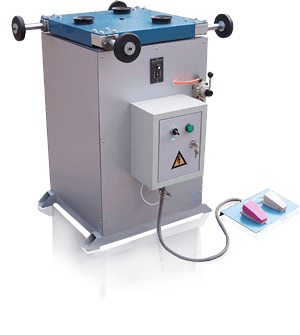

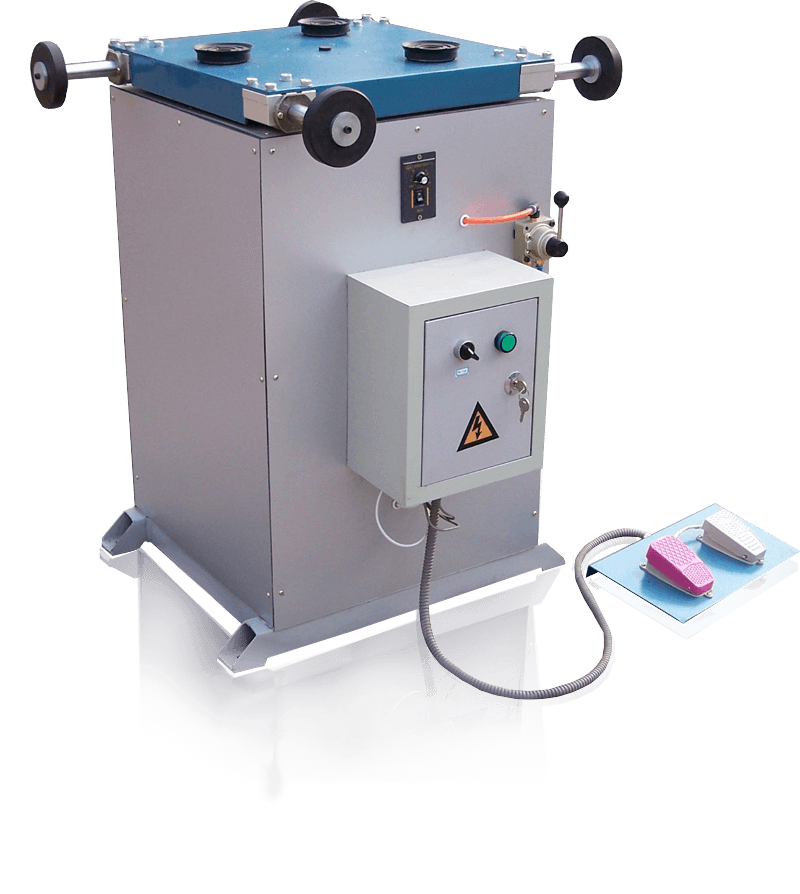

IG-RT is specially design to apply sealant around insulated glass edges in easier and faster ways with better seal and better looking.


Rotating Table Top

It is a rotating metal structure panel painted with varnish. There are two ways to control rotation by means of foot pedals. It could rotate continuously in 360 degrees. It could also rotate step by step. Table top could be raised up or lower down according to operator convenience. There are vacuum suction cups to hold glass in position during sealing. There are four supporting rolls at the end of four extendable arms which are withdrawn inside table top. When sealing large pane of insulated glass, four extension arms are elongated until arm lengths are long enough to hold glass in position.

Table Stand

It is a metal structure table stand design painted with varnish. Table top could rotate.


A motor and a gear reducer are hidden beneath the table. It is used to drive and rotate the table top in proper speed.

Vacuum Pump

A vacuum pump is hidden beneath the table. It is used to create vacuum suction power to prevent glass from slipping during sealing.

Lifting system

A lifting mechanism is hidden beneath the table. It is used to lift up or lower down rotating table top according to operator convenience.


Compact control panel is mounted on table side for easy operation.


Model IG-RT
Max. Glass Size 2000 x 2000 mm
Min. Glass Size 200 x 200 mm
Rotating Speed 9 RPM
Compress Air 0.5 ~ 0.8 MPa
Voltage 380V / 3 Phase / 50Hz
(others on request)
Power 0.37 KW
