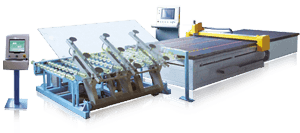

Automatic Glass Cutting Machines

Overview

Classification

Series CUT-AUTO-A CUT-AUTO-A CUT-AUTO-B CUT-AUTO-B CUT-AUTO-C CUT-AUTO-C
Automatic Cutting Shape & Straight Shape & Straight Shape & Straight
Tables Board covered by Felt Full Width Rubber Conveyor Belt Board covered by Felt (Metal for Optional Ultra Thin Glass)
Air Floatation Table Yes NA Yes
Glass Thickness 2 ~ 19 mm 1.8 ~ 6 mm 1 ~ 12 mm
Cutting Speed Max. 120 m/min. Max. 90 m/min. Max. 30 m/min.
Glass Sizes 2500x3700 / 3300x6100 mm 800x1830 / 1200 x 2250 mm 400x550 / 700x700 / 1100x1200 / 1200x1700 mm
