Automatic Glass Cutting Machines

Features & Specs

CUT-AUTO-A-L3C

Automatic Glass Cutting Machines for Large & Jumbo Glass

  • Features
  • Specifications

Features

CUT-AUTO-A-L3C
  • Automatic Precise Shape & Straight Cutting of Glass
  • Automatic Single Side Glass Loading Machine with Vacuum Suction Cups

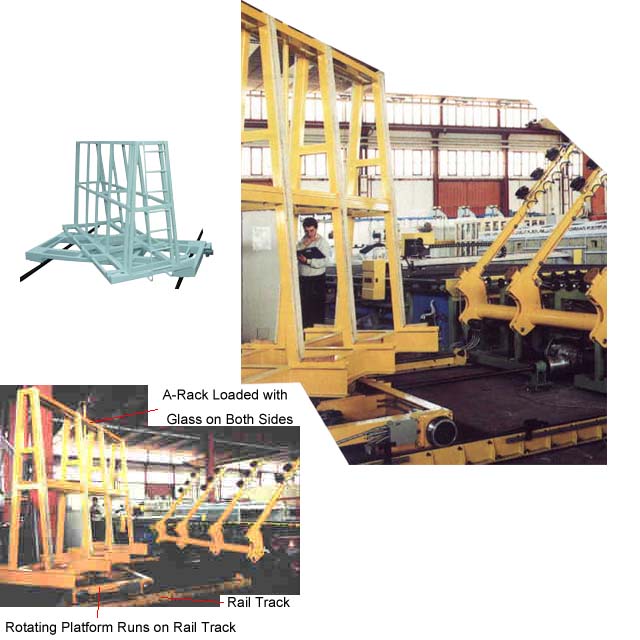

  • Glass A-Rack Loaded on Rotating Platform Minimizing Glass Stock Sheets Changing Time
  • Glass Sheets on One Side being Loaded & Cut while Next Glass Sheets Loaded another Side
  • Individual Air Floating Breakout Table
  • Heavy Duty Electro welded Tubular Steel Structure with Anti-Rust Painting
  • X-, Y-, Z-Axes AC Servo Motors with Drivers
  • Automatic Conveyor Belts Bring Glass in & out of Cutting Machine
  • Optimization Software Minimizes Cutting Wastage
  • User Friendly Operator Interface
  • Air Floating Cutting Table covered by Felt
  • Automatic Cutting Wheel Lubricant Feeding

Specifications

CUT-AUTO-A-L3C
Models CUT-AUTO-A-L3C-2537 CUT-AUTO-A-L3C-3160
Max. Glass Size 2500 x 3700 mm 3100 x 6000 mm
Glass Thickness 3 ~ 19 mm 3 ~ 19 mm
Cutting Speed Max. 120 m/min. Max. 120 m/min.
Cutting Tolerance ±0.25 / 2000mm ±0.25 / 2000mm
Power 25 KW 29 KW
Voltage 380V / 3 phases / 50Hz 380V / 3 phases / 50Hz
Outer Dimensions (L x W x H) 13200 x 3800 x 920 mm 21200 x 4800 x 920 mm
