Glass Sandblasting Machines

Features & Specs

Horizontal Glass Sandblasting Machine

Models SBM-H-A Large Size Horizontal Sandbasting Machine SBM-H-BAutomatic Sandblast Machine with Multi Blast Nozzles SBM-H-CSBM-H-C Horizontal Glass Sandblasting Machines Operated Free of Air Compressor SBM-H-DAutomatic Water Sandblasting Machine for Glass
Blasting Process Air Blasting Air Blasting Air Free Rotating Steel Blades Air Free Rotating Disc Abrasive with Water
Dust Separating Process Cyclone Bags Filter Bags Filter N/A

SBM-H-C

Highlights

Revolutionary Blasting Process By Airless High Speed Rotating Blades

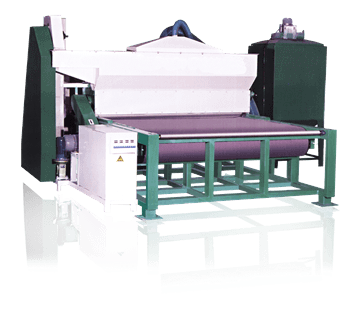

SBM-H-C Horizontal Glass Sandblasting Machines Operated Free of Air Compressor
  • SBM-H-C glass sandblasting machines automatically produces sandblast glass horizontally
  • Airless blasting process free of compress air
  • No blast guns and blast nozzles are required
  • Abrasive blasting by revolutionary high speed rotating flat steel blades
  • Flat steel blades rotates & accelerate abrasives impacting on glass at high velocity
  • Twin screws homogenizer provides uniform abrasive density when abrasives fall down to blast cabin
  • Bucket elevator lifts up & recycle abrasive minimizing operating cost
  • Easy loading of abrasive in tank under flat belt conveyor
  • Fine adjustable abrasive amount
  • Flat Belt conveyor adjusted with infinite speed regulator
  • Environmental friendly dust collection system provides dust free working area
  • Low noise pollution
  • No investment in air compressor system

Principle

Rotating blades are the core heart of SBM-H-C automatic sandblasting machine. This innovative process is completely free of compress air. Instead of vacuum in traditional air blasting process, abrasives are accelerated by rotating flat blades. When rotating blades get in touch with abrasive physically, the blades heavily hit abrasives which then gains enormous energy. This energy is transformed to momentum energy. Due to its light weight, abrasive travels at ultra high velocity downwards impacting on glass surface. Fine blasted surface is then obtained with this revolutionary airless blasting process.

Description

General

SBM-H-C glass sandblasting machine is a closed loop system consisting of several sections.

Sophisticated Design Ensures High Efficient Productivity with Automatic Recycling
  • Blast Cabin
  • Rotating Blades System
  • Abrasive Collecting Tank
  • Bucket Elevating Recycling System
  • Abrasive Storage
  • Twin Screws Homogenizer
  • Abrasives Bags Filter Separating System
  • Dust Collection
  • Flat Belt Conveying System
  • Control System

Blast Cabin

It is a well sealed structure where sand blasting is taken place. Abrasive proof materials and surface treatments enables cabin durable and resistant to abrasives. There are tiny openings at both sides of blast cabin. They allow glass to go in and out. These tiny inlet and outlet openings are specially sealed avoiding abrasives and dust from escaping.

Rotating Blades System

Revolutionary Airless Rotating Steel Blades Hits Abrasives Impacting On Glass At High Velocity

This rotating system is shielded inside blast cabin. Several pieces of steel blades are well joint together to form a turbine-like structure free of rotation. Driven by durable high speed motor, steel blades rotate freely at high RPM. When abrasives fall down and touch steel blades, rotating steel blades heavily hit abrasives which then travel in high velocity downwards. Abrasives eventually impact on glass traveling on flat belt conveyer underneath.

Abrasive Collecting Tank

The tank is situated beneath at exit of flat belt conveyer. It is used to collect excessive abrasive left on flat belt and glass surface after blasting. After glass is sandblasted and travels to exit of belt conveyor, remaining abrasives left on glass surface are removed onto flat belt. These abrasives, together with excessive abrasive left on flat belt, are then conveyed upside down backwards to entry section. There are traverse brushes beneath flat belt but right above abrasive collecting tank. Brushes remove abrasives from upside down belt onto the tank by means of gravity. Virgin abrasive is added in this tank when necessary.

Bucket Elevating & Recycling System

This elevator is well sealed in a standalone tower located next to blast cabin. Several buckets move up and down like a merry-go-round. Abrasives inside abrasive collecting tank are carried upwards by buckets to subsequent separating system.

Abrasives Bags Filter Separating System

It is a standalone structure. Dust separation is achieved by means of bags filtering. Bags filtering is a very high efficient way to capture reusable abrasives from disposal dust. During sand blasting, two types of contaminants are generated.

  • a) Glass powder physically eroded from glass surface.
  • b) Abrasives which become smaller in size or losing sharp edges after impacting on glass. These shattered abrasives are no more helpful for blasting.

Remaining abrasives are still large in sizes with sharp edges. They are reusable and are separated from dust by bags filtering system. Dusts are smaller and they pass through bags tiny holes. Reusable abrasives are relatively larger in size and they are too large to pass through bags tiny holes.

Abrasives Storage

This tank structure locates above blast cabin. All filtered usable abrasives arrive at this storage and are ready for homogenous process.

Twin Screws Homogenizer

This screws system lies inside abrasive storage above rotating blades. Screws are driven by durable motor. Abrasives inside abrasive storage are not homogenous enough for adequate blasting. When twin screws are rotating, they transform and make abrasives uniform when abrasives accessing through the screws. Consistent abrasive density is then obtained. Abrasive falls down uniformly like a water fall but with well controlled layer and amount. This is very helpful for a fine exquisite glass surface.

Dust Collection

After separating, usable abrasives are recycled and are brought back for blasting again. Non-usable abrasive and dust are eventually collected in this dust collector.

Flat Belt Conveying System

It consists of inlet, main and exit conveyors. Main conveyor is inside blast cabinet. Glass is loaded on inlet conveyor. Motorized driven conveyors bring glass into blast cabinet automatically. Glass eventually comes out from exit conveyor. Belt is abrasive proof. Speed is adjustable. There are brushes beneath belt at exit end. The brushes remove all dust remaining on flat belt thoroughly leaving a clean belt surface for next glass loading.

Control System

Operations are access from this control panel. All electrical and electronics parts and components are carefully selected.

Specifications

Models SBM-H-B-1200 SBM-H-B-1600 SBM-H-B-2000 SBM-H-B-2200 SBM-H-B-2500
Max. Sandblast Width (mm) 1200 1600 2000 2200 2500
Glass Thickness (mm) 2 ~ 25
Glass Travel Speed (m/min.) 0 ~ 0.45
Principle Air free rotating steel blades
Virgin Abrasives Re-Filling Manually loaded in abrasives tank under belt conveyor
Dust Separation Bags filtration
Re-Usable Abrasives Collection Automatically collected in abrasives tank under belt conveyor
Re-Usable Abrasives Recycling Automatic
Dust Disposal Automatically collected in dust collection box
Abrasives Grit #36 ~ #46
Compress Air Nil
Voltage 380V / 3 Phase / 50 Hz (others on request)
Power (kW) 3.2 3.7 3.9 4 4.2
Weight (kg) 820 1300 1700 1900 2200
Outer Dimensions (L x H x W) (mm) 2700 x 1900 x 2200 3200 x 1900 x 2600 3740 x 1900 x 3000 4000 x 1900 x 3200 4300 x 1900 x 3500
