Structure
General
- Open Top Design with Front Sliding Doors Convenient for Glass Loading & Unloading
- Protective Guard Shed Around Machine
- Structural Welded Steel Movable Bridge
- Extremely Rigid Structure
- X-axis Driven Structure Attached to Bridge
- X-axis, Y-axis & Z-axis Driven by High Precision Ball Screw Sliding on Linear Slide Way
- C-axis for Rotation
- Y-axis & Y1-axis are Synchronous & Equipped with Servo Motors Driving by Slide Way & Ball Screw
- Easily Achieve High Acceleration & High Processing Speed Resulting Highest Production Throughput
- Maintains Highest Precision & Quality due to Lowest Mechanical Abrasion
Working Table
The table is made of aluminium alloy with enclosure preventing water from splashing. Table top is covered with high quality non-deformed anti-aging rubber. It is an open top design that operators can access to working table freely. Glass loading and unloading is very easy. There are holes on table top. Holes are connected to optional vacuum pump. Glass is hold firmly in position with vacuum during engraving. When processing done, vacuum is released allowing glass to be removed and unloaded.
Tool Station
Tool station is a tool centre where popular tools are kept. Working head travels to the station to pick up a certain tool for processing. When it is completed, working head travels back to station to return back the tool. Another tool is picked up for subsequent processing.
Spindle
It is core heart of glass grooving machine. High and constant torque output greatly improves processing speed and enables applications of versatile tooling in larger diameters. High precision structure and top quality parts and components. Thanks to sophisticated design, size and weight of spindle are minimized. This is to reduce inertia when spindle is rotating in high speed and thus, improve acceleration and deceleration of spindle.
Working Head
Tools & electro-spindle are installed and mounted on this working head. C-axis of working head rotates 360o freely.
Water Cooling System
It is used to cool down tools and work pieces. It comes with water pump and stainless steel water tank for recycling.

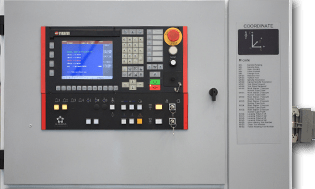

CNC System
Carefully selected professional numerical control system integrated with user friendly PC Windows operating interface. The system is equipped with CD-Rom and USB drivers, colour monitor, keyboard and mouse. The system comes with necessary port for accessing to internet. Remote diagnostic is available for real time monitoring. Programming edit is allowed when machine is in operation.
CAD/CAM Software
- Used for Drawing Design
- Support DXF Files
- Shape Drawings Designed by CAD or Input Files from CAD System
- Software Self Checks the Feasibility of Processing Automatically
- Images & Files Stored Management
- Optimization Software for Tool Route Minimizing Processing Time
- Route Simulation of Drawing Processing
Electrical System
- CE Certified
- Standalone Electrical Cabinet Separated from Machine
- Cooling Fan Keeps Electrical & Electronic Components Working at Optimum Environment
- Waterproof Electrical Connection
- High Precision Carbon Brushless Servo Motors
- Reliable Drivers
