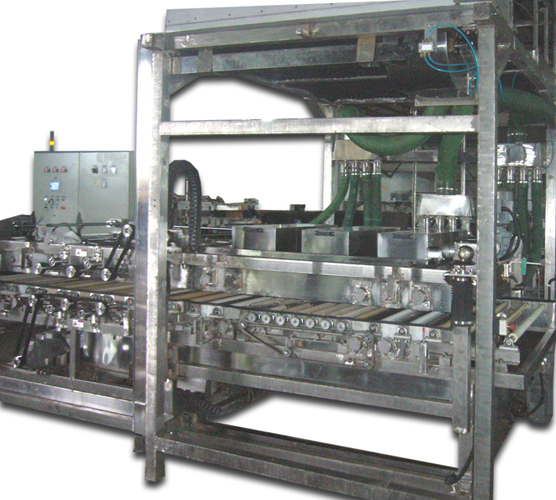

Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
OVERALL STRUCTURE |
|||||||
Structure & Frame | All Stainless Steel Extruded Aluminum Profile | Rust Proof Steel & Extruded Aluminum Profile | Rust Proof Steel & Extruded Aluminum Profile | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
ENTRANCE SECTION |
|||||||
Framework | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Bearing Support | Extruded Aluminum Profile | Extruded Aluminum Profile | Extruded Aluminum Profile | Rust Proof Steel with Nylon Block | Rust Proof Steel with Nylon Block | Rust Proof Steel with Nylon Block | Rust Proof Steel |
Roller Shaft Center | Steel covered by EPDM | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR |
Roller Shaft End | Stainless Steel | Stainless Steel | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Roller Shaft Bearing | NSK Stainless Steel or Equivalent | Chinese 1st Class Stainless Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel |
Roller Splash Guard | Nil | Nil | Nil | Nil | Nil | Nil | Nil |
Conveyor Protection | Stainless Steel Cover | Stainless Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Cover |
Partition between Entrance & Washing Sections Prevents Water Splashing | Yes | Yes | Yes | Yes | Yes | Yes | Nil |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
WASHING SECTION |
|||||||
Framework | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Bearing Support | Extruded Aluminum Profile | Extruded Aluminum Profile | Extruded Aluminum Profile | Rust Proof Steel with Nylon Block | Rust Proof Steel with Nylon Block | Rust Proof Steel with Nylon Block | Extruded Aluminum Profile |
High Pressure Water Rinsing prior to Cylindrical Brush | Yes | Yes | Yes | Nil | Nil | Nil | Nil |
Cylindrical Brush | 3 Pairs | 3 Pairs | 3 Pairs | 3 Pairs | 3 Pairs | 3 Pairs | 3 Pairs |
Cylindrical Brush Shaft Center | Steel Shaft covered by Nylon 66 | Steel Shaft covered by Nylon 66 | Steel Shaft covered by Nylon 66 | Steel Shaft covered by Nylon 66 | Steel Shaft covered by Nylon 66 | Steel Shaft covered by Nylon 66 | Steel Shaft covered by Nylon |
Cylindrical Brush Shaft End | Stainless Steel | Stainless Steel | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Cylindrical Brush Shaft Bearing | NSK Stainless Steel or Equivalent | Chinese 1st Class Stainless Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel |
Cylindrical Brush Shaft Splash Guard | Yes | Yes | Yes | Yes | Yes | Yes | Nil |
Bristle Compensation after Wear & Tear | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Solenoid Valve controls DI Water Flow | Yes | Yes | Yes | Yes | Nil | Nil | Nil |
Copper Sprinkle | Yes | Yes | Yes | Yes | Yes | Nil | Nil |
Roller Shaft Centre | Steel covered by EPDM | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR |
Roller Shaft End | Stainless Steel | Stainless Steel | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Roller Shaft Bearing | NSK Stainless Steel or Equivalent | Chinese 1st Class Stainless Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel |
Roller Splash Guard | Yes | Yes | Yes | Yes | Yes | Yes | Nil |
Internal Separating Partition between Cylindrical Brushes | 3mm Stainless Steel | 3mm Stainless Steel | 3mm Stainless Steel | 1.5mm Stainless Steel | 1.5mm Stainless Steel | Rust Proof Steel | Nil |
Parts in Direct Contact with Water | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Rust Proof Steel covered by Rubber | Rust Proof Steel |
Top Cover | Stainless Steel & Observation Window | Stainless Steel & Observation Window | Stainless Steel & Observation Window | Stainless Steel & Observation Window | Stainless Steel & Observation Window | Rust Proof Steel & Observation Window | Rust Proof Steel |
Conveyor Protection | Stainless Steel Cover | Stainless Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Fence | Rust Proof Steel Fence | Rust Proof Steel Cover | Rust Proof Steel Cover |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
DRYING SECTION |
|||||||
Framework | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Bearing Support | Extruded Aluminum Profile | Extruded Aluminum Profile | Extruded Aluminum Profile | Rust Proof Steel with Nylon Block | Rust Proof Steel with Nylon Block | Rust Proof Steel with Nylon Block | Rust Proof Steel |
Drying Source | High Power Air Blower with Air Knives | High Power Air Blower with Air Knives | High Power Air Blower with Air Knives | High Power Air Blower with Air Knives | High Power Air Blower with Air Knives | High Power Air Blower with Air Knives | 2 ~ 3 Pairs of Sponge Rollers & Medium Power Air Blower with Stainless Steel Air Boxes |
Heated Air | Nil | Nil | Nil | Nil | Nil | Nil | Yes |
Cross Air Knife | 2 Welded Stainless Steel or Extruded Aluminum Profiles | 2 Extruded Aluminum Profiles | 2 Welded Steel | 2 Extruded Aluminum Profiles | 1 Steel Tube | 2 Steel Tubes | Nil |
Diagonal Air Knife | 1 Welded Stainless Steel | 1 Welded Stainless Steel | 1 Welded Steel | 1 Welded Steel | 1 Steel Tube | 1 Steel Tube | Nil |
Roller Shaft Center | Steel covered by EPDM | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR |
Roller Shaft End | Stainless Steel | Stainless Steel | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Roller Shaft Bearing | NSK Stainless Steel or Equivalent | Chinese 1st Class Stainless Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel |
Roller Splash Guard | Yes | Yes | Yes | Yes | Yes | Yes | Nil |
Internal Separating Partition between Air Knives | 3mm Stainless Steel | 3mm Stainless Steel | Rust Proof Steel | 1.5mm Stainless Steel | Rust Proof Steel | Rust Proof Steel | Nil |
Noise Depress Panel | Internal & External Panels | Internal & External Panels | Internal & External Panels | Internal & External Panels | Internal Panel | Internal Panel | Nil |
Conveyor Protection | Stainless Steel Cover | Stainless Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Fence | Rust Proof Steel Fence | Rust Proof Steel Cover | Rust Proof Steel Cover |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
AIR BLOWER SYSTEM |
|||||||
Overhead Blower Stand Structure | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Nil (Blower Located below Rollers) |
Overhead Platform | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Nil | Nil | Nil | NA |
Blower Chamber Access Door | Yes | Nil | Nil | Nil | Nil | Nil | NA |
Air Filters | Double Filters with Panel & Bag Filters | Double Filters with Panel & Bag Filters | Double Filters with Panel & Bag Filters | Panel Filter | Panel Filter | Panel Filter | Nil |
Protective Air Valve (Closed when Blower Starts) (Applicable when Blower Power Larger than 20KW) | Yes | Yes | Yes | Nil | Nil | Nil | Nil |
Air Pressure Differentiate Gauge | Yes | Yes | Yes | Nil | Nil | Nil | Nil |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
EXIT SECTION |
|||||||
Framework | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Bearing Support | Extruded Aluminum Profile | Extruded Aluminum Profile | Extruded Aluminum Profile | Rust Proof Steel with Nylon Block | Rust Proof Steel with Nylon Block | Rust Proof Steel with Nylon Block | Rust Proof Steel |
Roller Shaft Center | Steel covered by EPDM | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR | Steel covered by NBR |
Roller Shaft End | Stainless Steel | Stainless Steel | Stainless Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel | Rust Proof Steel |
Roller Shaft Bearing | NSK Stainless Steel or Equivalent | Chinese 1st Class Stainless Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel | Chinese 1st Class Steel |
Roller Splash Guard | Nil | Nil | Nil | Nil | Nil | Nil | Nil |
Conveyor Protection | Stainless Steel Cover | Stainless Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Cover | Rust Proof Steel Cover |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
LIFTING SYSTEM |
|||||||
Lifting of Upper Washing & Drying Sections | 500 mm | 500 mm | 500 mm | 400 mm | 400 mm | Fix | NA (Whole Cover of Washing & Drying Sections Slide on Track) |
Lifting Lead Screw Drive | 6 (Glass Width≥2000mm) 4 (Glass Width<2000mm) |
6 (Glass Width≥2000mm) 4 (Glass Width<2000mm) |
6 (Glass Width≥2000mm) 4 (Glass Width<2000mm) |
6 | 4 | NA | NA |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
CONVEYING SYSTEM |
|||||||
Conveying Mechanism | Chain | Chain | Chain | Gear | Gear | Chain | Chain |
Motors & Gear Reducers | SEW or Equivalent | Chinese 1st Class | Chinese 1st Class | Chinese 1st Class | Chinese 1st Class | Chinese 1st Class | Chinese 1st Class |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
CONTROL SYSTEM |
|||||||
Cabinet | Free Stand Alone | Free Stand Alone | Free Stand Alone | Free Stand Alone | Free Stand Alone | Free Stand Alone | Built In |
PLC | Yes | Yes | Yes | Yes | Nil | Nil | Nil |
HMI Touch Panel Display Interface | Yes | Yes | Yes | Yes | Nil | Nil | Nil |
Adjustment of Glass Thickness Change | Input in HMI | Input in HMI | Input in HMI | Input in HMI | Press Button with Thickness Gauge Indicator | Manual Adjust Cylindrical Brushes & Air Knives | Hand Wheel with Thickness Gauge Indicator |
Adjustment of Glass Speed | Input in HMI Regulated by Frequency | Input in HMI Regulated by Frequency | Input in HMI Regulated by Frequency | Input in HMI Regulated by Frequency | Turning Knob with Infinite Speed Variator | Turning Knob with Infinite Speed Variator | Turning Knob with Infinite Speed Variator |
Photo-Sensor at End of Entrance Section | Yes | Yes | Yes | Yes | Nil | Nil | Nil |
Series | GWD-H-A | GWD-H-B | GWD-H-C | GWD-H-D | GWD-H-E | GWD-H-F | GWD-H-G |
GENERAL |
|||||||
Max. Glass Widths | 1200 / 1600 / 2000 / 2300 / 2600 mm | 600 till 2500 mm | |||||
Glass Thickness | 1.8 ~ 25 mm | 1.8 ~ 25 mm | 1.8 ~ 25 mm | 3 ~ 25 mm | 3 ~ 25 mm | 3 ~ 25 mm | 3 ~ 25 mm |
Max. Glass Speed | 8 m/min. | 8 m/min. | 8 m/min. | 6 m/min. | 4 m/min. | 6 m/min. | 5 m/min. |
Noise (Measured 1m Away) | < 82 dB | < 82 dB | < 82 dB | < 85 dB | < 85 dB | < 87 dB | < 80 dB |
