Introduction

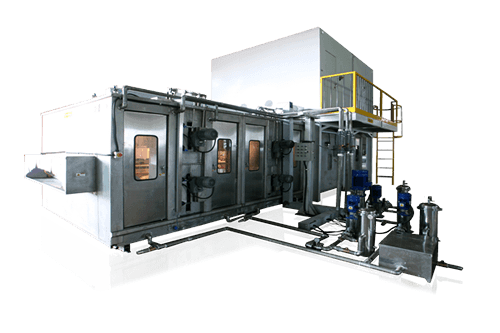

Compact design with total stainless steel enclosure
Powerful BGW Bend Glass Washer

• High Pressure Water Jet Glass Washing
• Wash any Shape and any Kind of Bend Glass
• Anti-Static System
• Pressure Balance Compensation System
• Optional Adjustable Sectional Conical Brushes
• All Stainless Steel Structrue
• Adjustable Air Knives Conform to Different Glass Curvatures
• Travels Up to 15m/min. High Speed
• Extremely High Throughput
• Powerful Air Blowers Guarantees Glass 100% Dry
• High Efficient Water Flow Heaters
• PLC with Touch Panel Operator Interface
• Total Enclosure Absolutely Free of Splashing Water
• Doors Accesses for Maintenance
• Window on Enclosure Allows Monitoring During Operation
• No More Vaccum Clean to Remove Separating Powder
• No More Dust Flying inside PVB Assembly Room

This machine is used to wash and dry bend glass which includes, automotive glass, curve glass for kitchen appliances and electrical appliances, bend glass for furniture, architecture and decoration etc.

For windshield production, two pieces of glass are separated by powders when bending inside furnace. After bending is completed, the two glass pieces are detached and the powders are, generally, removed by vaccum cleaners inside a climatic control room where PVB is assembled immediate after powders removal. This process requires a lot of work load and labour forces. If vacuum cleaner is inefficient, dusts fly everywhere inside assembly room. If necessary, autoglass, such as windshield, backlites and sidelites are also washed and dryied prior to packing.

BGW bend glass washing and drying machine is used to wash curve glass thoroughly by means of high pressure water cleaning system. If necessary, an optional conical rotational brushes system could be equipped on request for additional cleaning. The glass is then dried by air knives system powered by air blower system.

This fully stainless steel built machine is designed to meet the most serious standards and is fabricated with first class workmanship.
