Specifications

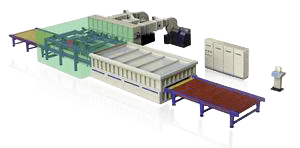

- GTF-(F)-(xxxx)-1 Horizontal Flat Glass Tempering Furnace with Single Heating Chamber

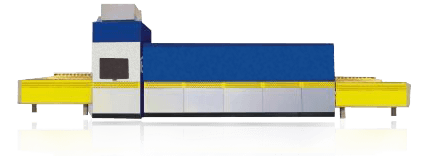

- GTF-(F)-(xxxx)-2 Horizontal Glass Flat & Transverse Bending & Tempering Furnace (without Large Flat Tempering Section)

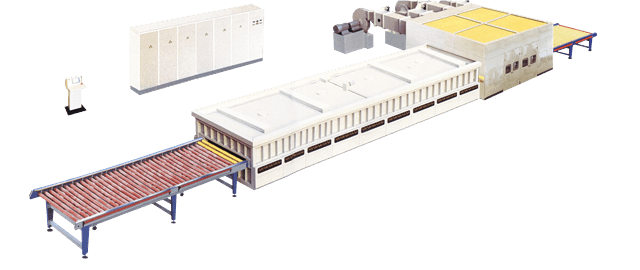

- GTF-(F)-(xxxx)-C Horizontal Flat Glass Tempering Furnace with Double Heating Chambers

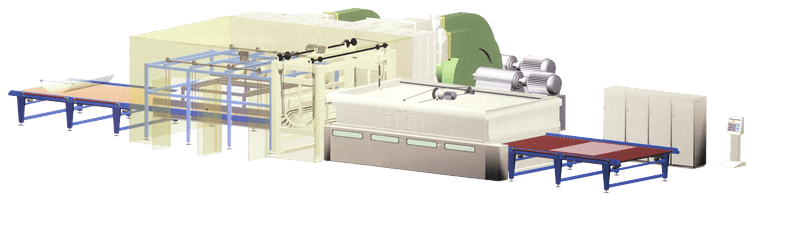

- GTF-(C-F)-(xxxx) Horizontal Glass Flat & Transverse Bending & Tempering Furnace (with Large Flat Tempering Section)
- GTF-(T-F)-(xxxx)-1 Horizontal Flat Glass Tempering Furnace with Continuous Heating Chamber

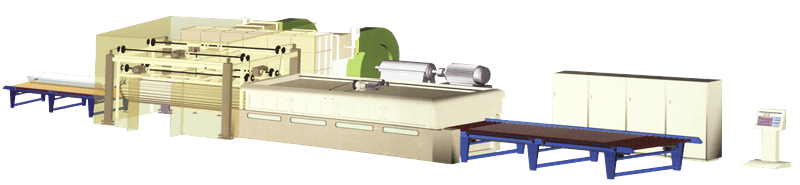

- GTF-(RAB)-(xxxx) Horizontal Glass Longitudinal Bending & Tempering Furnace

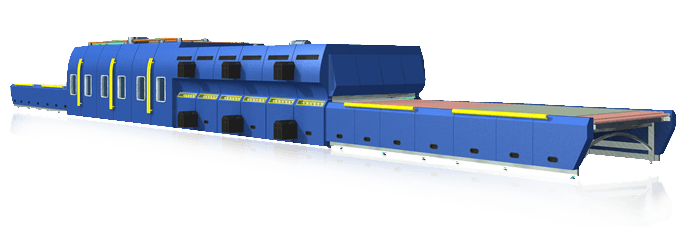

- GTF-(VB)-(xxxx)-1 Horizontal Flat Glass Tempering Furnace with Air Convection & Irradiation Heating

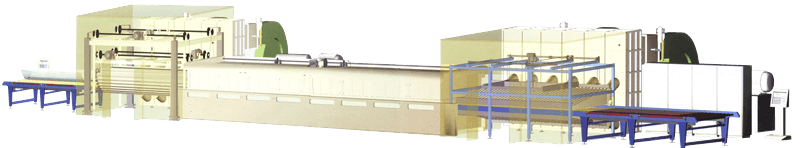

- GTF-(TB)-(xxxx+xx)-1 Horizontal Glass Flat & Longitudinal Bending & Tempering Furnace

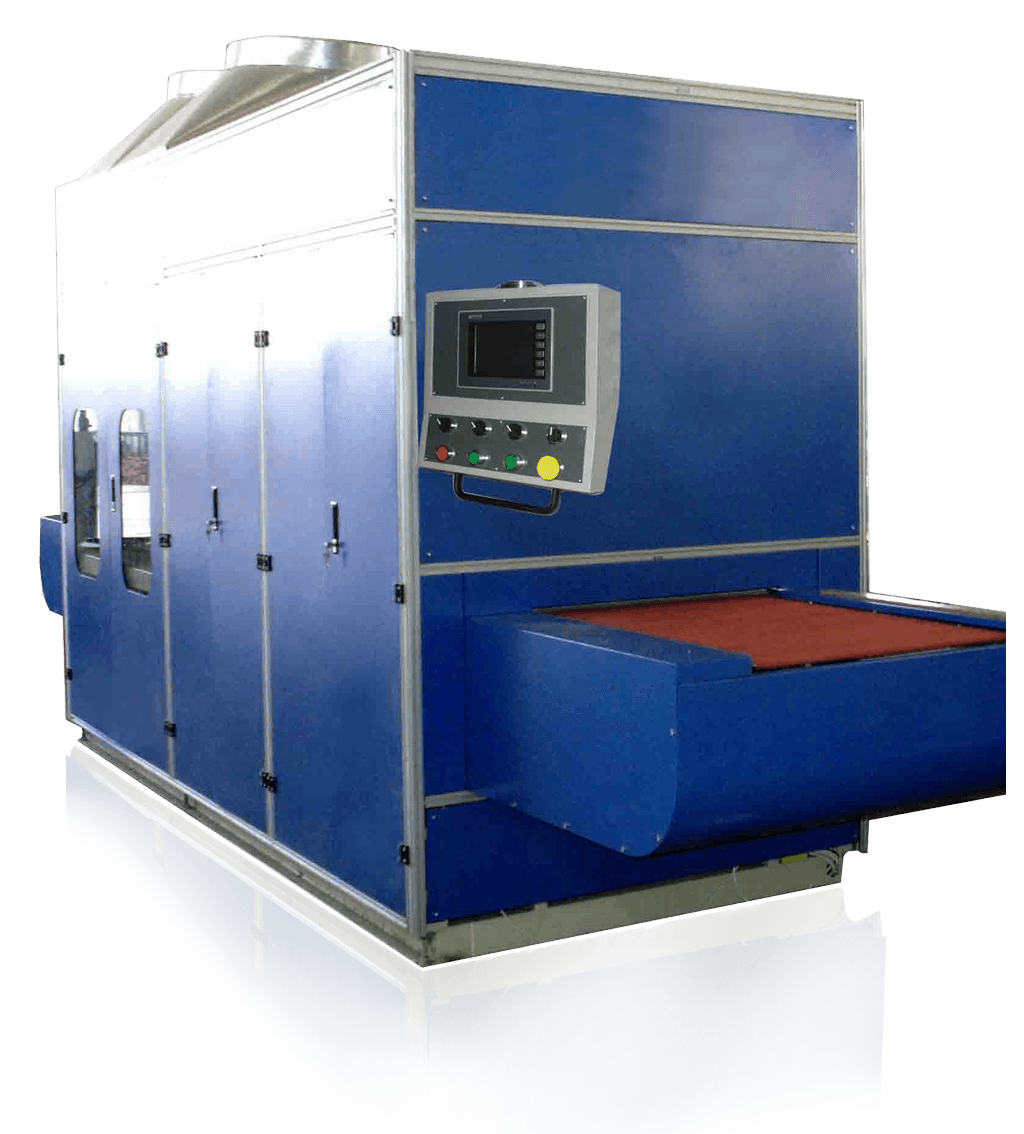

- GTF-(FTB)-(xxxx+xx)-1 Ultra Thin & Small Glass Tempering Furnace

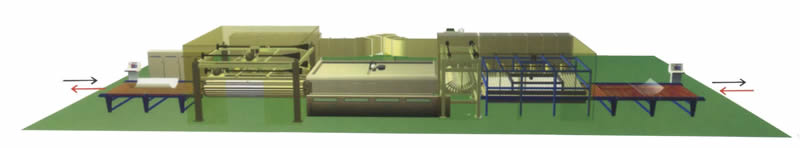

- GTF-(LB)-(xxxx)-1 Horizontal Glass Flat & Transverse & Longitudinal Bending & Tempering Furnace

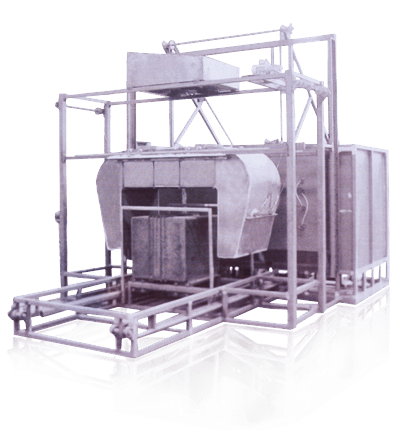

- GTF-(F+LB)-(xxxx+xx)-1 Horizontal Glass Right Angle Bending & Tempering Furnace

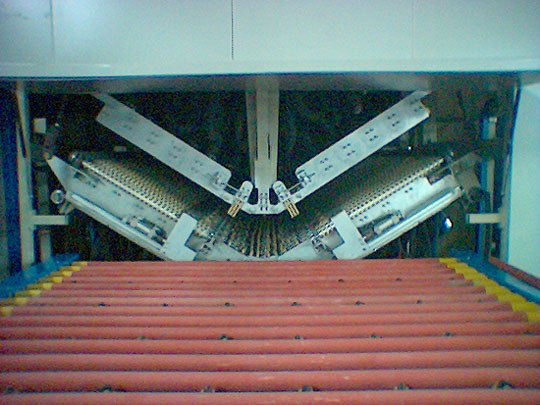

- GTF-(FTB+LB)-(xxxx+xx+xx)-1 Horizontal Glass V Shape Bending & Tempering Furnace

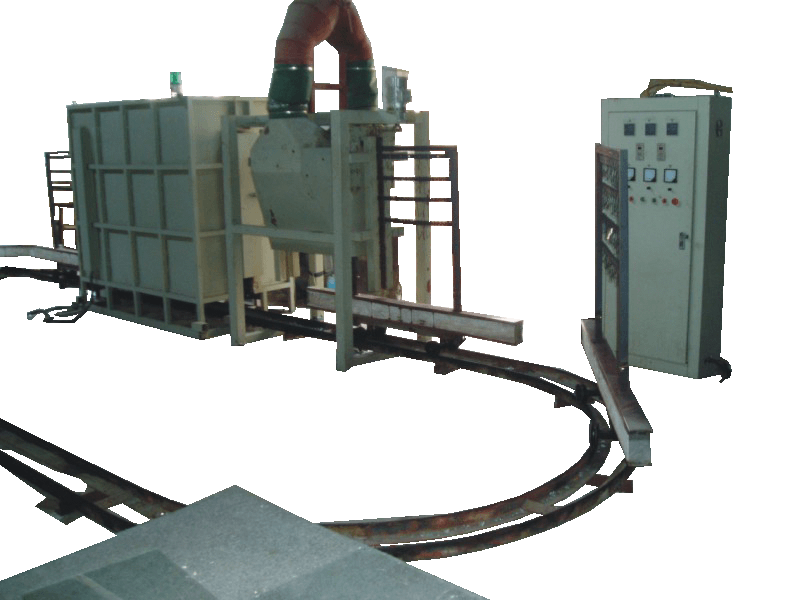

- GTF-(LBV)-(xxxx)-1 Vertical Glass Bending & Tempering Furnace

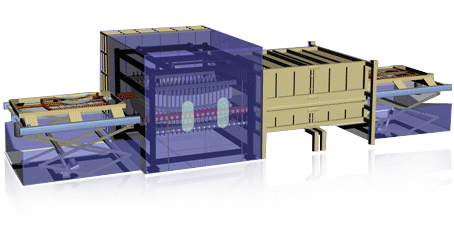

- GTF-(MB)-(xxxx) Horizontal Glass Mould Bending & Tempering Furnace
GTF-(F)-(xxxx)-1 | |||
Models | Max. Flat Glass Size (mm) | Available on Request | |
Width | Length | ||
GTF-(F)-(0612)-1 | 600 | 1200 | |
GTF-(F)-(0815)-1 | 800 | 1500 | Other Sizes Combo Hot Air Convection GTF-(FC)-(xxxx)-1 |
GTF-(F)-(1220)-1 | 1200 | 2000 | |
GTF-(F)-(1225)-1 | 1200 | 2500 | |
GTF-(F)-(1525)-1 | 1500 | 2500 | |
GTF-(F)-(1530)-1 | 1500 | 3000 | |
GTF-(F)-(1825)-1 | 1800 | 2500 | |
GTF-(F)-(1830)-1 | 1800 | 3000 | |
GTF-(F)-(1836)-1 | 1800 | 3600 | |
GTF-(F)-(2025)-1 | 2000 | 2500 | |
GTF-(F)-(2030)-1 | 2000 | 3000 | |
GTF-(F)-(2036)-1 | 2000 | 3600 | |
GTF-(F)-(2040)-1 | 2000 | 4000 | |
GTF-(F)-(2236)-1 | 2200 | 3600 | |
GTF-(F)-(2525)-1 | 2500 | 2500 | |
GTF-(F)-(2530)-1 | 2500 | 3000 | |
GTF-(F)-(2536)-1 | 2500 | 3600 | |
GTF-(F)-(2540)-1 | 2500 | 4000 | |
GTF-(F)-(2545)-1 | 2500 | 4500 | |
GTF-(F)-(2550)-1 | 2500 | 5000 | |
GTF-(F)-(2560)-1 | 2500 | 6000 | |
GTF-(F)-(3050)-1 | 3000 | 5000 | |
GTF-(F)-(3060)-1 | 3000 | 6000 | |
GTF-(F)-(3580)-1 | 3500 | 8000 |
GTF-(F)-(xxxx)-2 | |||
Models | Max. Flat Glass Size (mm) | Available on Request | |
Width | Length | ||
GTF-(F)-(0612)-2 | 600 | 1200 | |
GTF-(F)-(0815)-2 | 800 | 1500 | Other Sizes Combo Hot Air Convection GTF-(FC)-(xxxx)-2 |
GTF-(F)-(1220)-2 | 1200 | 2000 | |
GTF-(F)-(1225)-2 | 1200 | 2500 | |
GTF-(F)-(1525)-2 | 1500 | 2500 | |
GTF-(F)-(1530)-2 | 1500 | 3000 | |
GTF-(F)-(1825)-2 | 1800 | 2500 | |
GTF-(F)-(1830)-2 | 1800 | 3000 | |
GTF-(F)-(1836)-2 | 1800 | 3600 | |
GTF-(F)-(2025)-2 | 2000 | 2500 | |
GTF-(F)-(2030)-2 | 2000 | 3000 | |
GTF-(F)-(2036)-2 | 2000 | 3600 | |
GTF-(F)-(2040)-2 | 2000 | 4000 | |
GTF-(F)-(2236)-2 | 2200 | 3600 | |
GTF-(F)-(2525)-2 | 2500 | 2500 | |
GTF-(F)-(2530)-2 | 2500 | 3000 | |
GTF-(F)-(2536)-2 | 2500 | 3600 | |
GTF-(F)-(2540)-2 | 2500 | 4000 | |
GTF-(F)-(2545)-2 | 2500 | 4500 | |
GTF-(F)-(2550)-2 | 2500 | 5000 | |
GTF-(F)-(2560)-2 | 2500 | 6000 | |
GTF-(F)-(3050)-2 | 3000 | 5000 | |
GTF-(F)-(3060)-2 | 3000 | 6000 | |
GTF-(F)-(3580)-2 | 3500 | 8000 |
GTF-(F)-(xxxx)-C | |||
Models | Max. Flat Glass Size (mm) | Available on Request | |
Width | Length | ||
GTF-(F)-(0612)-C | 600 | 1200 | |
GTF-(F)-(0815)-C | 800 | 1500 | Other Sizes Combo Hot Air Convection GTF-(FC)-(xxxx)-C |
GTF-(F)-(1220)-C | 1200 | 2000 | |
GTF-(F)-(1225)-C | 1200 | 2500 | |
GTF-(F)-(1525)-C | 1500 | 2500 | |
GTF-(F)-(1530)-C | 1500 | 3000 | |
GTF-(F)-(1825)-C | 1800 | 2500 | |
GTF-(F)-(1830)-C | 1800 | 3000 | |
GTF-(F)-(1836)-C | 1800 | 3600 | |
GTF-(F)-(2025)-C | 2000 | 2500 | |
GTF-(F)-(2030)-C | 2000 | 3000 | |
GTF-(F)-(2036)-C | 2000 | 3600 | |
GTF-(F)-(2040)-C | 2000 | 4000 | |
GTF-(F)-(2236)-C | 2200 | 3600 | |
GTF-(F)-(2525)-C | 2500 | 2500 | |
GTF-(F)-(2530)-C | 2500 | 3000 | |
GTF-(F)-(2536)-C | 2500 | 3600 | |
GTF-(F)-(2540)-C | 2500 | 4000 | |
GTF-(F)-(2545)-C | 2500 | 4500 | |
GTF-(F)-(2550)-C | 2500 | 5000 | |
GTF-(F)-(2560)-C | 2500 | 6000 | |
GTF-(F)-(3050)-C | 3000 | 5000 | |
GTF-(F)-(3060)-C | 3000 | 6000 | |
GTF-(F)-(3580)-C | 3500 | 8000 |
GTF-(C-F)-(xxxx) | |||
GTF-(C-F)-(xxxx)-1 Combo Convection & Irradiation Furnace |

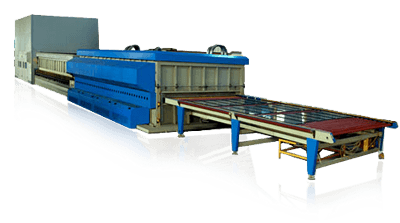

GTF-(C-F)-(xxxx)-2 Two Heating Chambers with 1st Convection & 2nd Irradiation |
||
Models | Max. Flat Glass Size (mm) | Available on Request | |
Width | Length | ||
GTF-(F)-(0612)-1 | 600 | 1200 | |
GTF-(F)-(0815)-1 | 800 | 1500 | Other Sizes Double Combo Heating Chambers Continuous Combo Heating Chambers |
GTF-(F)-(1220)-1 | 1200 | 2000 | |
GTF-(F)-(1225)-1 | 1200 | 2500 | |
GTF-(F)-(1525)-1 | 1500 | 2500 | |
GTF-(F)-(1530)-1 | 1500 | 3000 | |
GTF-(F)-(1825)-1 | 1800 | 2500 | |
GTF-(F)-(1830)-1 | 1800 | 3000 | |
GTF-(F)-(1836)-1 | 1800 | 3600 | |
GTF-(F)-(2025)-1 | 2000 | 2500 | |
GTF-(F)-(2030)-1 | 2000 | 3000 | |
GTF-(F)-(2036)-1 | 2000 | 3600 | |
GTF-(F)-(2040)-1 | 2000 | 4000 | |
GTF-(F)-(2236)-1 | 2200 | 3600 | |
GTF-(F)-(2525)-1 | 2500 | 2500 | |
GTF-(F)-(2530)-1 | 2500 | 3000 | |
GTF-(F)-(2536)-1 | 2500 | 3600 | |
GTF-(F)-(2540)-1 | 2500 | 4000 | |
GTF-(F)-(2545)-1 | 2500 | 4500 | |
GTF-(F)-(2550)-1 | 2500 | 5000 | |
GTF-(F)-(2560)-1 | 2500 | 6000 | |
GTF-(F)-(3050)-1 | 3000 | 5000 | |
GTF-(F)-(3060)-1 | 3000 | 6000 | |
GTF-(F)-(3580)-1 | 3500 | 8000 |
GTF-(T-F)-(xxxx)-1 | ||
Models | Max. & Min. Glass Sizes (mm) | Min. Glass Thickness (mm) |
GTF-(T-F)-(xxxx)-1 | To Be Advised | To Be Advised |
GTF-(RAB)-(xxxx) | |||
GTF-(RAB)-(xxxx)-1 Single Heating Chamber |
GTF-(RAB)-(xxxx)-2 Double Heating Chambers |
||
ModelsModels | Max. Glass Size (mm) | Available on Request | |
Width | Length | ||
GTF-(RAB)-(2510)-1 | 2500 | 1000 | Other Sizes Double Heating Chambers |
GTF-(VB)-(xxxx)-1 | |||
Models | Max. Glass Size (mm) | Available on Request | |
Width | Length | ||
GTF-(VB)-(1508)-1 | 1500 | 800 | Other Sizes Double Heating Chambers |
GTF-(VB)-(2212)-1 | 2200 | 1200 |
GTF-(TB)-(xxxx+xx)-1 | ||||||
For Small Bend Glass |

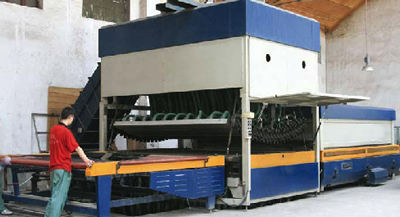

For Large Bend Glass |
|||||
Models | Max. Glass Size (mm) | Min. Radius of Curvature (mm) | Available on Request | |||
Flat | Bend | |||||
Width | Length | Width | Length | |||
GTF-(TB)-(1508+08)-1 | 1500 | 800 | 1500 | 800 | 430 | Other Sizes Other Radius of Curvature |
GTF-(TB)-(1510+10)-1 | 1500 | 1000 | 1500 | 1000 | 480 | |
GTF-(TB)-(1530+30)-1 | 1500 | 3000 | 1500 | 3000 | 1200 | |
GTF-(TB)-(2008+08)-1 | 2000 | 800 | 2000 | 800 | 450 | |
GTF-(TB)-(2012+12)-1 | 2000 | 1200 | 2000 | 1200 | 550 | |
GTF-(TB)-(2030+30)-1 | 2000 | 3000 | 2000 | 3000 | 1200 | |
GTF-(TB)-(2036+36)-1 | 2000 | 3600 | 2000 | 3600 | 1500 | |
GTF-(TB)-(2510+10)-1 | 2500 | 1000 | 2500 | 1000 | 480 | |
GTF-(TB)-(2512+12)-1 | 2500 | 1500 | 2500 | 1200 | 550 | |
GTF-(TB)-(2515+15)-1 | 2500 | 1500 | 2500 | 1500 | 900 | |
GTF-(TB)-(2536+36)-1 | 2500 | 3600 | 2500 | 3600 | 1500 |
GTF-(FTB)-(xxxx+xx)-1 | ||||||
Models | Max. Glass Size (mm) | Min. Radius of Curvature (mm) | Available on Request | |||
Flat | Bend | |||||
Width | Length | Width | Length | |||
GTF-(FTB)-(1508+08)-1 | 1500 | 800 | 1500 | 800 | 430 | Other Sizes Other Radius of Curvature |
GTF-(FTB)-(1530+10)-1 | 1500 | 3000 | 1500 | 1000 | 480 | |
GTF-(FTB)-(2010+08)-1 | 2000 | 1000 | 2000 | 800 | 450 | |
GTF-(FTB)-(2015+08)-1 | 2000 | 1500 | 2000 | 800 | 450 | |
GTF-(FTB)-(2030+08)-1 | 2000 | 3000 | 2000 | 800 | 450 | |
GTF-(FTB)-(2036+08)-1 | 2000 | 3600 | 2000 | 800 | 450 | |
GTF-(FTB)-(2036+12)-1 | 2000 | 3600 | 2000 | 1200 | 550 | |
GTF-(FTB)-(2510+10)-1 | 2500 | 1000 | 2500 | 1000 | 480 | |
GTF-(FTB)-(2515+12)-1 | 2500 | 1500 | 2500 | 1200 | 550 | |
GTF-(FTB)-(2536+15)-1 | 2500 | 3600 | 2500 | 1500 | 900 |
GTF-(LB)-(xxxx)-1 | ||||
Models | Max. Glass Size (mm) | Min. Radius of Curvature (mm) | Available on Request | |
Bend | ||||
Width | Length | |||
GTF-(LB)-(1525)-1 | 1500 | 2500 | 700 | Other Sizes Other Radius of Curvature |
GTF-(LB)-(1530)-1 | 1500 | 3000 | 700 | |
GTF-(LB)-(2025)-1 | 2000 | 2500 | 800 | |
GTF-(LB)-(2030)-1 | 2000 | 3000 | 800 | |
GTF-(LB)-(2036)-1 | 2000 | 3600 | 800 | |
GTF-(LB)-(2525)-1 | 2500 | 2500 | 1000 | |
GTF-(LB)-(2530)-1 | 2500 | 3000 | 1000 | |
GTF-(LB)-(2536)-1 | 2500 | 3600 | 1000 | |
GTF-(LB)-(3036)-1 | 3000 | 3600 | 1500 |
GTF-(F+LB)-(xxxx+xx)-1 | ||||||
Models | Max. Glass Size (mm) | Min. Radius of Curvature (mm) | Available on Request | |||
Flat | Bend | |||||
Width | Length | Width | Length | |||
GTF-(F+LB)-(1525+25)-1 | 1500 | 2500 | 1500 | 2500 | 700 | Other Sizes Other Radius of Curvature |
GTF-(F+LB)-(1530+30)-1 | 1500 | 3000 | 1500 | 3000 | 700 | |
GTF-(F+LB)-(2025+25)-1 | 2000 | 2500 | 2000 | 2500 | 800 | |
GTF-(F+LB)-(2030+30)-1 | 2000 | 3000 | 2000 | 3000 | 800 | |
GTF-(F+LB)-(2036+36)-1 | 2000 | 3600 | 2000 | 3600 | 800 | |
GTF-(F+LB)-(2040+36)-1 | 2000 | 4000 | 2000 | 3600 | 800 | |
GTF-(F+LB)-(2525+25)-1 | 2500 | 2500 | 2500 | 2500 | 1000 | |
GTF-(F+LB)-(2530+30)-1 | 2500 | 3000 | 2500 | 3000 | 1000 | |
GTF-(F+LB)-(2536+36)-1 | 2500 | 3600 | 2500 | 3600 | 1000 | |
GTF-(F+LB)-(2540+36)-1 | 2500 | 4000 | 2500 | 3600 | 1000 | |
GTF-(F+LB)-(2545+36)-1 | 2500 | 4500 | 2500 | 3600 | 1000 | |
GTF-(F+LB)-(2550+36)-1 | 2500 | 5000 | 2500 | 3600 | 1000 | |
GTF-(F+LB)-(2560+36)-1 | 2500 | 6000 | 2500 | 3600 | 1000 | |
GTF-(F+LB)-(3050+36)-1 | 3000 | 5000 | 3000 | 3600 | 1500 | |
GTF-(F+LB)-(3060+36)-1 | 3000 | 6000 | 3000 | 3600 | 1500 |
GTF-(FTB+LB)-(xxxx+xx+xx)-1 | |||||||||
Models | Max. Glass Size (mm) | Min. Radius of Curvature (mm) | Available on Request | ||||||
Flat | Transverse Bend | Longitudinal Bend | Transverse Bend | Longitudinal Bend | |||||
Width | Length | Width | Length | Width | Length | ||||
GTF-(FTB+LB)-(1508+08+25)-1 | 1500 | 800 | 1500 | 800 | 1500 | 2500 | 430 | 700 | Other Sizes Other Radius of Curvature |
GTF-(FTB+LB)-(1530+10+30)-1 | 1500 | 3000 | 1500 | 1000 | 1500 | 3000 | 480 | 700 | |
GTF-(FTB+LB)-(2010+08+25)-1 | 2000 | 1000 | 2000 | 800 | 2000 | 2500 | 450 | 800 | |
GTF-(FTB+LB)-(2030+08+36)-1 | 2000 | 3000 | 2000 | 800 | 2000 | 3600 | 450 | 800 | |
GTF-(FTB+LB)-(2036+08+36)-1 | 2000 | 3600 | 2000 | 800 | 2000 | 3600 | 450 | 800 | |
GTF-(FTB+LB)-(2036+12+36)-1 | 2000 | 3600 | 2000 | 1200 | 2000 | 3600 | 550 | 800 | |
GTF-(FTB+LB)-(2515+12+36)-1 | 2500 | 1500 | 2500 | 1200 | 2500 | 3600 | 550 | 1000 | |
GTF-(FTB+LB)-(2536+15+36)-1 | 2500 | 3600 | 2500 | 1500 | 2500 | 3600 | 900 | 1000 |
GTF-(LBV)-(xxxx)-1 | ||||
Models | Max. Glass Size (mm) | Min. Radius of Curvature (mm) | Available on Request | |
Width | Length | |||
GTF-(LBV)-(1520) | 1500 | 2000 | 200 | Other Sizes |
GTF-(LBV)-(2030) | 2000 | 3000 | 200 |
GTF-(MB)-(xxxx) | |||
Models | Max. Glass Size (mm) | Available on Request | |
Width | Length | ||
GTF-(MB)-(1520) | 1500 | 2000 | Other Sizes |
GTF-(MB)-(2030) | 2000 | 3000 |
