Classification
| Series | Furnaces | Flat Glass | Bend Glass | Moulds | Bending & Tempering Principle | Glass Travels Directions | Heating Chambers | Heating Method | ||
| Trans verse |
Longi tudinal |
Shape | ||||||||
GTF-(F)-(xxxx)-1
|

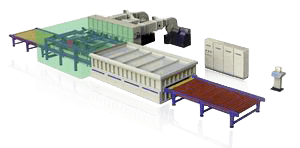

Horizontal Flat Glass Tempering Furnace with Single Heating Chamber | Yes | No | NA | NA | One Way | Single | Irradiation | ||
GTF-(F)-(xxxx)-2 |

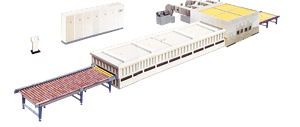

Horizontal Flat Glass Tempering Furnace with Double Heating Chambers | Yes | No | NA | NA | One Way | Double | Irradiation | ||
GTF-(F)-(xxxx)-C |
Horizontal Flat Glass Tempering Furnace with Continuous Heating Chamber | Yes | No | NA | NA | One Way | Continuous | Irradiation | ||
GTF-(C-F)-(xxxx)-1 |

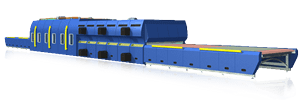

Horizontal Flat Glass Tempering Furnace with Air Convection & Irradiation Heating | Yes | No | NA | NA | One Way | Single | Combo Convection & Irradiation | ||
| Series | Furnaces | Flat Glass | Bend Glass | Moulds | Bending & Tempering Principle | Glass Travels Directions | Heating Chambers | Heating Method | ||
| Trans verse |
Longi tudinal |
Shape | ||||||||
GTF-(TB)-(xxxx+xx)-1 |

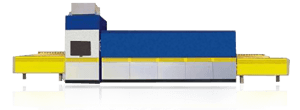

Horizontal Glass Flat & Transverse Bending & Tempering Furnace (without Large Flat Tempering Section) | Yes | Yes | No | Single Curvature for Large to Small Glass | No | Adjustable Rollers Bending System | One Way | Single | Irradiation |
GTF-(FTB)-(xxxx+xx)-1 |
Horizontal Glass Flat & Transverse Bending & Tempering Furnace (with Large Flat Tempering Section) | Yes | Yes | No | Single Curvature for Medium Small Glass | No | Adjustable Rollers Bending System | One Way | Single | Irradiation |
GTF-(LB)-(xxxx)-1 |
Horizontal Glass Longitudinal Bending & Tempering Furnace | Yes | No | Yes | Single Curvature with Medium Large Radius | No | Adjustable Rollers Bending System | One Way | Single | Irradiation |
GTF-(F+LB)-(xxxx+xx)-1 |
Horizontal Glass Flat & Longitudinal Bending & Tempering Furnace | Yes | No | Yes | Single Curvature with Medium Large Radius | No | Adjustable Rollers Bending System | Two Ways | Single | Irradiation |
GTF-(FTB+LB)-(xxxx+xx+xx)-1 |
Horizontal Glass Flat & Transverse & Longitudinal Bending & Tempering Furnace | No | Yes | Yes | Single Curvature | No | Adjustable Rollers Bending System | Two Ways | Single | Irradiation |
| Series | Furnaces | Flat Glass | Bend Glass | Moulds | Bending & Tempering Principle | Glass Travels Directions | Heating Chambers | Heating Method | ||
| Trans verse |
Longi tudinal |
Shape | ||||||||
GTF-(LBV)-(xxxx)-1 |

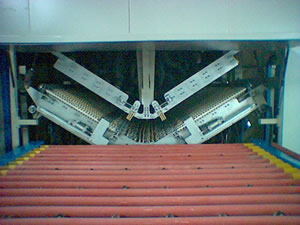

Horizontal Glass V Shape Bending & Tempering Furnace | Yes | No | Yes | V Shape | No | Adjustable Rollers Bending System | Two Ways | Single | Irradiation |
GTF-(RAB)-(xxxx)-1 |

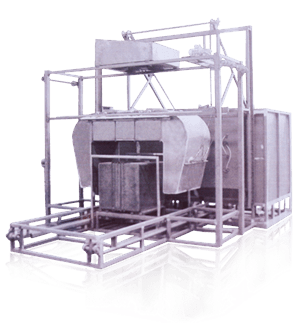

Horizontal Right Angle Glass Bending & Tempering Furnace | No | No | No | Right Angles | Yes | Only One Universal Mould Required | One Way | Single | Irradiation |
| Series | Furnaces | Flat Glass | Bend Glass | Moulds | Bending & Tempering Principle | Glass Travels Directions | Heating Chambers | Heating Method | ||
| Trans verse |
Longi tudinal |
Shape | ||||||||
GTF-(MB)-(xxxx) |

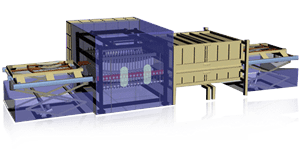

Horizontal Glass Mould Bending & Tempering Furnace | No | No | No | Double & Single Curvatures | Yes | One Mould for One Type of Bend Glass | One Way | Single | Irradiation |
GTF-(VB)-(xxxx)-1 |

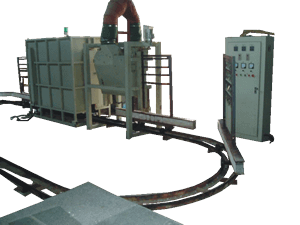

Vertical Glass Bending & Tempering Furnace | Yes | No | No | Double & Single Curvatures | Yes | One Mould for One Type of Bend Glass | One Way | Single | Irradiation |

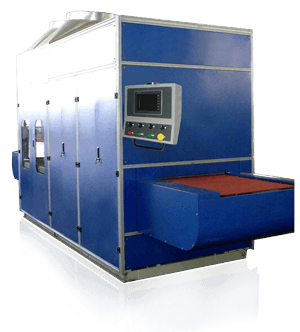

GTF-(M-F)-(xxxx)-1 |
Mini Glass Tempering Furnace for Ultra Thin Glass & Extremely Small Glass | Yes(Ultra Thin Glass) | No | NA | NA | One Way | Single | Irradiation | ||
