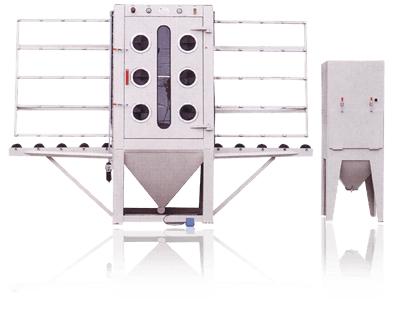

Air Blasting Vertical Manual Glass Sandblasting Machinewith Cyclone Separator
  • SBM-V-B glass sandblasting machines apply abrasives on glass surface while glass is placed vertically
  • Air blast process with spray gun powered by compress air
  • Work piece sandblasted inside well sealed blast cabin
  • Automatic cyclone separating
  • Automatic abrasives recycling
  • Automatic dust collection
  • Truly Free of dust working environment
  • Vertical design occupies less area

Description

General

The machine is a closed loop system consisting of several components.

  • Blast Cabin
  • Manually Controlled Blast Gun
  • Abrasives Blasting System
  • Automatic Cyclone Separating System
  • Dust Collection
  • Conveying System

Blast Cabin

It is a well closed chamber where sand blasting is taken place. Abrasive proof materials and surface treatments enables cabin durable and resistant to abrasives. There are gloves attached to holes on cabinet front where there are observation windows.

Manual Control Blast Gun

Machine comes with one manual control blast gun. Operator blasts the parts from the outside of the cabinet by placing his arms in gloves attached to glove holes on the cabinet, viewing the part through view windows and, manipulate spray gun manually.

Abrasive Blasting System

It is a siphon blast system, or sometimes known as suction blast system, using compressed air to create vacuum inside blast guns barrels. The negative pressure pulls abrasive into the blast gun via abrasive proof pipes. Compressed air directs the abrasives through blast nozzles impacting on glass. Abrasives are mixing with compress air during ejection, which fully utilizes compress air. Compress air quantity and abrasive amount are adjustable. Adequate mixing ratio minimizes abrasives and air consumptions.

Automatic Cyclone Separating System

It is a standalone structure. Dust separation is achieved by means of cyclone. This process is a very high efficient way to capture reusable abrasives for recycling from disposal dust. During sand blasting, two types of contaminants are generated.

  • a) Glass powder physically eroded from glass surface.
  • b) Abrasives which become smaller in size or losing sharp edges after impacting on glass. These shattered abrasives are no more helpful for blasting.

Remaining abrasives are still large in sizes with sharp edges. They are reusable. Dusts are light in weight and are separated from reusable abrasives, which are relatively heavier in weight, by this powerful cyclone system. There is an abrasive storage inside separating system. Recycle abrasives are separated and left in the storage and are to be blasted automatically. Virgin abrasives are re-filled and loaded inside the abrasive storage. This is an absolutely closed loop design providing a truly free of dust environment.

Dust Collecting

After separating, non-usable abrasive and dust are eventually collected in this dust collector.

Conveying System

It consists of inlet, main and exit conveyors with idle rollers support. Main conveyor is inside blast cabinet. Glass is loaded on inlet conveyor and is passed into main conveyor manually. When sandblasting is completed, glass is moved onto exit conveyor manually.

Specifications

Models SBM-V-B-800 SBM-V-B-1200 SBM-V-B-1500 SBM-V-B-2000
Max. Sandblast Height 800 mm 1200 mm 1500 mm 2000 mm
Principle Air blasting process with blast nozzles powered by compress air
Virgin Abrasives Re-Filling Manually loaded in abrasives storage of cyclone separator
Dust Separation Cyclone
Re-Usable Abrasives Collection Automatically collected in abrasive storage
Re-Usable Abrasives Recycling Automatic
Dust Collection Automatically collected in dust collection box
Gun Operation Manual
Nr. of Automatic Gun Nil
Nr. of Manual Gun 1
Recommended Abrasive Grit #36 ~ #120
Compress Air 0.4 ~ 0.8 MPa
Voltage 380V / 3 Phase / 50Hz (others on request)
Power 2.2 2.5 2.7 KW 3.2 KW
Weight (kg) 600 900 1100 kg 1400 kg
Outer Dimensions (L x H x W) (mm) 1500 x 1800 x 1400 1800 x 2200 x 1400 2100 x 2500 x 1400 2100 x 3000 x 1400
