Gun Spray Glass Painting Machine

Options

Drying Oven & Cooling Section

Drying oven and cooling section are continuous design with conveyor. It could be incorporated in line to gun spraying machine with conveyor. After painting, work piece exits out of spraying chamber and enters into drying oven and then cooling section. Spraying machine, drying oven and cooling section are connected with conveying system. No glass loading and unloading during the whole process. This maximizes productivity and meanwhile, eliminates non-dry paint damage during manual handling.

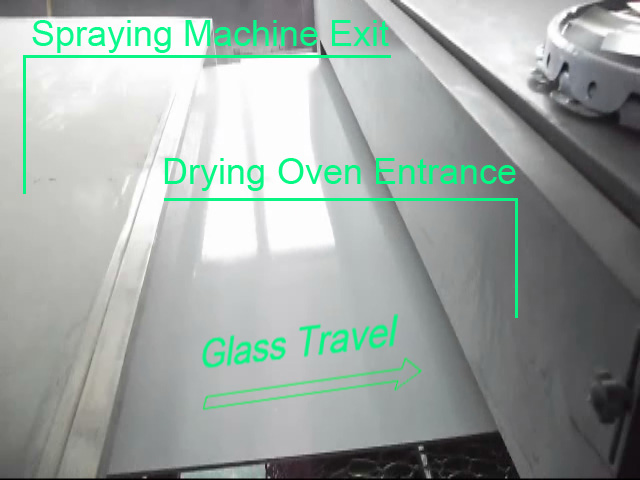

Glass Exits Out of Gun Spray Machine

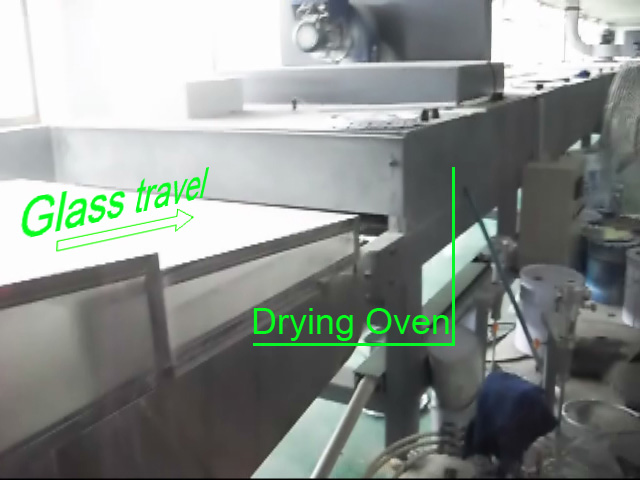

Glass Enters Drying Oven Continuously After Exiting Gun Spray Machine

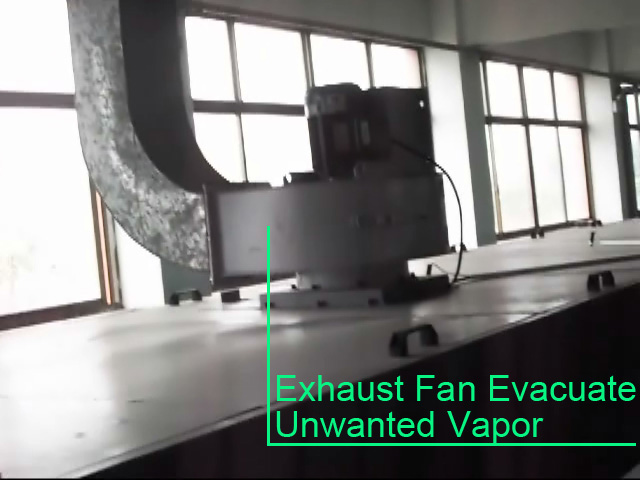

Exhaust Fan Evacuate Unwanted Evaporated Vapor

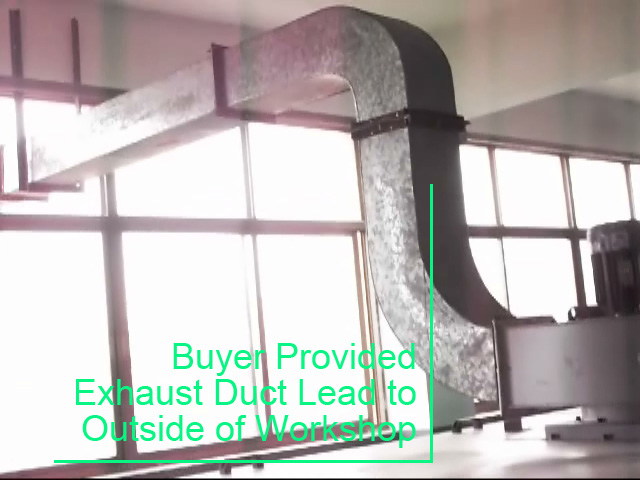

Buyer Provided Exhaust Duct Lead to Outside of Workshop

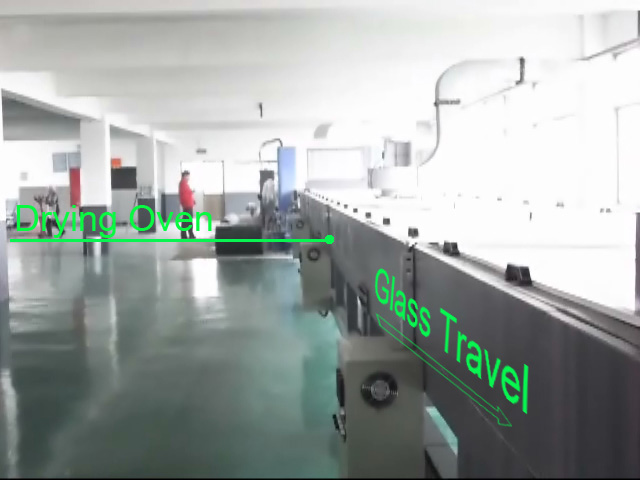

Glass Continuously Travels inside Drying Oven

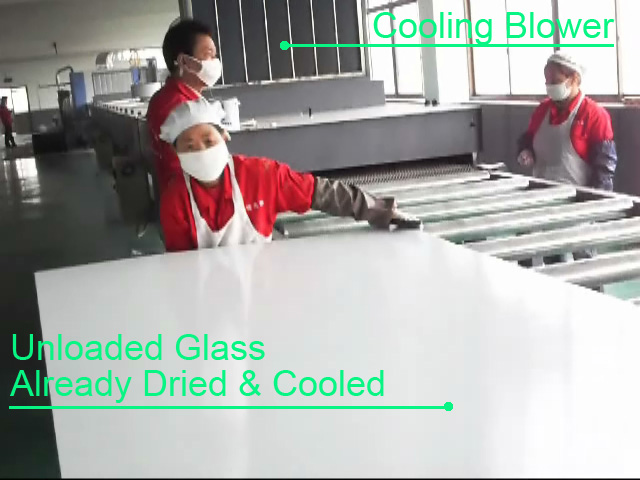

Cooling Blower Allows Hand Unloading of Glass
