Gun Spray Glass Painting Machine

Feature & Spec

Gun Spray Glass Painting Machine With Turntable

Features

Turntable Design Increased Productivity
  • Glass Does Not Move While Paint Spraying
  • Provided Turntable Minimizes Gun Spraying Downtime
  • While One Glass is Being Sprayed, Another Glass is Being Loaded on Turntable Outside
  • Apply Paint, Ink & Lacquer, etc on Glass by means of Gun Spraying Process
  • Automatic Spraying Process Eliminates Labor Force
  • Programmable Gun Travel Path
  • Paint Turns to Mist & Vapour When Applying on Glass

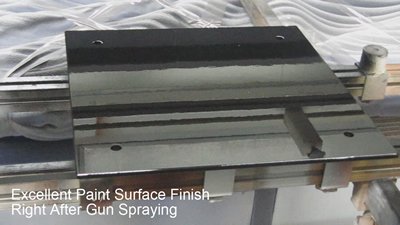

  • Excellent Paint Surface Finish
  • Very Little Paint Consumption Per Square Meter of Glass
  • Consistent Gun Travel Speeds Guarantee Uniform Paint Thickness
  • Adjustable Guns Spraying Angle
  • No Zig-Zag Paint Trace Found on Glass Surface
  • Gun Spray Painting on Glass, Wood or Any Other Proper Materials
  • Optional Air Pressurize & Water Curtain Purification System Prevent Paint Vapour from Escaping to Workshop
Gun Spray Glass Painting Machine with Turntable

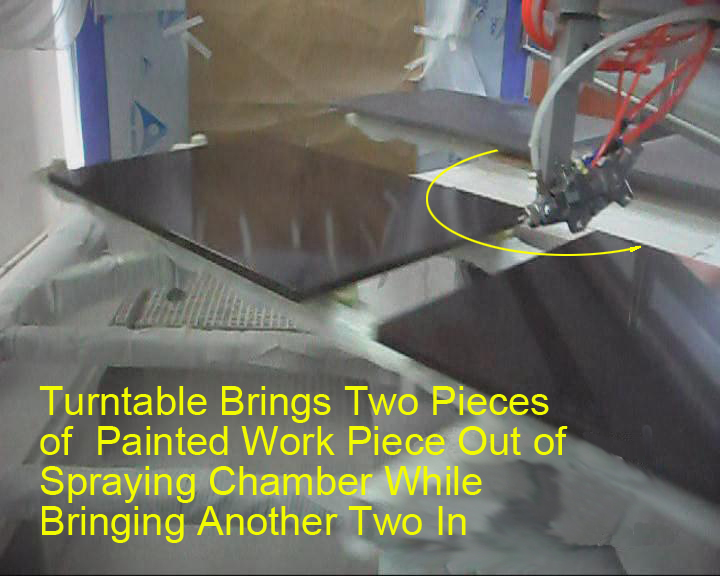

Turntable Increases Productivity

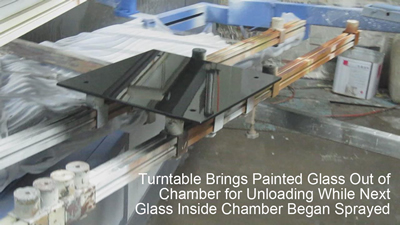

Turntable is a very simple design. While glass is being gun sprayed inside spraying chamber, next glass loading is put on the turntable outside spraying chamber. After glass inside is painted, turntable brings glass out of chamber while bringing next glass in. Gun begins to work when glass outside is being unloaded and next glass is being loaded. This process minimizes gun idle downtime and consequently maximizes production throughput.

Glass Being Painted Inside Spraying Chamber

Glass Being Painted Inside Spraying Chamber

Glass Being Painted Inside Spraying Chamber

Glass Being Painted Inside Spraying Chamber

Specifications

Models GSGPM-A-1325 GSGPM-A-1630 GSGPM-A-2036
Max. Glass Size 1300 x 2500 mm 1600 x 3000 mm 2000 x 3600 mm
Max. Glass Loading 150 kg 150 kg 150 kg
Nr. of Guns 2 2 2
Production Capacity
(base on max. glass size, provided data only for reference,
may vary from requested paint surface finish)
162 m2 / hr 168 m2 / hr 180 m2 / hr
Install Power 4 KW 4 KW 4 KW
Compress Air Pressure 0.65 MPa 0.65 MPa 0.65 MPa
Consumption 250 Lt/min. 250 Lt/min. 250 Lt/min.
Voltage 350 V / 3 phase / 50Hz
Outer Dimension Length 4.1 m 5.6 m 6.2 m
Width 2.3 m 3.2 m 3.6 m
Height 2.5 m 2.5 m 2.5 m
Weight 2.5 tons 3 tons 3.8 tons
