Vertical Straight Line Glass Profile Edging Machine

Features

G-VPB-7319

Highlights

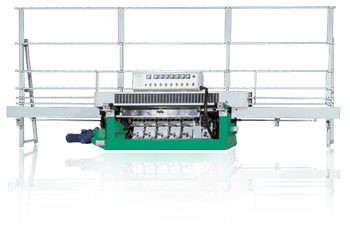

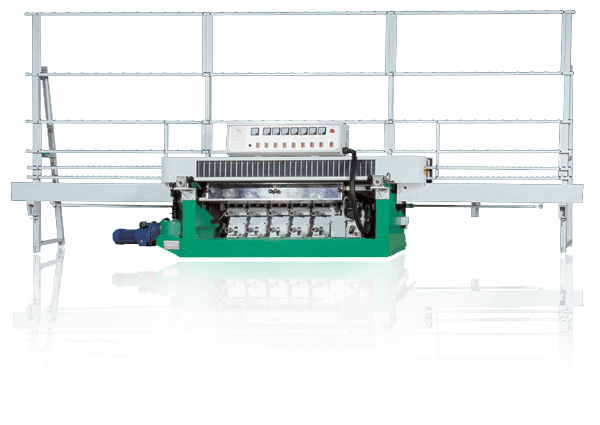

Spindles G-VPE-7319 Grinds & Polishes Pencil, OG & Waterfall Edgeworks In One Pass
  • G-VPB-7319 glass round edging machine produces round edge, OG edge, waterfall & other profile edges
  • Advance glass pencil edging machine with 7 spindles and peripheral wheels
  • Three polishing wheels obtain fine bright edges
  • Motor driven front rail beam moves in parallel regulating glass thickness
  • Glass working speed is adjustable through speed regulator
  • Ammeters show wheels real time working status
  • First two peripheral seaming wheels remove glass arris reducing subsequent wheels workloads
  • Grinding speed is increased while peripheral wheels last longer

Wheels Configuration

#7BK60 Peripheral Wheel for Glass Profile Fine Polishing #6BK60 Peripheral Wheel for Glass Profile Polishing #5BK40 Peripheral Wheel for Glass Profile Polishing #4Resin Bond Diamond Peripheral Wheel for Glass Profile Fine Grinding #3Metal Bond Diamond Peripheral Wheel for Coarse Glass Profile Grinding #2Metal Bond Diamond Cup Wheel for Coarse Front Seam Grinding #1Metal Bond Diamond Cup Wheel for Coarse Rear Seam Grinding Positions
Peripheral Peripheral Peripheral Peripheral Peripheral Cup Cup Forms
Rubber Resin Diamond Resin Diamond Metal Diamond Metal Diamond Metal Diamond Metal Diamond Materials
Polishing Fine Grinding Fine Grinding Coarse Grinding Coarse Grinding Coarse Seam Grinding Coarse Seam Grinding Applications
Φ150 Φ150 Φ150 Φ150 Φ150 Φ130 Φ130 OD Sizes (mm)
Φ22 Φ22 Φ22 Φ22 Φ22 Φ22 Φ22 ID
NA NA NA #180 #100 #100 #100 Grit
AC 2.2 AC 2.2 AC 2.2 AC 2.2 AC 2.2 AC 2 AC 2 Motors Power (kW)
Mechanical (Optional pneumatic) Mechanical (Optional pneumatic) Mechanical (Optional pneumatic) Mechanical Mechanical Mechanical Mechanical Wheels Spindles Feeding
