Vertical Straight Line Glass Profile Edging Machine

Features

G-VPB-3319

Highlights

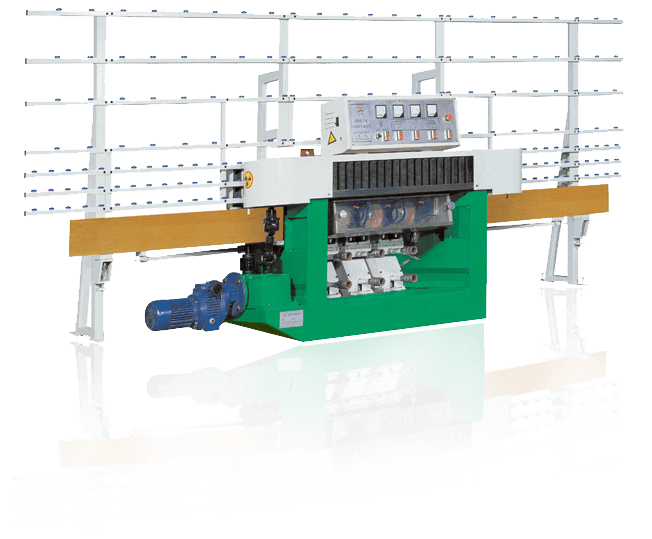

Budget G-VPE-3319 Is An Inductory Glass Pencil Edging Machine
  • G-VPB-3319 glass round edging machine produces round edge, OG edge, waterfall & other profile edges
  • Budget glass pencil edging machine with 3 spindles & peripheral wheels
  • Motor driven front rail beam moves in parallel regulating glass thickness
  • Glass working speed is adjustable through speed regulator
  • Ammeters show wheels real time working status

Wheels Configuration

#3BK60 Peripheral Wheel for Glass Profile Polishing #2BK40 Peripheral Wheel for Glass Profile Polishing #1Metal Bond Diamond Peripheral Wheel for Coarse Glass Profile Grinding Positions
Peripheral Peripheral Peripheral Forms
BK60 BK40 Metal Diamond Materials
Polishing Polishing Coarse Grinding Applications
Φ150 Φ150 Φ150 OD Sizes (mm)
Φ22 Φ22 Φ22 ID
NA NA #150 Grit
AC 2.2 AC 2.2 AC 2.2 Motors Power (kW)
Mechanical (Optional pneumatic) Mechanical (Optional pneumatic) Mechanical Wheels Spindles Feeding
