Shape Glass Edging & Bevelling Machine

Features & Specs

Semi-Automatic Shape Glass Edging & Beveling Machines

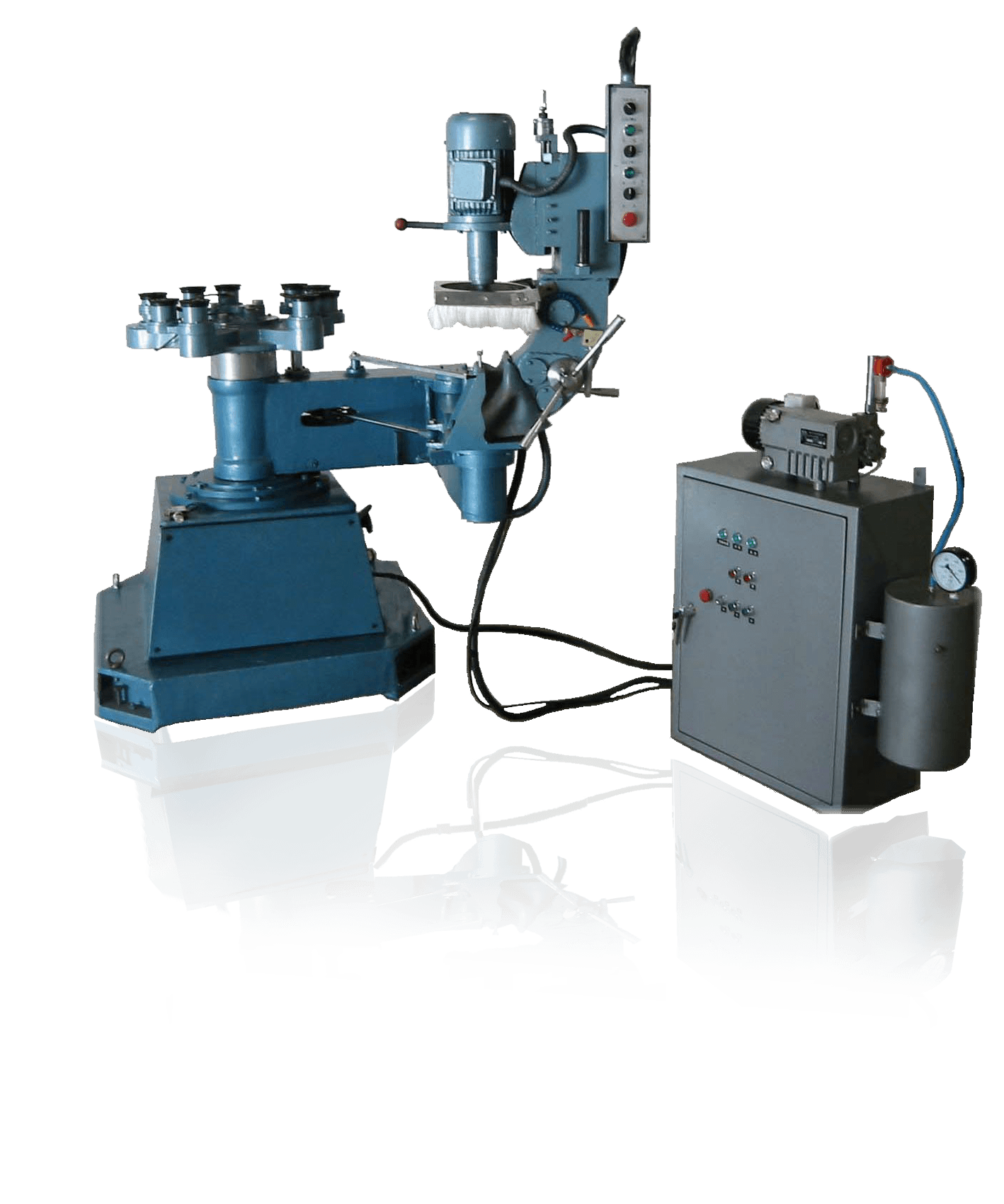

G-SEB-2100 Automatic Shape Edge & Bevel Round Glass

Features

  • 360o Freely Rotating Working Arm
  • Extendable Strong Working Arm Up To 2100mm
  • Spindle Holds 3 Peripheral Wheels At One Time Minimizing Wheels Changeover Time
  • First Class Casting Body
  • Process As Small As 110mm Glass
  • Table Rotating Speed Adjusted Infinitely With Regulator
  • Automatic Round Glass Or Close To Round Glass Processing
  • Dual Speed Spindle Motor

Specifications

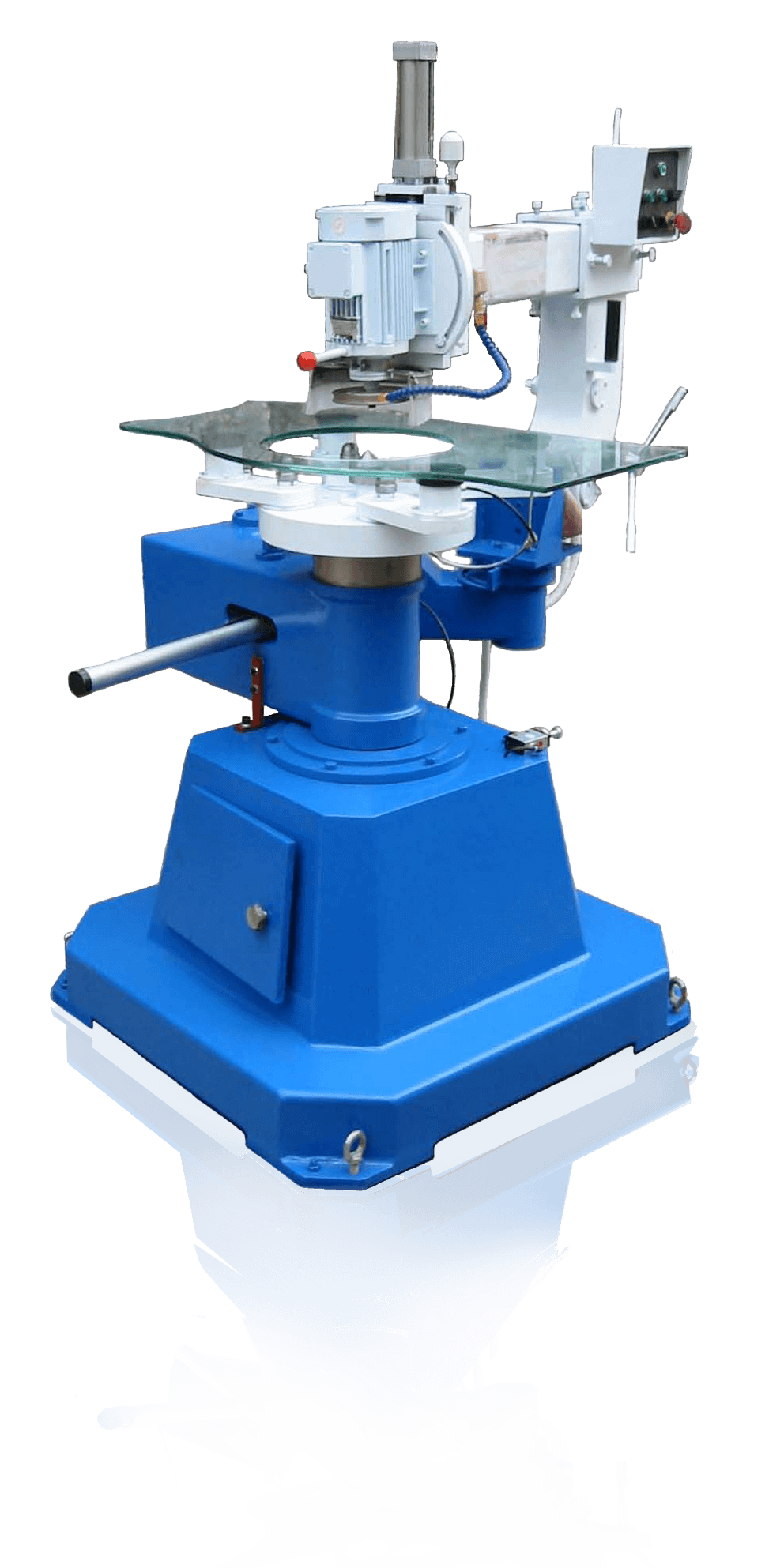

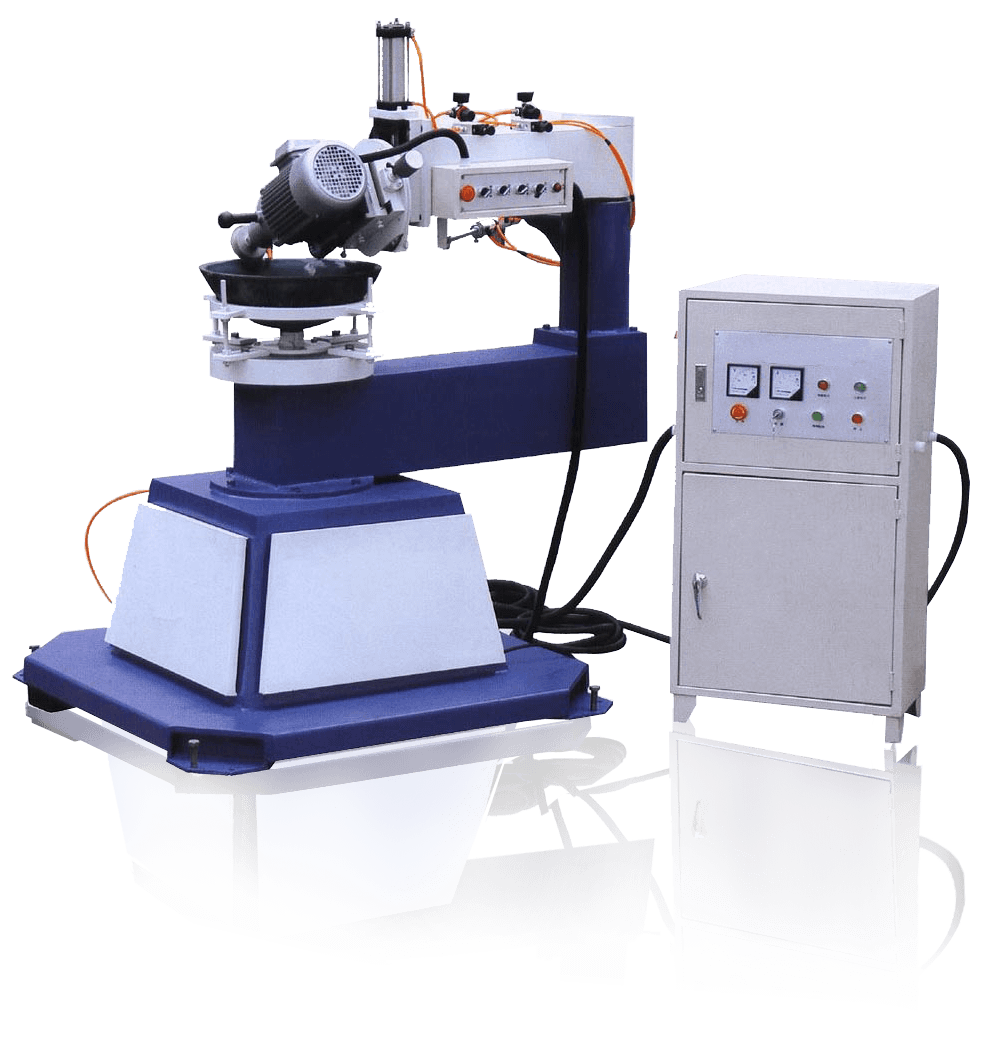

Models G-SEB-2100G-SEB-2100 Automatic Shape Edge & Bevel Round Glass G-SEB-1800DBoth-Exterior & Interior Shape Edges & Bevels Done By G-SEB-1800D G-SEB-SG-SEB-S Specially Design for Shape Edging of Glass Sinks & Basins
Applications Glass Exterior Glass Exterior & Interior Upward Glass Edges & Glass Interior & Exterior
Edge Profiles Bevel / Flat & Arris / Pencil / OG, etc. Flat & Arris / Pencil / OG, etc.
Nr. Of wheels hold by Spindle 3 Peripheral Wheels or 1 Cup Wheel
Glass Thickness 3 ~ 25 mm
Glass Exterior Diagonal 700 ~ 2100 mm
110 ~ 700 mm (with Small Suction Cup Platform)
110 ~ 2100 mm 500 ~ 1600 mm
Max. Interior Diagonal NA 750 mm 50 ~ 700 mm
Bevel Width 0 ~ 30 mm NA
Bevel Angle 3º ~ 20º NA
Table Rotating Speed 0 ~ 6.5 RPM 1 ~ 4 RPM
Table Rotating Adjustment Hand wheel adjusted infinite speed regulator with high & low speeds main motor
Operation Round or Close to Round Automatic Automatic
Shape Manual Manual
Wheels Form Peripheral Flat & Arris / Pencil / Ogee, etc Flat & Arris / Pencil / Ogee, etc
Cup Bevel Flat Edge
Wheels Size Peripheral OD Φ175, Φ150 orΦ100mm / IDΦ22mm Φ75 / Φ100 /Φ175mm
Cup OD Φ150mm / ID Φ22mm Φ150
Spindle Motors Power 0.85 / 1.1 kW (High / Low Speed)
Water Pump Motor AC 0.25 kW
Compress Air Pressure 8 MPa
Total Power 2.9 kW 3 KW
Voltage AC 380V / 3 phase / 50Hz  (Others On Request)
Weight 1200 kg 1000 kg 1200 kg
Outer Dimension 1800(L) x 1900(W) x 2100(H) mm 2500(L) x 2500(W) x 2100(H) mm
