Features & Specs
Engrave Groove
It is compose of high molecular material with a mixture of aluminium oxide and silicon carbide etc. The high molecular material is carefully selected such that the wheel is high elastic but meanwhile, with super wearability and high strength. The metal compounds allow super cutting ability.
The elasticity allows the wheel in full contact with glass for complete polishing in any kind of grooving profile leaving no flaw on glass and thus, giving remarkable satin finish with the extra help of fine polishing powder.
Thanks to its rigidity, the shape shall not deform nor crack despite of glass edge cutting defect, machine vibration and improper operation.
The common edge processing is to use firstly metal bond diamond wheel, then secondly resin bond diamond wheel and finally engraving wheel.
Specifications

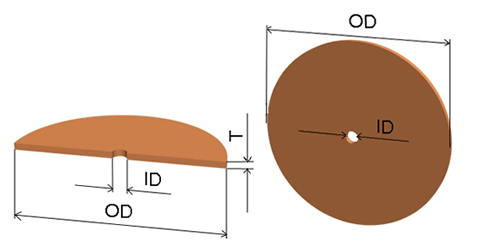

Item | OD | ID | T |
EA OD/ID/T | |||
EA 150/22/3 | 150 | 22 | 3 |
EA 150/22/5 | 150 | 22 | 5 |
EA 150/22/6 | 150 | 22 | 6 |
EA 150/22/8 | 150 | 22 | 8 |
EA 150/22/10 | 150 | 22 | 10 |
EA 150/22/12 | 150 | 22 | 12 |
EA 165/22/3 | 165 | 22 | 3 |
EA 165/22/5 | 165 | 22 | 5 |
EA 165/22/6 | 165 | 22 | 6 |
EA 165/22/8 | 165 | 22 | 8 |
EA 165/22/10 | 165 | 22 | 10 |
EA 165/22/12 | 165 | 22 | 12 |
EA 200/22/3 | 200 | 22 | 3 |
EA 200/22/5 | 200 | 22 | 5 |
EA 200/22/6 | 200 | 22 | 6 |
EA 200/22/8 | 200 | 22 | 8 |
EA 200/22/10 | 200 | 22 | 10 |
EA 200/22/12 | 200 | 22 | 12 |
Item | OD | ID | T |
EB OD/ID/T | |||
EB 150/22/3 | 150 | 22 | 3 |
EB 150/22/5 | 150 | 22 | 5 |
EB 150/22/6 | 150 | 22 | 6 |
EB 150/22/8 | 150 | 22 | 8 |
EB 150/22/10 | 150 | 22 | 10 |
EB 150/22/12 | 150 | 22 | 12 |
EB 165/22/3 | 165 | 22 | 3 |
EB 165/22/5 | 165 | 22 | 5 |
EB 165/22/6 | 165 | 22 | 6 |
EB 165/22/8 | 165 | 22 | 8 |
EB 165/22/10 | 165 | 22 | 10 |
EB 165/22/12 | 165 | 22 | 12 |
EB 200/22/3 | 200 | 22 | 3 |
EB 200/22/5 | 200 | 22 | 5 |
EB 200/22/6 | 200 | 22 | 6 |
EB 200/22/8 | 200 | 22 | 8 |
EB 200/22/10 | 200 | 22 | 10 |
EB 200/22/12 | 200 | 22 | 12 |
