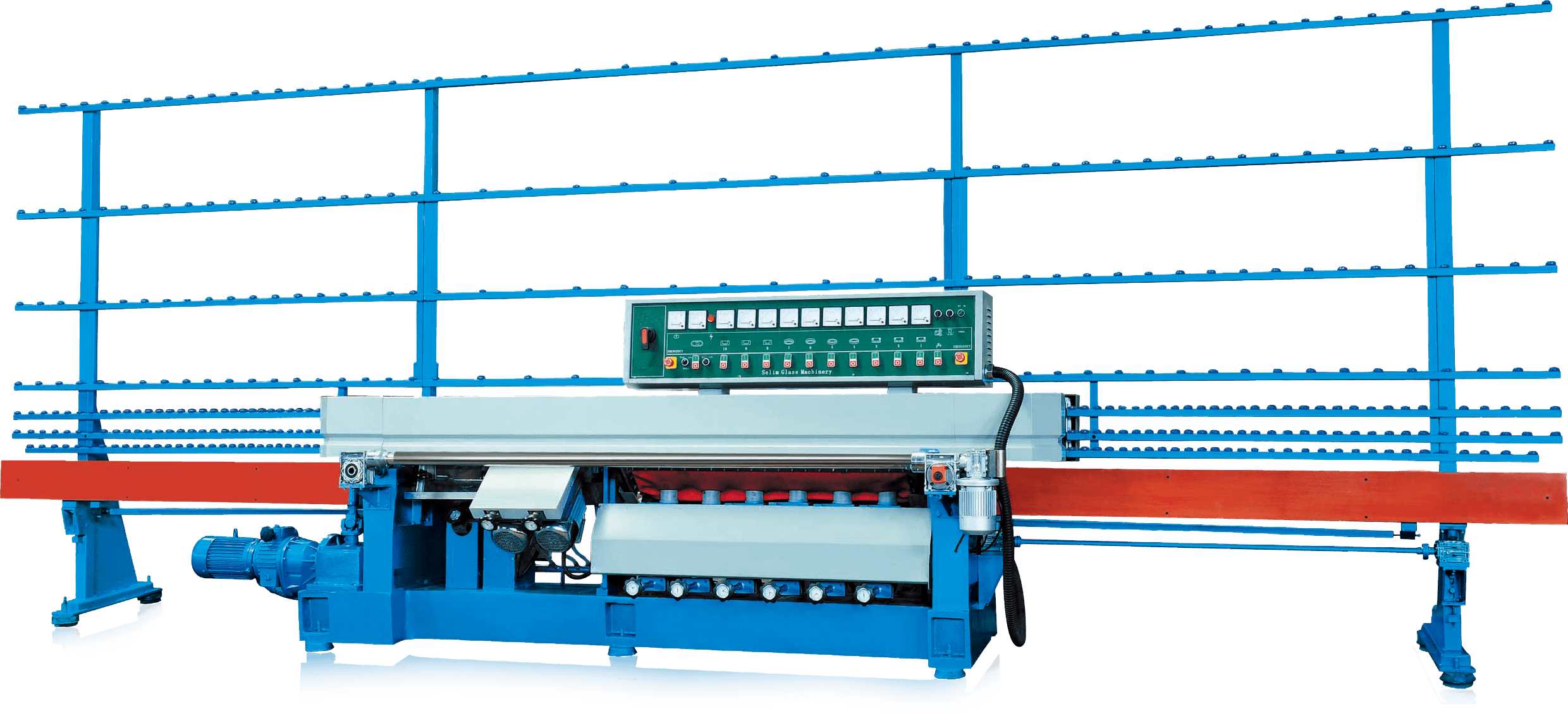

Vertical Straight Line Glass Mitering & Edging Machine

Features

G-VME-10M

Highlights

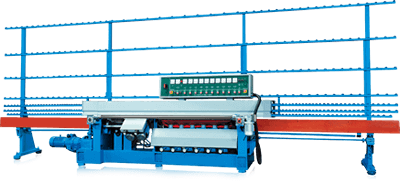

Spindles G-VME-10M Is a Budget Vertical Glass Mitering & Edging Machine
  • 10 spindles glass miter edging & polishing machine
  • 6 spindles for mitering & edging spindles and 4 seaming spindles
  • Mitering angle from 0° ~ 45°
  • Chain conveying system
  • Glass travel speed regulated by infinite regulator
  • Glass loading up to 250 kg
  • All mechanical spindle feeding for easy maintenance
  • Mitering as small as 120 mm glass width
  • Process as thick as 26 mm glass

Wheels Configuration

#1010S40 Cup Wheel for Glass Rear Arris Polishing #9Resin Bond Diamond Cup Wheel for Glass Front Arris Fine Grinding #810S40 Cup Wheel for Glass Front Arris Polishing #7Resin Bond Diamond Cup Wheel for Glass Rear Arris Fine Grinding #6CE3 Cup Wheel for Glass Mitering Flat Edge Fine Polishing #510S40 Cup Wheel for Glass Mitering Flat Edge Polishing #4Resin Bond Diamond Cup Wheel for Glass Mitering Flat Edge Fine Grinding #3Resin Bond Diamond Cup Wheel for Glass Mitering Flat Edge Fine Grinding #2Metal Bond Diamond Cup Wheel for Glass Mitering Flat Edge Coarse Grinding #1Metal Bond Diamond Cup Wheel for Glass Mitering Flat Edge Coarse Grinding Positions
Cup Cup Cup Cup Cup Cup Cup Cup Cup Cup Forms
10S40 Resin Diamond 10S40 Resin Diamond CE3 10S40 Resin Diamond Resin Diamond Metal Diamond Metal Diamond Materials
Front Arris Polishing Front Arris Fine Grinding Rear Arris Polishing Rear Arris Fine Grinding Mitering Flat Edge Polishing Mitering Flat Edge Polishing Mitering Flat Edge Fine Grinding Mitering Flat Edge Fine Grinding Mitering Flat Edge Coarse Grinding Mitering Flat Edge Coarse Grinding Applications
Φ130 Φ130 Φ130 Φ130 Φ150 Φ150 Φ150 Φ150 Φ150 Φ150 OD Sizes (mm)
Φ50 Φ50 Φ50 Φ50 Φ50 Φ50 Φ50 Φ50 Φ50 Φ50 ID
NA #150 NA #150 NA NA #320 #240 #240 #100 Grit
AC 1.5 AC 1.5 AC 1.5 AC 1.5 AC 1.5 AC 2.2 AC 2.2 AC 2.2 AC 2.2 AC 2.2 Motors Power (kW)
Pneumatic Mechanical Pneumatic Mechanical Pneumatic Pneumatic Mechanical Mechanical Mechanical Mechanical Wheel Spindles Feeding
