Features

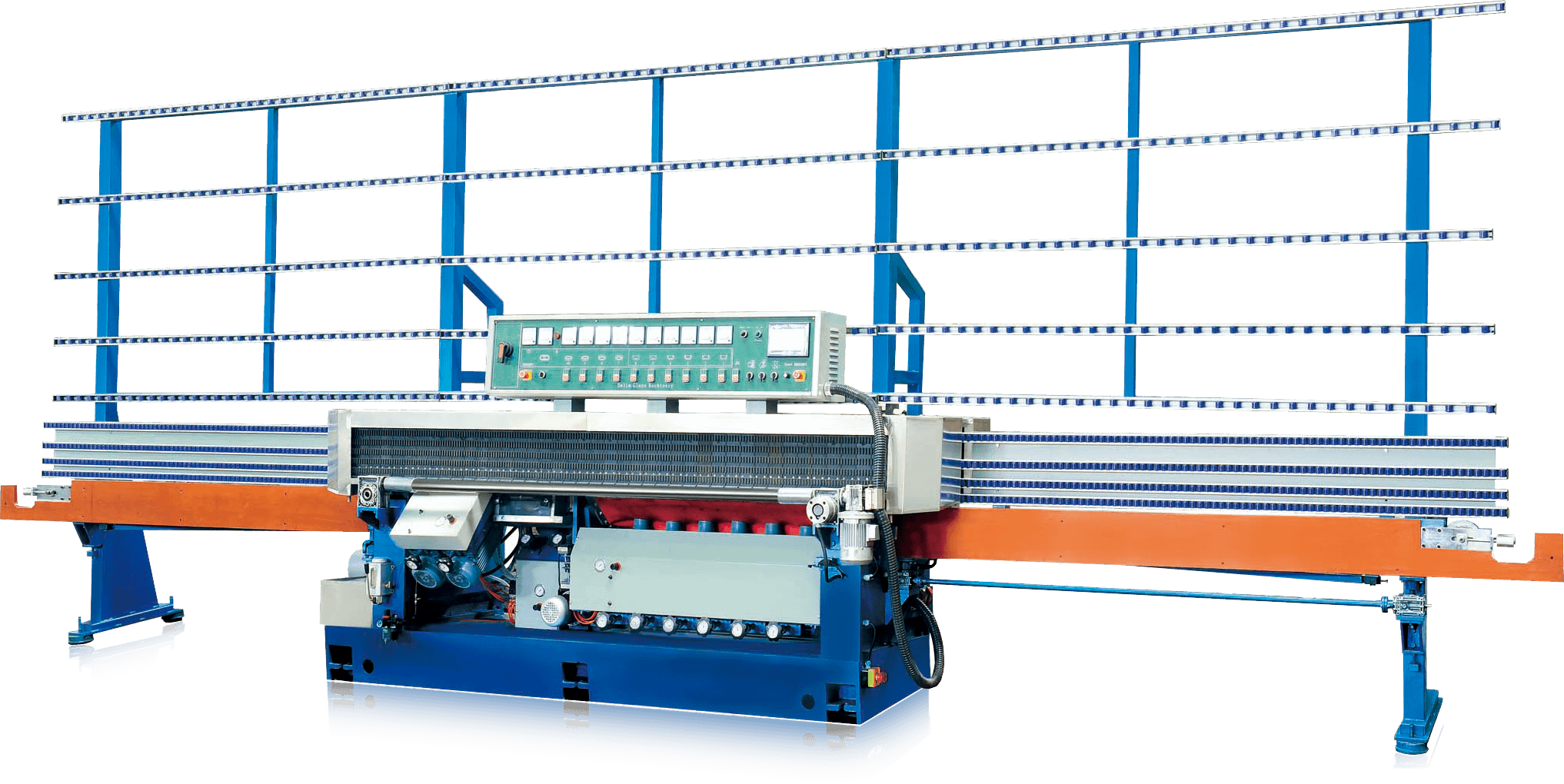

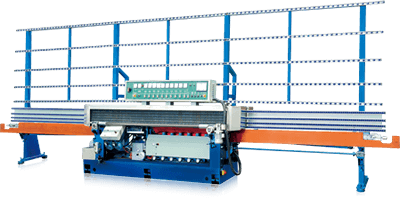

G-VME-10A
Highlights
- 10 spindles chainless glass miter edging & polishing machine
- 6 spindles for mitering & edging spindles and 4 seaming spindles
- Mitering angle from 0° ~ 45°
- High precision chainless bearing conveying system
- HMI human machine operator interface for fast and easy operation parameters input
- Full feature PLC
- Glass thickness displayed digitally adjusted by encoder with AC motor controlled by PLC
- Glass travel speed regulated with frequency inverter
- Glass loading up to 700 kg
- Pneumatic cylinders for polishing spindles
- Mitering as small as 60 mm glass strip
- Process as thick as 30 mm glass (optional 40 mm)
Wheels Configuration
#10 |
#9 |
#8 |
#7 |
#6 |
#5 |
#4 |
#3 |
#2 |
#1 |
Positions | |
| Cup | Cup | Cup | Cup | Cup | Cup | Cup | Cup | Cup | Cup | Forms | |
| 10S40 | Resin Diamond | 10S40 | Resin | CE3 | 10S40 | Resin Diamond | Resin Diamond | Metal Diamond | Metal Diamond | Materials | |
| Front Arris Polishing | Front Arris Fine Grinding | Rear Arris Polishing | Rear Arris Fine Grinding | Mitering Flat Edge Polishing | Mitering Flat Edge Polishing | Mitering Flat Edge Fine Grinding | Mitering Flat Edge Fine Grinding | Mitering Flat Edge Coarse Grinding | Mitering Flat Edge Coarse Grinding | Applications | |
| Φ150 | Φ150 | Φ130 | Φ130 | Φ150 | Φ150 | Φ150 | Φ150 | Φ150 | Φ150 | OD | Sizes (mm) |
| Φ50 | Φ50 | Φ50 | Φ50 | Φ50 | Φ50 | Φ50 | Φ50 | Φ50 | Φ50 | ID | |
| NA | #180 | NA | #180 | NA | NA | #320 | #240 | #240 | #100 | Grit | |
| AC 1.75 | AC 1.75 | AC 1.75 | AC 1.75 | AC 1.5 | AC 2.2 | AC 2.2 | AC 2.2 | AC 2.2 | AC 2.2 | Motors Power (kW) | |
| Pneumatic | Mechanical | Pneumatic | Mechanical | Pneumatic | Pneumatic | Mechanical | Mechanical | Mechanical | Mechanical | Wheel Spindles Feeding | |
