Autoclave-Free PVB Glass Laminating Oven

Features & Specs

Specifications

  • 1700 x 3660mm
  • 1700 x 5000mm
  • 1700 x 6100mm
  • 2440 x 3660mm
  • 2440 x 5000mm
  • 2440 x 6100mm
  • 3100 x 6100mm

Max. Glass Size: 1700 x 3660mm

Models AF-PVB-GLO-

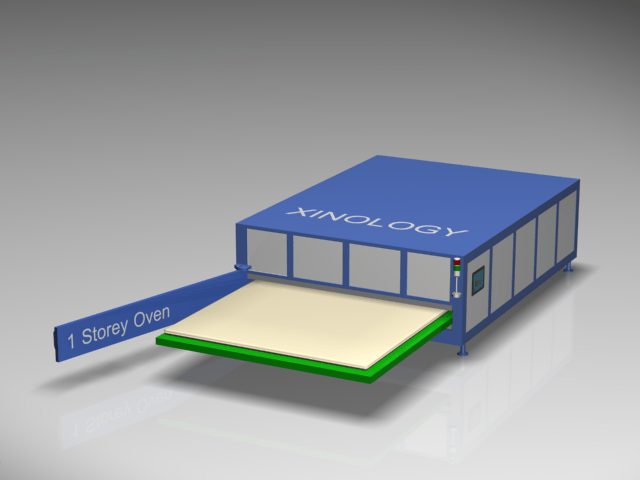

(1)-1736Single Drawer PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-

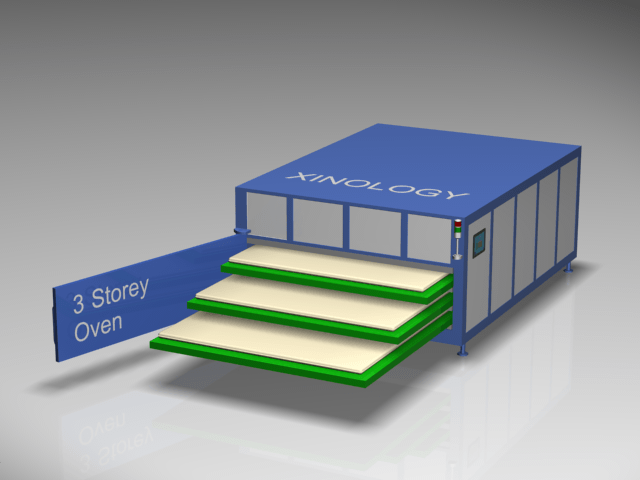

(3)-1736Three-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-

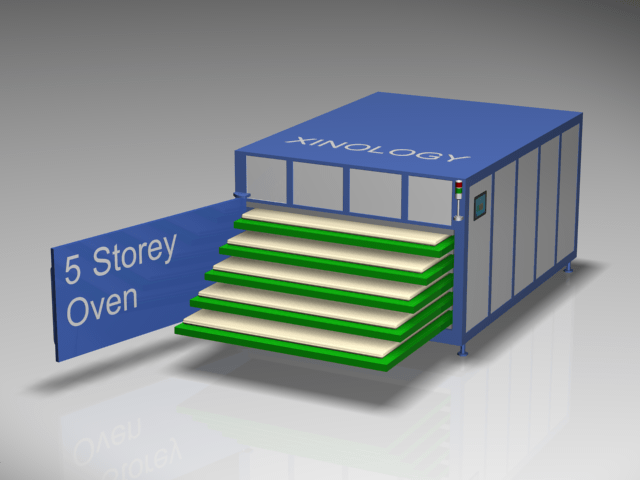

(5)-1736Five-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-

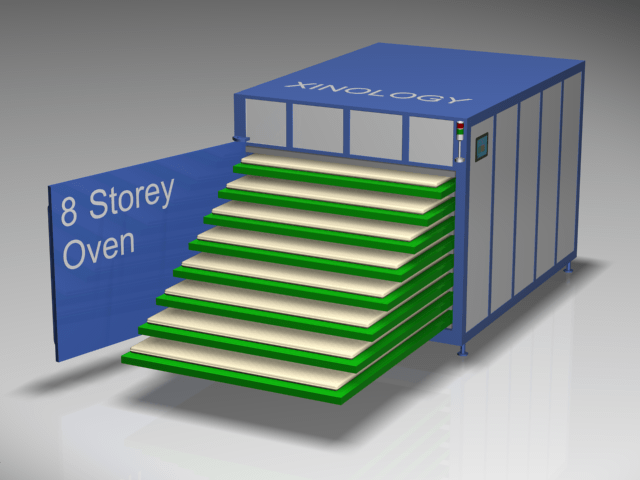

(8)-1736Eight-Drawers PVB Glass Laminating Oven Free of Autoclave
Nr. Of Drawers 1 3 5 8
Nr. Of Silicon Blankets 1 3 5 8
Drawer Supported by Rail Rack Rail Rack Scissors Lift (Optional) Scissors Lift (Optional)
Productivity per Batch (Base on 90% Loading Efficient & Total Glass Thickness 100mm) 56 m2 168 m2 280 m2 448 m2
Compress Air Air Quantity 0.1 ~ 0.3 m3 0.1 ~ 0.3 m33 0.1 ~ 0.3 m33 0.1 ~ 0.3 m33
Air Pressure 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa
Voltage 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request)
Power 30 KW 53 KW 78 KW 113 KW
Weight 5 Tons 6.9 Tons 9.2 Tons 14 Tons
Outer dimension Length 4700 mm 4700 mm 4700 mm 4700 mm
Width 2250 mm 2250 mm 2250 mm 2250 mm
Height 1700 mm 2100 mm 2100 mm 2100 mm

Max. Glass Size: 1700 x 5000mm

Models AF-PVB-GLO-
(1)-1750Single Drawer PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(3)-1750Three-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(5)-1750Five-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(8)-1750Eight-Drawers PVB Glass Laminating Oven Free of Autoclave
Nr. Of Drawers 1 3 5 8
Nr. Of Silicon Blankets 1 3 5 8
Drawer Supported by Rail Rack Rail Rack Scissors Lift (Optional) Scissors Lift (Optional)
Productivity per Batch (Base on 90% Loading Efficient & Total Glass Thickness 100mm) 76 m2 228 m2 376 m2 608 m2
Compress Air Air Quantity 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3
Air Pressure 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa
Voltage 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request)
Power 32 KW 70 KW 102 KW 155 KW
Weight 6 Tons 7.5 Tons 10.5 Tons 15 Tons
Outer dimension Length 5850 mm 5850 mm 5850 mm 5850 mm
Width 2250 mm 2250 mm 2250 mm 2250 mm
Height 1700 mm 2100 mm 2100 mm 2100 mm

Max. Glass Size: 1700 x 6100mm

Models AF-PVB-GLO-
(1)-1761Single Drawer PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(3)-1761Three-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(5)-1761Five-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(8)-1761Eight-Drawers PVB Glass Laminating Oven Free of Autoclave
Nr. Of Drawers 1 3 5 8
Nr. Of Silicon Blankets 1 3 5 8
Drawer Supported by Rail Rack Rail Rack Scissors Lift (Optional) Scissors Lift (Optional)
Productivity per Batch (Base on 90% Loading Efficient & Total Glass Thickness 100mm) 93 m2 279 m2 465 m2 744 m2
Compress Air Air Quantity 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3
Air Pressure 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa
Voltage 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request)
Power 42 KW 82 KW 121 KW 170 KW
Weight 7.2 Tons 9 Tons 12.6 Tons 18 Tons
Outer dimension Length 7000 mm 7000 mm 7000 mm 7000 mm
Width 2250 mm 2250 mm 2250 mm 2250 mm
Height 1700 mm 2100 mm 2100 mm 2100 mm

Max. Glass Size: 2440 x 3660mm

Models AF-PVB-GLO-
(1)-2436Single Drawer PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(3)-2436Three-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(5)-2436Five-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(8)-2436Eight-Drawers PVB Glass Laminating Oven Free of Autoclave
Nr. Of Drawers 1 3 5 8
Nr. Of Silicon Blankets 1 3 5 8
Drawer Supported by Rail Rack Rail Rack Scissors Lift (Optional) Scissors Lift (Optional)
Productivity per Batch (Base on 90% Loading Efficient & Total Glass Thickness 100mm) 80 m2 240 m2 400 m2 640 m2
Compress Air Air Quantity 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3
Air Pressure 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa
Voltage 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request)
Power 38 KW 70 KW 102 KW 155 KW
Weight 6 Tons 7.5 Tons 10.5 Tons 15 Tons
Outer dimension Length 4700 mm 4700 mm 4700 mm 4700 mm
Width 3100 mm 3100 mm 3100 mm 3100 mm
Height 1700 mm 2100 mm 2100 mm 2100 mm

Max. Glass Size: 2440 x 5000mm

Models AF-PVB-GLO-
(1)-2450Single Drawer PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(3)-2450Three-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(5)-2450Five-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(8)-2450Eight-Drawers PVB Glass Laminating Oven Free of Autoclave
Nr. Of Drawers 1 3 5 8
Nr. Of Silicon Blankets 1 3 5 8
Drawer Supported by Rail Rack Rail Rack Scissors Lift (Optional) Scissors Lift (Optional)
Productivity per Batch (Base on 90% Loading Efficient & Total Glass Thickness 100mm) 109 m2 327 m2 545 m2 872 m2
Compress Air Air Quantity 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3
Air Pressure 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa
Voltage 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request)
Power 48 KW 95 KW 138 KW 200 KW
Weight 8.4 Tons 10.5 Tons 14.7 Tons 21 Tons
Outer dimension Length 5900 mm 5900 mm 5900 mm 5900 mm
Width 3100 mm 3100 mm 3100 mm 3100 mm
Height 1700 mm 2100 mm 2100 mm 2100 mm

Max. Glass Size: 2440 x 6100mm

Models AF-PVB-GLO-
(1)-2461Single Drawer PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(3)-2461Three-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(5)-2461Five-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(8)-2461Eight-Drawers PVB Glass Laminating Oven Free of Autoclave
Nr. Of Drawers 1 3 5 8
Nr. Of Silicon Blankets 1 3 5 8
Drawer Supported by Rail Rack Rail Rack Scissors Lift (Optional) Scissors Lift (Optional)
Productivity per Batch (Base on 90% Loading Efficient & Total Glass Thickness 100mm) 134 m2 402 m2 670 m2 1072 m2
Compress Air Air Quantity 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3
Air Pressure 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa
Voltage 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request)
Power 60 KW 115 KW 175 KW 220 KW
Weight 10 Tons 12.6 Tons 17.7 Tons 25.2 Tons
Outer dimension Length 7000 mm 7000 mm 7000 mm 7000 mm
Width 3100 mm 3100 mm 3100 mm 3100 mm
Height 1700 mm 2100 mm 2100 mm 2100 mm

Max. Glass Size: 3100 x 6100mm

Models AF-PVB-GLO-
(1)-3161Single Drawer PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(3)-3161Three-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(5)-3161Five-Drawers PVB Glass Laminating Oven Free of Autoclave		 AF-PVB-GLO-
(8)-3161Eight-Drawers PVB Glass Laminating Oven Free of Autoclave
Nr. Of Drawers 1 3 5 8
Nr. Of Silicon Blankets 1 3 5 8
Drawer Supported by Rail Rack Rail Rack Scissors Lift (Optional) Scissors Lift (Optional)
Productivity per Batch (Base on 90% Loading Efficient & Total Glass Thickness 100mm) 170 m2 510 m2 850 m2 1360 m2
Compress Air Air Quantity 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3 0.1 ~ 0.3 m3
Air Pressure 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa 0.6 ~ 0.8 MPa
Voltage 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request) 380 V / 3 phase / 50Hz (others on request)
Power 77 KW 144 KW 175 KW 220 KW
Weight 14 Tons 16.5 Tons 20 Tons 28 Tons
Outer dimension Length 7000 mm 7000 mm 7000 mm 7000 mm
Width 3700 mm 3700 mm 3700 mm 3700 mm
Height 1700 mm 2100 mm 2100 mm 2100 mm
