Overview
Introduction
EVA
EVA Film Is A Revolutionary New Type Of Interlayer For Glass And Plastic Sheet Lamination And Encapsulation Without Autoclaving
- EVA stands for ethylene vinyl acetate.
- It is a thermoplastic copolymer resin.
- EVA resin, together with a number of ingredients, is heated and mixed thoroughly and is then extruded through a flat die of a special design plastic extruding machine.
- EVA film is then formed. It is finally wind up in roll for storage and packing.
- Xinology EVA interlayer film contains no plasticizer.
- This extraordinary adhesive film is non-sticky and inert to water moisture.
- Handling and glass assembly could be done under room temperature. No air conditioner and no de-humidifier are required.
EVA Instead of PVB
It Is Proved To Be One Of The Best Alternatives To Costly PVB
- Traditional glass lamination and encapsulation is made by sandwiching PVB interlayer film in between two pieces of glass.
- It is then final bonded with autoclave. EVA glass lamination could be done without autoclave.
- This new type of process requires also no roller press, no vacuum bags and no rubber rings.

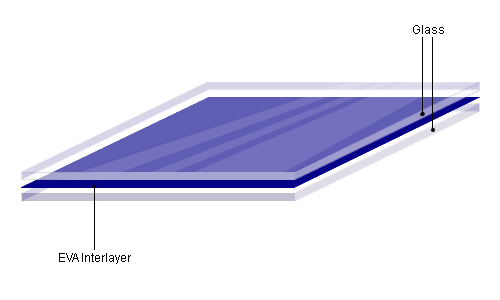

- Similar to PVB, EVA is also sandwiched in between two pieces of glass.
- Thanks to the advance and update technology process, however, production equipments and relevant process for EVA glass lamination is much easier and simple than conventionally PVB lamination.
- Only one single machine is required to fabricate EVA laminated glass.
EVA Becomes Popular
More Glass Fabricators Employ EVA To Be The Priority Interlayer For Glass Lamination And Encapsulation
- As glass design for furnishing, decoration and building becomes more and more sophisticated, versatile glass with better aesthetic visual effect and functions are required drastically at low cost.
- EVA laminated glass meets the requests that simply could not be done or at high cost previously.
- As more designers are well aware the versatility of EVA laminated glass, it is getting more popular.
- EVA laminated glass begins to play significant role for architects, interior and environmental designers.
EVA Classifications
Xinology EVA Film Is Classified In Several Categories

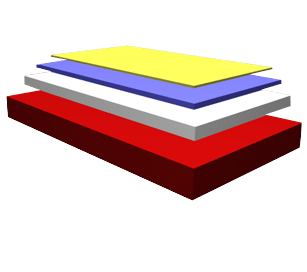

Available in 3 Kinds of Thickness
- 0.25mm
- 0.38mm
- 0.76mm
Available in 30 Colors and Transparencies
- From standard clear to super clear
- From light white to deep white
- From transparent red to transparent black
- From translucent orange to translucent blue
- From opaque yellow to opaque purple
Available For Versatile Applications
- Furnishing, decoration and architectural for both general purpose and outdoor purpose
- Encapsulation for special types of glass such as PDLC smart, intelligent and privacy glass
- Encapsulation for photovoltaic solar panel
