EVA Interlayer

Features

Introduction


EVA film is a revolutionary new type of interlayer for glass and plastic sheet lamination and encapsulation. It is one of the best alternatives to costly PVB due to quite a number of advantages.

EVA stands for ethylene vinyl acetate. EVA resin, together with a number of ingredients, is heated and mixed thoroughly and is then extruded through a flat die of a special design plastic extruding machine. EVA film is then formed. It is finally wind up in roll for storage and packing.

This extraordinary adhesive is non-sticky and inert to water moisture. Handling and glass assembly could be done under room temperature. No air conditioner and no de-humidifier are required.

Properties

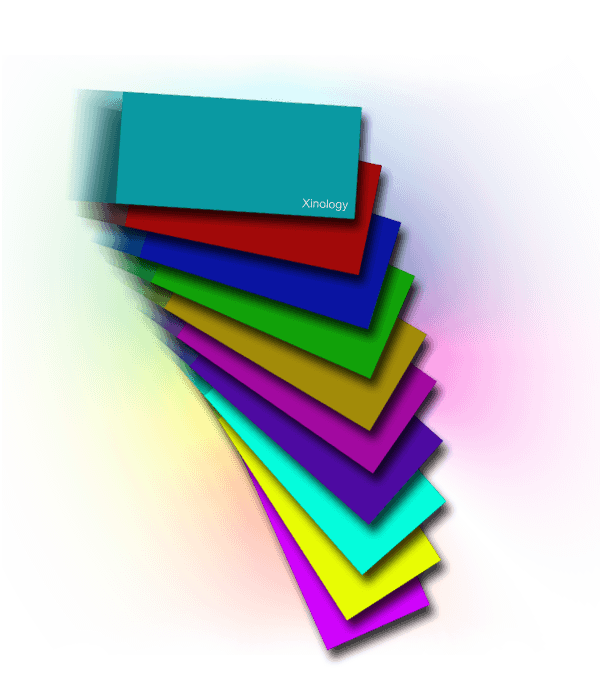

Xinology-EVA-Films-Has-Various-Characteristics-Suitable-For-Laminated-Glass-Manufacturing.png
  • EVA is a thermoplastic copolymer
  • It contains no plasticizers

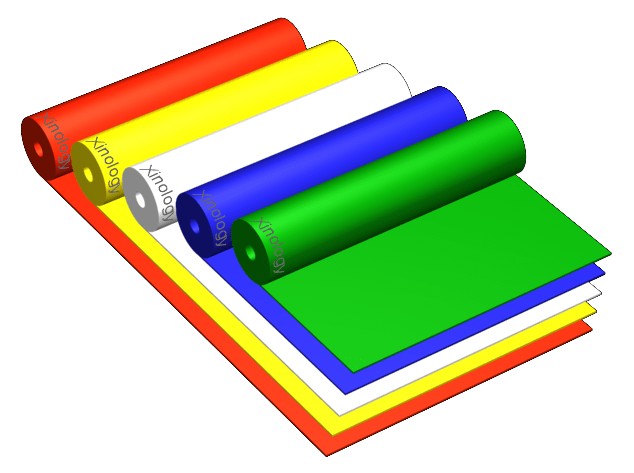

  • Clear films available in different transparency
  • White films available in different whiteness
  • Available in different colours
  • Color films available in clear, translucent and opaque
  • Special EVA films available for PDLC and photovoltaic solar panel encapsulation
  • Extraordinary adhesive
  • Outstanding tensile strength
  • Remarkable elongation
  • Inert to water moisture
  • Thermo-proof
  • Acoustic proof
  • Low haze for selected film
  • Anti-UV for selected film
  • Low process temperature
  • Super high visible light transmission for selected film
  • Non-sticky under room temperature
  • Lamination could be done by various processes such as silicon pad, vacuum bag, vacuum ring and roller press, etc
  • Handling, storage and glass assembly done under room temperature
  • Excellent adhesion to glass and plastic sheets such polycarbonate
  • Compatible to various materials such as woven & non-woven fabric, paper, PET, glass fiber and metal, etc

Technical Data

Description EVA Film
Density 0.97 g/cm3
Bonding Temperature ≤ 100℃
Bond strength ≥ 3 kg/cm
Flow Temperature 80℃
Flow Rate 1.2 cm3/s℃
Haze Rate ≤ 5% (Series T)
≤ 1% (Series CT)
Visible Light Transmission ≥ 85%
UV Screening 98%
Luminous Efficiency 87%
Water Absorption (23℃ for 24 hrs) 0.1%
Tensile Strength at Break 290 kg/cm2
Luminous Efficiency 2340 kg/cm2

Handling

  • Cutting should be done with clean hand and proper tool
  • Avoid from contamination

Storage

  • Stored at 30℃ or below
  • Keep away from sunlight
  • Keep away from heat source
  • Keep dry
  • Avoid sting
  • Avoid pressing with hard objects
  • After cutting, remaining EVA roll should be packed and sealed properly if it would not be used for a long period
