Insulated Glass Production Line With Rubber Spacer Strip

Features

Structure

Introduction

IG-L-RS Rubber Strip Insulating Glass Line Consists of Few Low Cost Machines

Making High Quality Insulated Glass With Low Cost Machines

Washing Machine


It is a horizontal glass washing machine with entry table, two pairs of cylindrical brushes, one water tank, one pair of sponge roller, one blower with a pair of air knife and exit table. A motorized mechanism is used to drive all cylindrical rollers all the way from washing section till drying section.

Floating Table


This table is used to put rubber strip around glass rim. It is a table structure covered with felt. Table surface is full of tiny holes. There is air blower beneath the table. Air ducts are connected between air blower and tiny holes. There is a center hole on table. Vacuum suction cup located beneath the table. It goes above table and retreats down through center hole. Vacuum cup is also freely self rotate. A turntable is beneath table side. It is used to hold rubber strip coil.

Tilting Table


This is the table where two glass panes are assembled together separated with rubber strip. It is a ball caster structure with welded tubular metal. It is divided into two parts. The lower part is a fix metal structure. Upper part is a tiltable structure with many idle caster balls. It is strongly hinged to lower part allowing safety glass tilting. A pneumatic system is used to tilt the ball castor table.

Hot Rollers Press

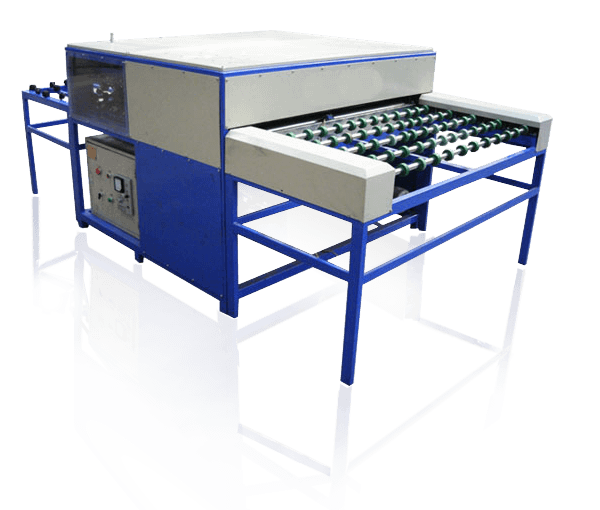

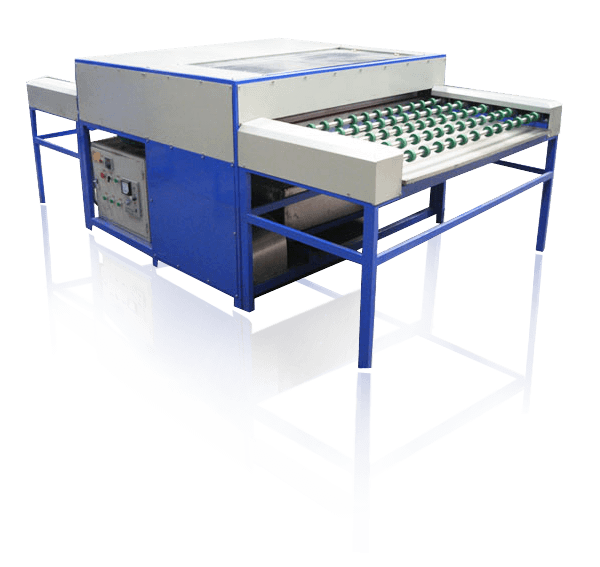

It is used to heat and press the double glazing unit for final seal. It is a cylindrical roller conveying structure machine. It consists of four sections, entry table, heating section, rollers pressing section and exit table. In heating section, there are heating resistors above and beneath conveying rollers. In pressing section, there is a pair of press roller. One is on top and another bottom. Heavy duty press rollers are strong enough to exert necessary pressure to seal insulated glass. Meanwhile, press roller is specially treated such that it is elastic enough not to break the glass.
