Washing, Assembly, Pressing Insulating Line with Aluminum Spacer Bar

Features

Structure

Introduction

IG-L-AS-RP-H Is A Budget Production Line To Make Insulated Glass With Aluminium Spacer Bar At Lower Possible Cost

It consists of a washing machine, a ball castor conveyor, an assembly tilting table and a roller press machine.


Washing Machine

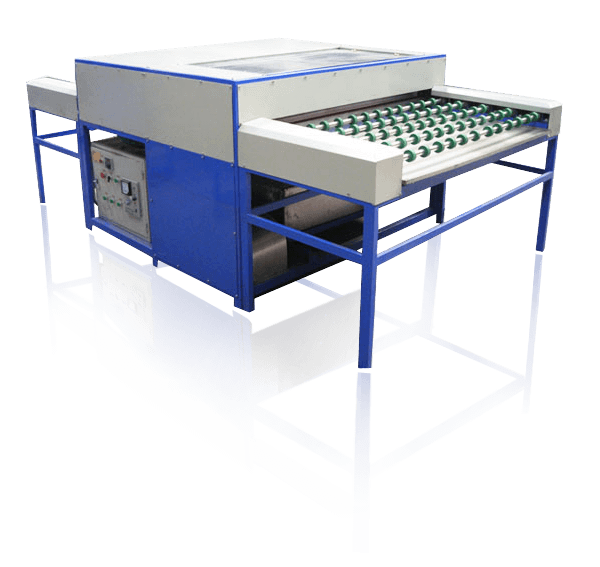

Horizontal Glass Washing Drying Machine

It is a horizontal glass washing machine with entry table, two pairs of cylindrical brushes, one water tank, one pair of sponge roller, one blower with a pair of air knife and exit table. A motorized mechanism is used to drive all cylindrical rollers all the way from washing section till drying section.

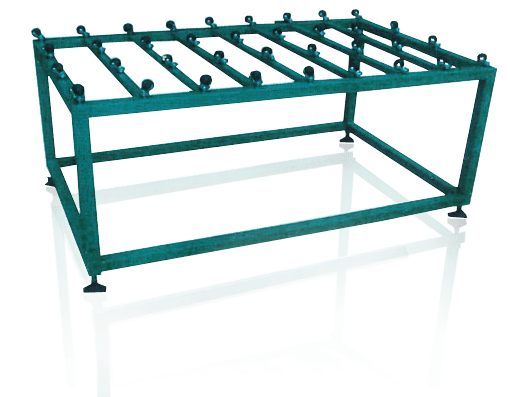

Conveyor


Glass exits from washing machine and arrives at this metal structure conveyor with castor balls. It is parked here and is waited to be loaded on subsequent tilting table.

Tilting Table


This is the table where two glass panes are assembled together separated with spacer frame. It is a ball caster structure with welded tubular metal. It is divided into two parts. The lower part is a fix metal structure. Upper part is a tiltable structure with many idle caster balls. It is strongly hinged to lower part allowing safety glass tilting. A pneumatic system is used to tilt the ball castor table.

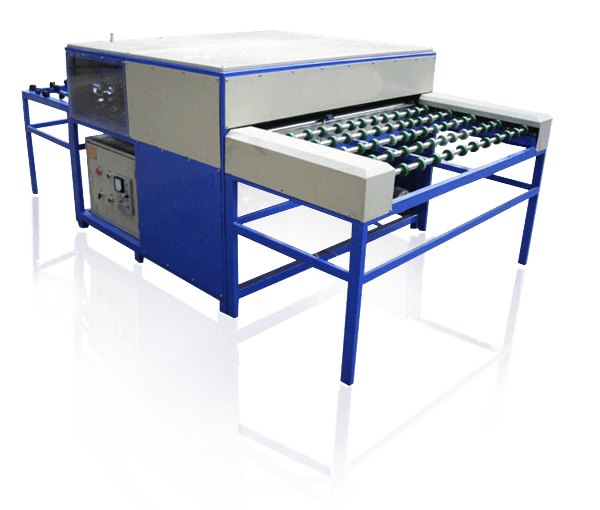

Rollers Press


It is used to press the double glazing unit for primary seal. It is a cylindrical roller conveying structure machine. It consists of three sections, entry table, rollers pressing section and exit table. In pressing section, there is a pair of press roller. One is on top and another bottom. Heavy duty press rollers are strong enough to exert necessary pressure to seal insulated glass. Meanwhile, press roller is specially treated such that it is elastic enough not to break the glass.
