Desiccant Filling Machine For Bend Spacer

Specifications

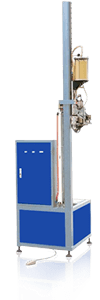

Model IG-DF-FADrills Holes, Fill Desiccant & Butyl Hole Seal of IG-DF-FA Are Done Fully Automatically IG-DF-SAIG-DF-SA Is  A Semi-Automatic Molecular Sieves Desiccant Loading Machine
Automatic Hole drill, desiccant fill & butyl hole seal Hole drill & desiccant fill
Manual NA Butyl hole seal
Max. Spacer Frame Size 2000 x 2000 mm 2000 x 2000 mm
Filling Speed 5 ~ 10 s (base on 1000 x 1000 mm with 8.5mm spacer) 6 ~ 10 s (base on 1000 x 1000 mm with 8.5mm spacer)
Spacer Width 5.5 ~ 23.5 mm 5.5 ~ 23.5 mm
Molecular Sieves Diameter 0.5 ~ 0.8 mm 0.5 ~ 0.8 mm
Desiccant Refill Yes Yes
Power 1 KW 0.8 KW
Voltage AC 380V / 3 phase / 50Hz
(others on request)
AC 380V / 3 phase / 50Hz
(others on request)
Compress Air 0.6 MPa 0.5 ~ 0.8 MPa
Weight 300 kg 260 kg
Outer Dimension 1100(L) x 1100(W) x 3900(H) mm 800(L) x 800(W) x 2800(H) mm
