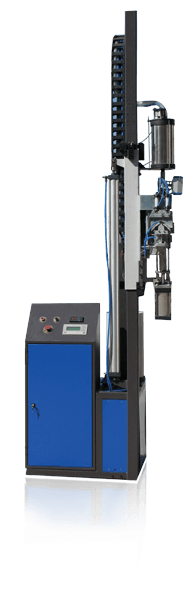

Desiccant Filling Machine For Bend Spacer

Features

IG-DF-FA

IG-DF-FA Designed To Punch Hole On Spacer Bar, Fill Bend Spacer Bars With Molecular Sieves & To Seal Hole With Butyl Fully Automatically

Drills Holes, Fill Desiccant & Butyl Hole Seal of IG-DF-FA Are Done Fully Automatically

Drilling

Sophisticated drilling technology ensures holes rim free of burr and chip. Special drilling bit makes hole in a second.

Filling

  • Loading height is adjustable according to spacer frame size.
  • Desiccant filling quantity depends on filling time which is set digitally.
  • Desiccant feeding is done by pneumatic. Desiccant is forced to fill up spacer cavity.
  • Desiccant loading is fast. It takes seconds to complete loading.
  • Spacer frame is also vibrated to ensure desiccant is piled up tightly inside spacer bar cavity.
  • When desiccant is fully filled, feeding is stopped automatically.
  • The machine is suitable for molecular sieves sizes most available in market.
  • Refilling of desiccant reservoir is done automatically.

Sealing

Holes are tightly seal by butyl. It is absolutely moisture proof and air proof.
