Features & Specifications
Butyl Tape
- Pre-extruded butyl tape
- Wind in disc for easy storage & handle
- Protected with thin film for further non-sticking handling & processing
- Perfect water & gas permeable proof
- No expansive butyl extruding machine required
- Easy apply on two sides of any spacer bars with simple IG-BTC butyl tape coating tool
- Coated on curve or shape spacer bars that butyl extruding machine simply could not achieve
- Standard 0.5mm thick butyl tape
- Thicker 0.7mm butyl tape is available when insulating tempered glass which is not perfectly flat
- Available in two types of elasticity

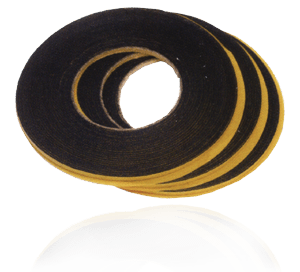

- BST-A is more elastic for one chance of assembly on glass (repeated positioning of spacer bar would damage butyl tape)

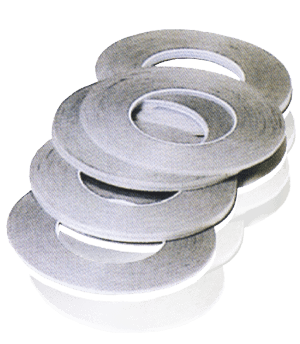

- BST-B is less elastic allowing repeated spacer bar positioning
- 2 years shell life when stored under dry & room temperature
Models | BST-A | BST-B |
Butyl Tape Width | 4 mm | |
Butyl Tape Thickness | 0.5 mm (optional 0.7 mm when glass is not flat enough or spacer bars are not straight enough) |
|
Elasticity | High | Low |
Applications | Use for Only One Chance of Spacer Bars Positioning on Glass | Allow Repeated Spacer Bars Positioning on Glass |
Protective Thin Film | Yes | |
Length / Disc | 25 m | 30 m |
Disc / Box | 400 discs | 200 discs |
Length / Box | 10000 m | 6000 m |
Weight / Box | ~ 12 kg | ~ 17 kg |
