Glass Vacuum Suction Cups Lifters

Features & Specs

CL-V-MC-4-A

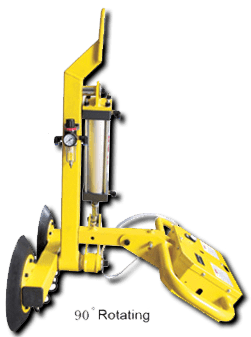

CL-V-MC-4-A Glass Manipulator Powered By 12V DC Rechargeable Battery and Pneumatic Rotate Glass 90 Degrees

Features

  • CE Certified
  • 12V DC Rechargeable Battery
  • Pneumatically 360o Rotating
  • Powerful Cups Handle Up To 200 Kg Loading With 2 Vacuum Cups
  • Automatic Sensor Real Time Detects Air Leak
  • Vacuum Pump Re-Started Within 0.5 Second Whenever There Is Air Leak
  • Compact Design Allows Flexible Movement At Worksite

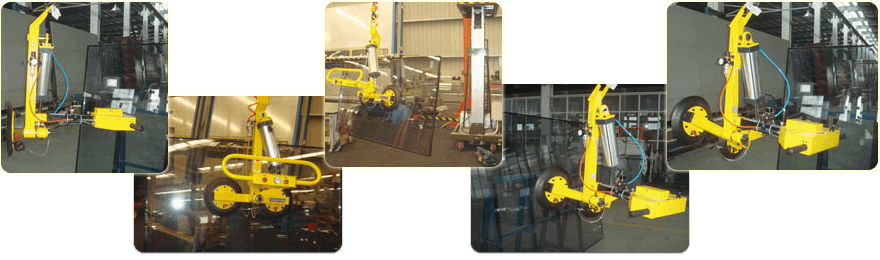

CL-V-MC-4-A Rotating Vacuum Cup Lifter at Glass Factory

Specifications

Models CL-V-MC-4-A
Max. Glass Loading 200 kg
Suction Cups 2
Glass Loading of Each Vacuum Cup 100 kg
90o Rotating Pneumatic
Power Source Compress Air
Charging Voltage AC 220V / AC 110V
Voltage DC 12 V / Two Batteries (For Sensor Only)
Outer Dimensions (Lx W x H) 750 x 300 mm
