Glass Vacuum Suction Cups Lifters

Features & Specs

CL-V-MC-3

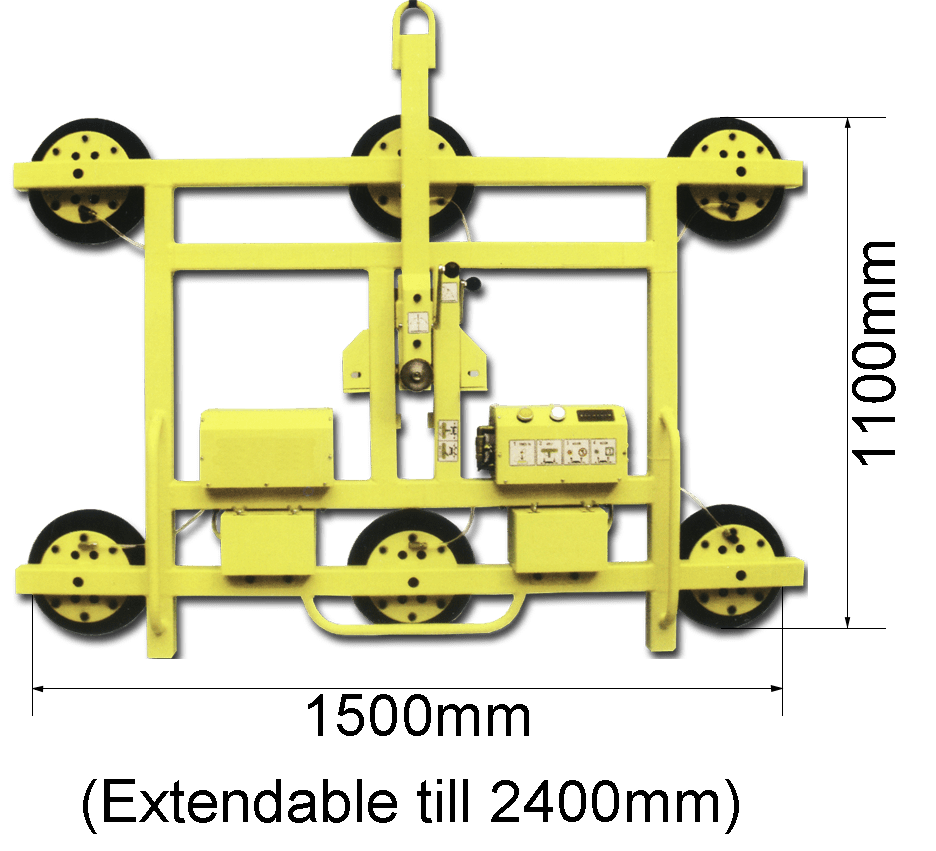

CL-V-MC-3 Vacuum Lifter with Rechargeable battery

Features

  • CE Certified
  • 12V DC Rechargeable Battery
  • Specially Design For Handing Of Glass With Thickness Less Than 6mm
  • Powerful Cups Handle Up To 350 Kg Loading With 6 Vacuum Cups
  • Necessary Handling Tools In Glass Fabricating Workshops & Glass Installation Sites
  • Automatic Sensor Real Time Detects Air Leak
  • Vacuum Pump Re-Started Within 0.5 Second Whenever There Is Air Leak
  • Compact Design Allows Flexible Movement At Worksite
  • Manual 360o Rotation
  • Manual 90o Tilting
CL-V-MC-3 Glass Vacuum Cup Lifter Worked at Glass Workshop

Specifications

Models CL-V-MC-3
Max. Glass Loading 350 kg
Suction Cups 6
Extendable Arms Optional
360o Rotation Manual
90o Tilting Manual
Charging Voltage AC 220V / AC 110V
Voltage DC 12 V / Two Batteries
Outer Dimensions (Lx W x H) 1500 x 1100 x 250 mm (Standard)
2400 x 1100 x 250 mm (Extended)
