Glass Vacuum Suction Cups Lifters

Features & Specs

CL-V-MC-2

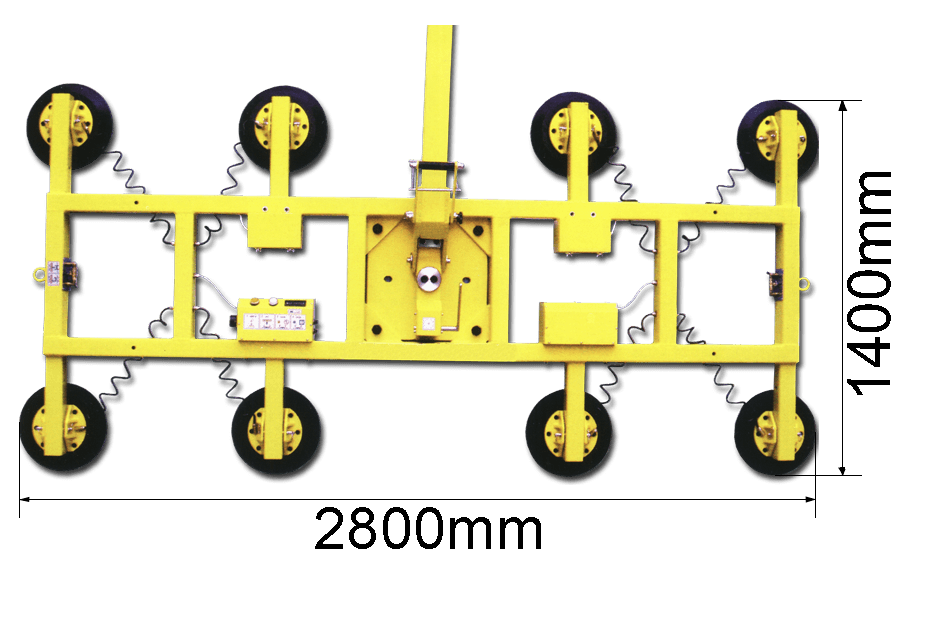

CL-V-MC-2 Vacuum Lifting Device Loaded Up to 800kg

Features

  • CE Certified
  • 12V DC Rechargeable Battery
  • Powerful Cups Handle Up To 800 Kg Loading With 8 Vacuum Cups
  • Necessary Handling Tools In Glass Fabricating Workshops & Glass Installation Sites
  • Each Vacuum Suction Cup Supports 100 Kg
  • Automatic Sensor Real Time Detects Air Leak
  • Vacuum Pump Re-Started Within 0.5 Second Whenever There Is Air Leak
  • Compact Design Allows Flexible Movement At Worksite
  • Manual 360o Rotation
  • Manual 90o Tilting(Optional Pneumatic Driven)
CL-V-MC-2 Vacuum Lifter at Curtain Wall Installation Site

Specifications

Models CL-V-MC-2
Max. Glass Loading 800 kg
Suction Cups 8
Glass Loading of Each Suction Cup 100 kg
360o Rotation Manual
(Non-Applicable when Optional Pneumatic Driven 90o Tilting is Chosen)
90o Tilting Manual
(Optional Pneumatic Driven)
Charging Voltage AC 220V / AC 110V
Voltage DC 12 V / Two Batteries
Outer Dimensions (Lx W x H) 2800 x 1400 x 250 mm
