Glass Vacuum Suction Cups Lifters

Features & Specs

CL-V-MC-2-Q

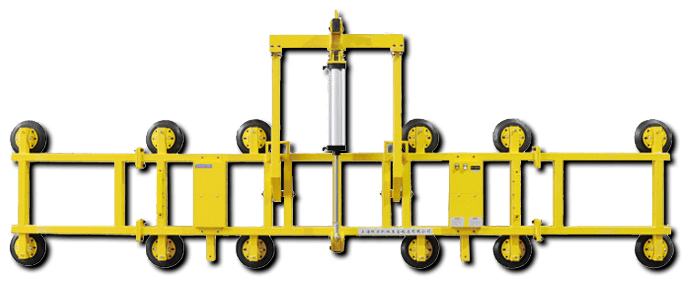

CL-V-MC-2-Q Heavy Duty Glass Vacuum Manipulator Handles Up To 1200kg Glass Load

Features

  • CE Certified
  • 12V DC Rechargeable Battery
  • Powerful Cups Handle Up To 1200 Kg Loading With 12 Suction Cups
  • Necessary Handling Tools In Glass Fabricating Workshops & Glass Installation Sites
  • Each Vacuum Suction Cup Supports 100 Kg
  • Automatic Sensor Real Time Detects Air Leak
  • Vacuum Pump Re-Started Within 0.5 Second Whenever There Is Air Leak
  • Compact Design Allows Flexible Movement At Worksite
  • Manual 90o Tilting
Custom Made Vacuum Lifter for Jumbo Glass Size-01 Custom Made Vacuum Lifter for Jumbo Glass Size-02 Custom Made Vacuum Lifter for Jumbo Glass Size-03

Specifications

Models CL-V-MC-2-Q
Max. Glass Loading 1200 kg
Suction Cups 12
Glass Loading of Each Suction Cup 100 kg
360o Rotation Non-Applicable (Fix)
90o Tilting Pneumatic Driven
Charging Voltage AC 220V / AC 110V
Voltage DC 12 V / Two Batteries
Outer Dimensions (Lx W x H) 5000 x 1200 x 250 mm
