Glass Vacuum Suction Cups Lifters

Features & Specs

CL-V-MC-1-D


Electric Rotate & Tilt
Vacuum Lifting Transformer

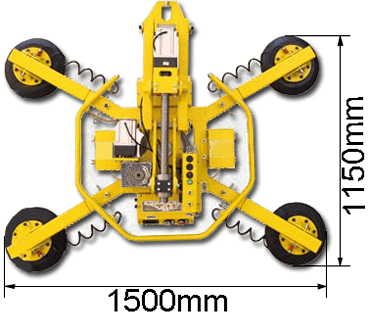

CL-V-MC-1D Electric Rotating & Tilting Glass Vacuum Lifter
Transforms to 3 Others Configurations for Various Applications

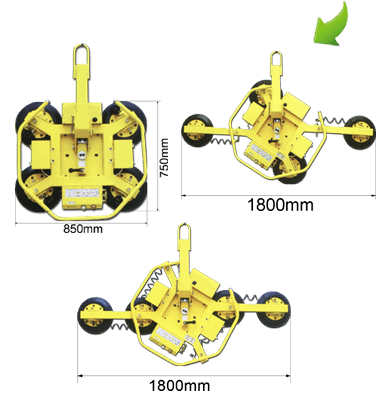

CL-V-MC-1 Transforms to Constrict Configuration

Features

  • CE Certified
  • 12V DC Rechargeable Battery
  • Powerful Cups Handle Up To 400 Kg Loading With 4 Vacuum Cups
  • Necessary Handling Tools In Glass Fabricating Workshops & Glass Installation Sites
  • Each Vacuum Suction Cup Supports 100 Kg
  • Automatic Sensor Real Time Detects Air Leak
  • Vacuum Pump Re-Started Within 0.5 Second Whenever There Is Air Leak
  • Compact Design Allows Flexible Movement
  • Electric 360o Rotation with AC Power
  • Electric 90o Tilting with AC Power
  • DC Power For Vacuum
CL-V-MC-1D Vacuum Lifter Applied at Glass Installation Site

Specifications

Models CL-V-MC-1D
Max. Glass Loading 400 kg
Suction Cups 4
Glass Loading of Each Suction Cup 100 kg
Extendable Arms Optional
360o Rotation Electric Driven by AC
90o Tilting Electric Driven by AC
Charging Voltage AC 220V / AC 110V
Voltage DC 12 V / Two Batteries
Outer Dimensions (Lx W x H) 850 x 750 x 250 mm (Standard)
1500 x 1150 x 250 mm (Optional Extended Arms)
