Glass Vacuum Suction Cups Lifters

Features & Specs

Specifications


Images Models Class Description Loading Diameter

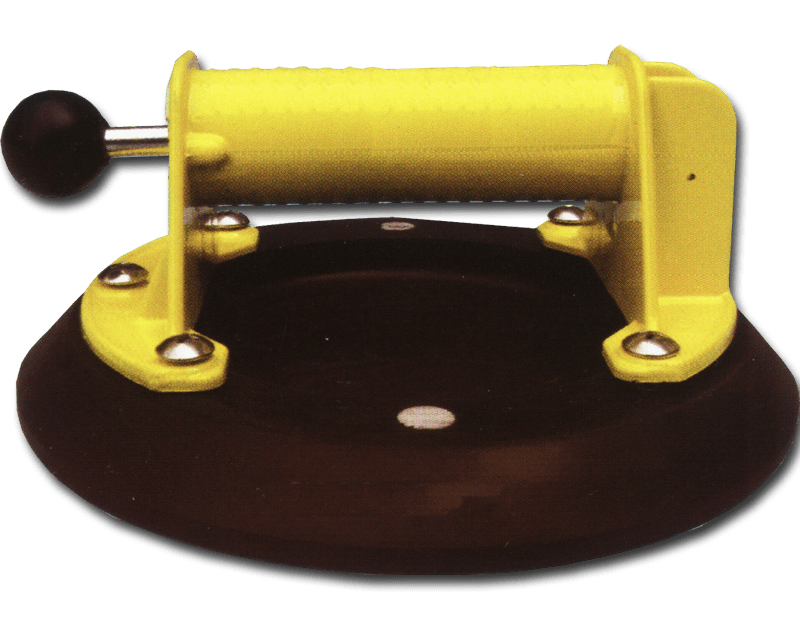

CL-HS-H-1 Pump Action Single Suction Cup for Flat Glass CL-HS-H-1 ★★★★★ Pump Action Single Suction Cup for Flat Glass 80 kg Φ 200 mm
CL-HS-H-2 Pump Action Single Suction Cup for Curve Glass CL-HS-H-2 ★★★★★ Pump Action Single Suction Cup for Curve Glass 80 kg Φ 250 mm

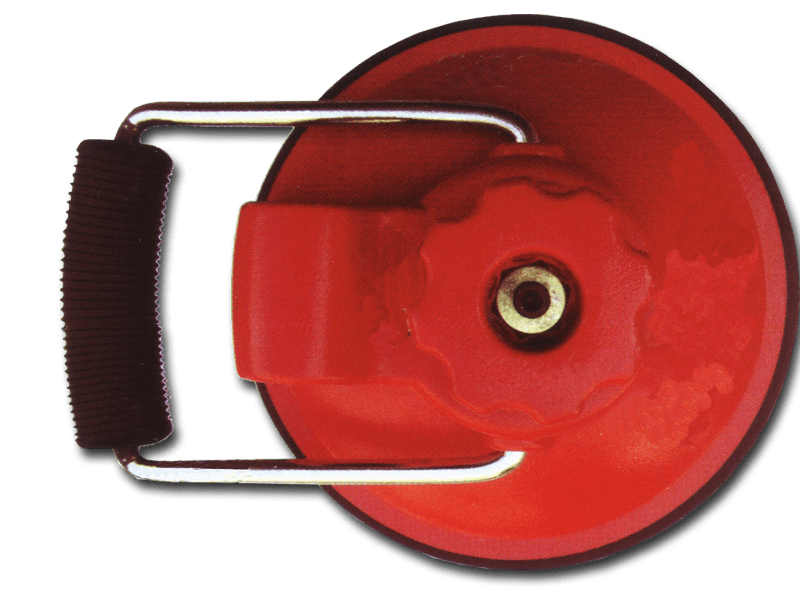

CL-HS-H-3 Single Suction Cup with Swivel Handle CL-HS-H-3 ★★★★★ Single Suction Cup with Swivel Handle 80 kg Φ 180 mm

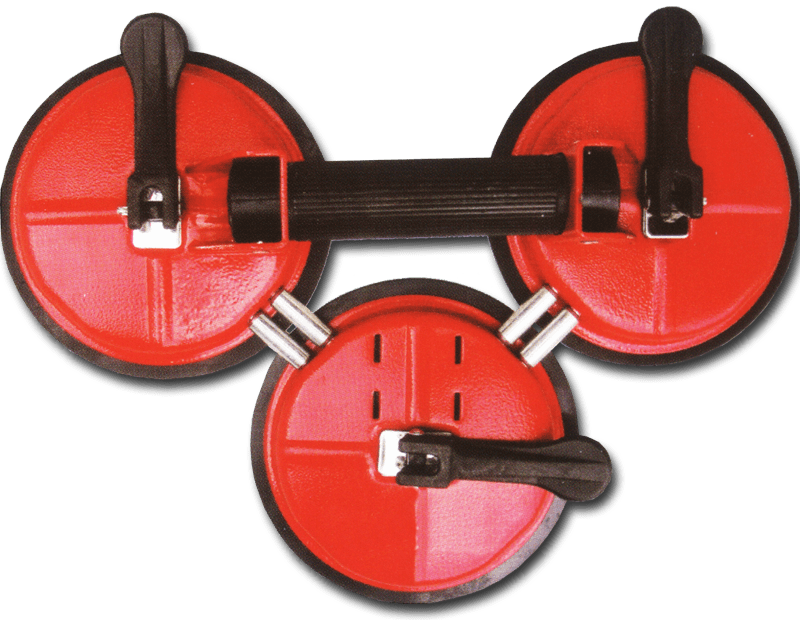

CL-HS-H-4 Large Triple Suction Cups with Level Action CL-HS-H-4 ★★★★★ Large Triple Suction Cups with Level Action 150 kg Φ 148 mm

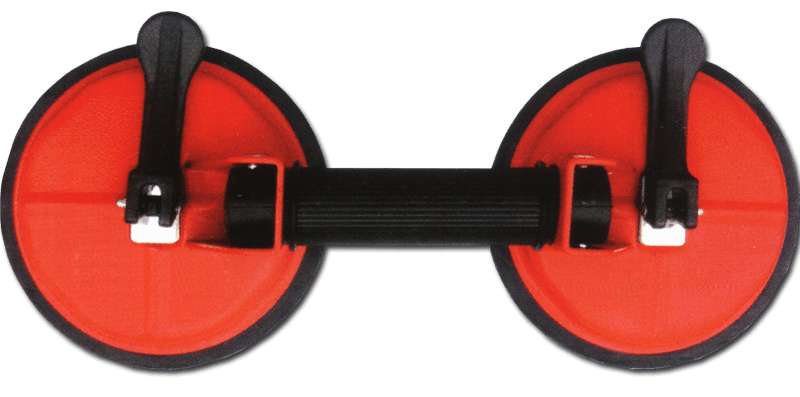

CL-HS-H-5 Large Double Suction Cups with Level Action CL-HS-H-5 ★★★★★ Large Double Suction Cups with Level Action 100 kg Φ 148 mm
Images Models Class Description Loading Diameter

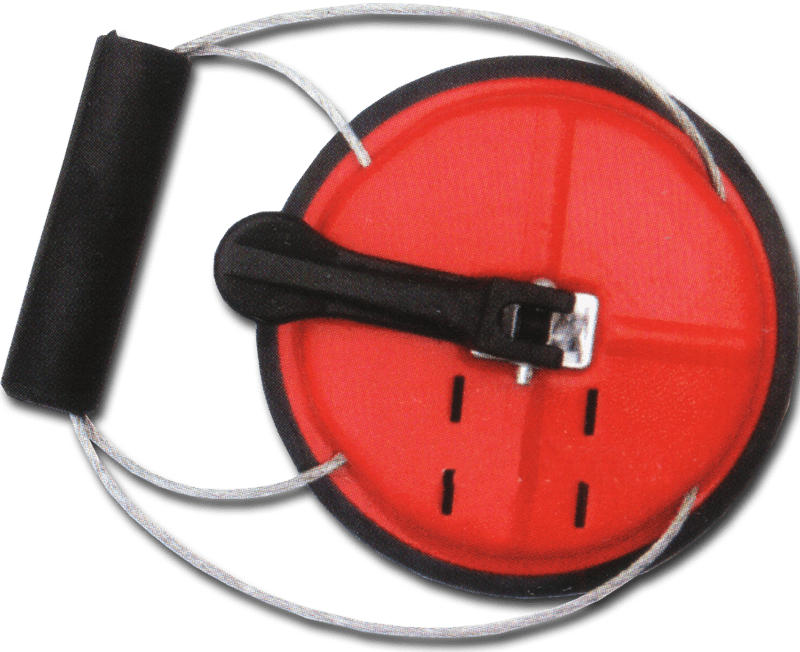

CL-HS-H-6 Single Suction Cup with Steel Wire Handle CL-HS-H-6 ★★★★★ Single Suction Cup with Steel Wire Handle 45 kg Φ 148 mm

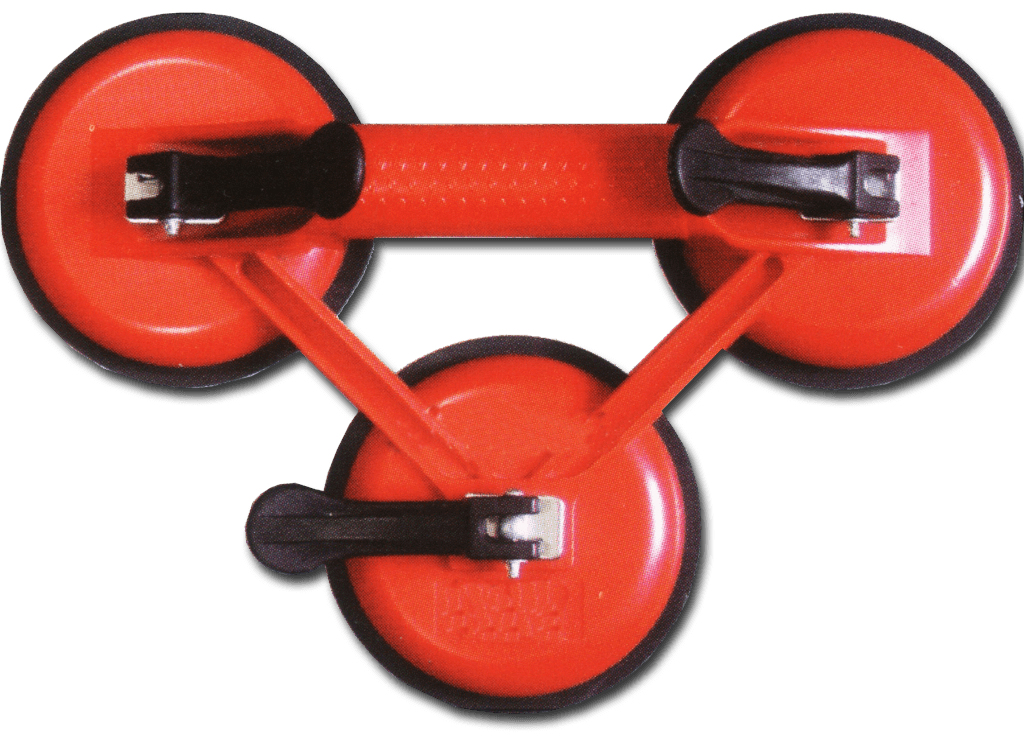

CL-HS-H-7 Level Action Small Tri-Cups CL-HS-H-7 ★★★★★ Level Action Small Tri-Cups 80 kg Φ 120 mm

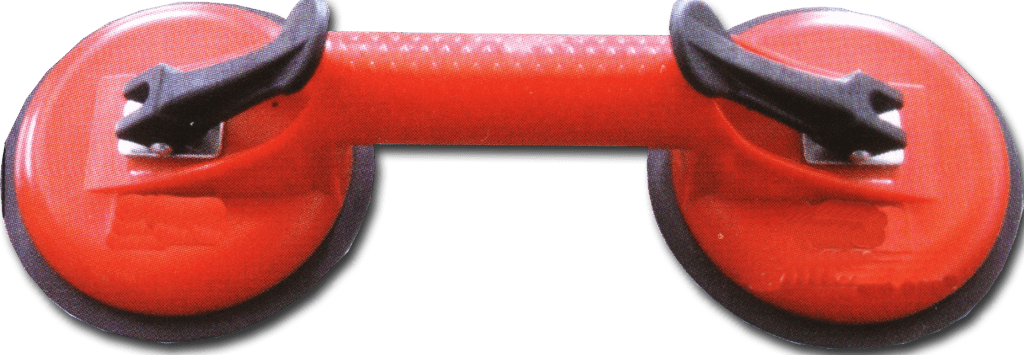

CL-HS-H-8 Level Action Small Double Cups CL-HS-H-8 ★★★★★ Level Action Small Double Cups 50 kg Φ 120 mm
CL-HS-H-9 Level Action Single Suction Cup with Two Part Handle CL-HS-H-9 ★★★★★ Level Action Single Suction Cup with Two Part Handle 30 kg Φ 120 mm

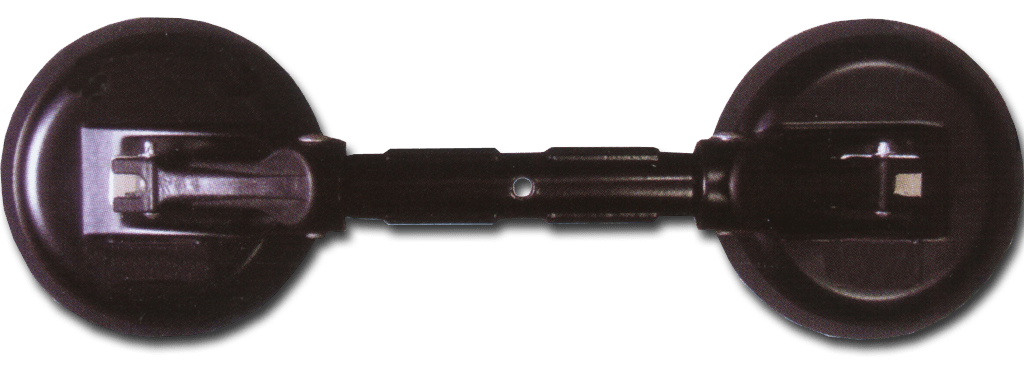

CL-HS-H-10 Heavy Duty Flexible Handle Windshield Double Suction Cups for Curve Surface CL-HS-H-10 ★★★★★ Heavy Duty Flexible Handle Windshield Double Suction Cups for Curve Surface 50 kg Φ 120 mm
CL-HS-H-12 Flexible Handle Windshield Double Suction Cups for Curve Surface CL-HS-H-11 ★★★★★ Flexible Handle Windshield Double Suction Cups for Curve Surface 30 kg Φ 95 mm
Images Models Class Description Loading Diameter
CL-HS-H-13 Mini Suction Cup CL-HS-H-13 ★★★★★ Mini Suction Cup NA Φ 80 mm

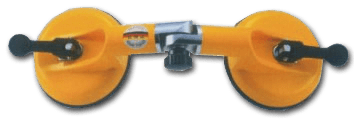

CL-HS-052 Adjustable Angle Suction Plate CL-HS-052 ★★★★★ Angle Adjustable Suction Cups 35 kg Φ 118 mm
CL-HS-053 Adjustable Angle Suction Plate CL-HS-053 ★★★★★ Angle Adjustable Suction Cups 35 kg Φ 118 mm

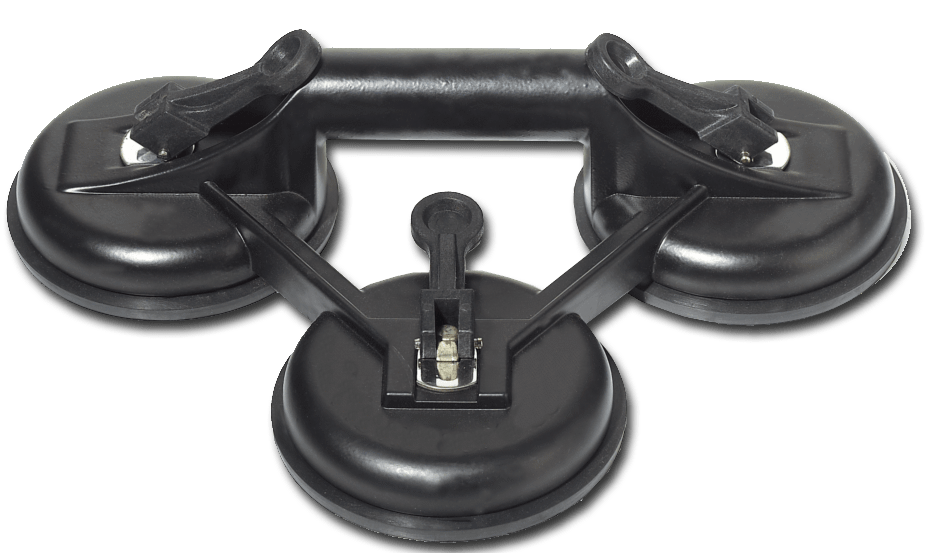

CL-HS-QX3(K) Level Action Triple Suction Cups CL-HS-QX3(K) ★★★★★ Level Action Triple Suction Cups 210 kg Φ 128 mm

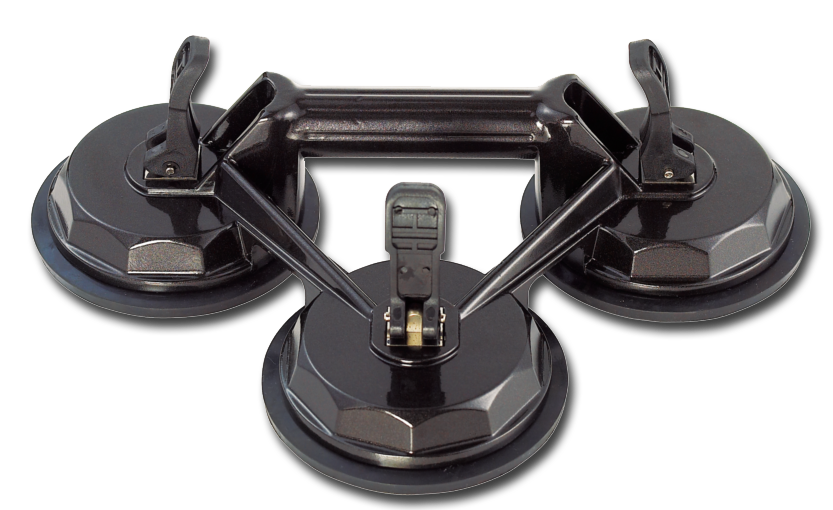

CL-HS-QX3(H)A Level Action Triple Cups with Better Rubber CL-HS-QX3(H)A ★★★★ Level Action Triple Cups with Better Rubber 190 kg Φ 123 mm
CL-HS-QX3(H)B ★★★ Level Action Triple Cups with Standard Rubber 150 kg Φ 123 mm
Images Models Class Description Loading Diameter

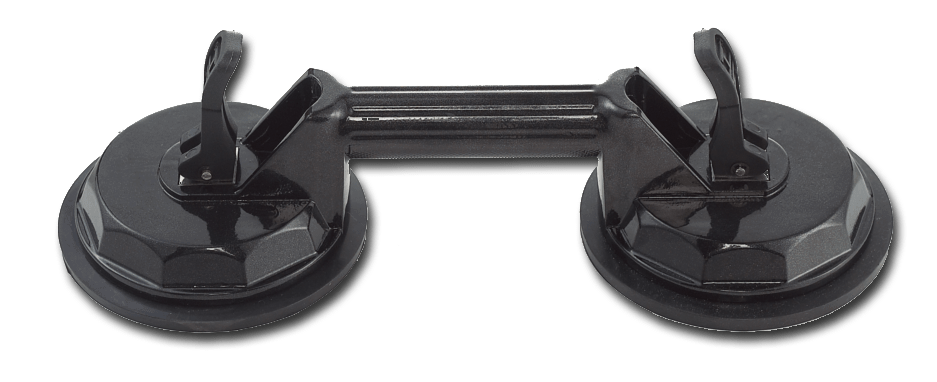

CL-HS-QX2(H)A Level Action Double Cups with Better Rubber CL-HS-QX2(H)A ★★★★ Level Action Double Cups with Better Rubber 130 kg Φ 123 mm
CL-HS-QX2(H)B ★★★ Level Action Double Cups with Standard Rubber 100 kg Φ 123 mm
CL-HS-QX3(M)A Level Action Triple Cups with Better Rubber CL-HS-QX3(M)A ★★ Level Action Triple Cups with Better Rubber 170 kg Φ 120 mm
CL-HS-QX3(M)B ★★ Level Action Triple Cups with Standard Rubber 150 kg Φ 120 mm
CL-HS-QX2(M)A Level Action Double Cups with Better Rubber CL-HS-QX2(M)A ★★ Level Action Double Cups with Better Rubber 110 kg Φ 120 mm
CL-HS-QX2(M)B ★★ Level Action Double Cups with Standard Rubber 100 kg Φ 120 mm
CL-HS-QX1(M)A Level Action Single Suction Cup with Two Part Handle CL-HS-QX1(M)A ★★ Level Action Single Suction Cup with Two Part Handle 50 kg Φ 120 mm

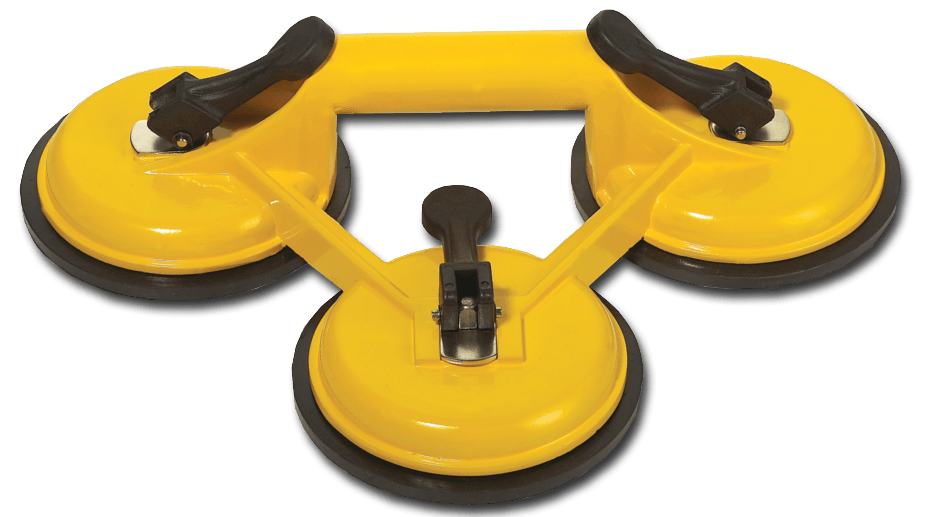

CL-HS-Q3Y Level Action Tri-Suction Cups in Yellow CL-HS-Q3Y Level Action Tri-Suction Cups in Yellow 150 kg Φ 123 mm

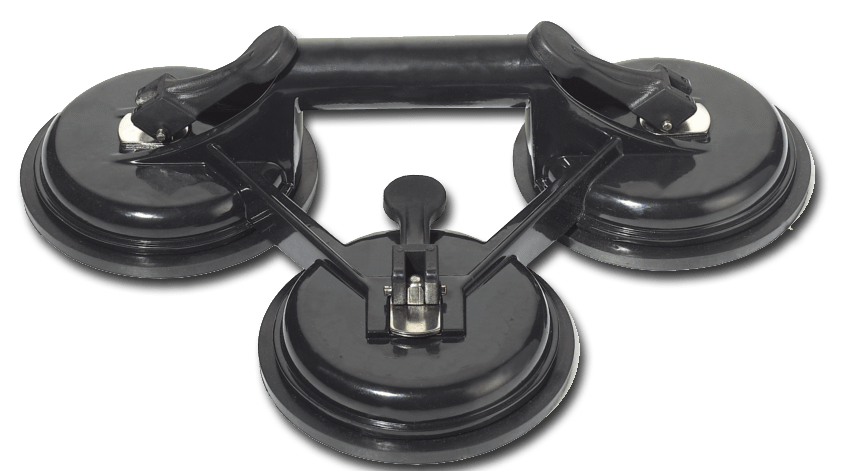

CL-HS-Q3B Level Action Tri-Suction Cups in Black CL-HS-Q3B Level Action Tri-Suction Cups in Black 150 kg Φ 123 mm
Images Models Class Description Loading Diameter

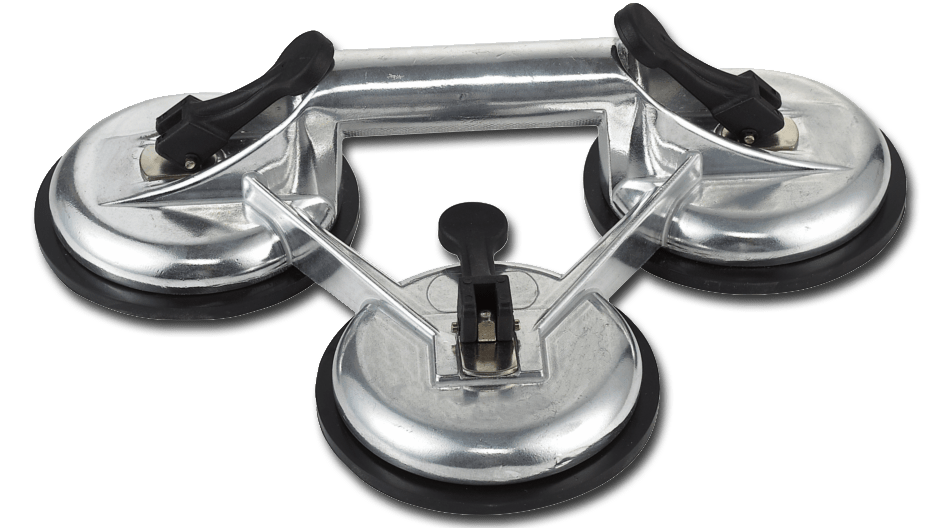

CL-HS-Q3 Level Action Tri-Suction Cups in Polish Finish CL-HS-Q3 Level Action Tri-Suction Cups in Polish Finish 150 kg Φ 123 mm

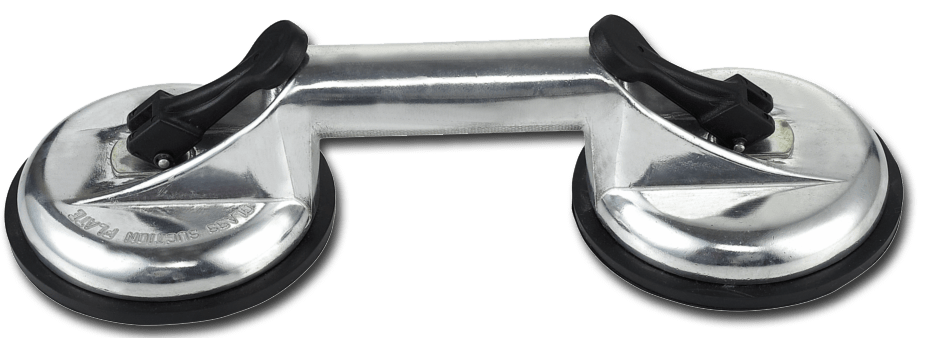

CL-HS-Q2 Level Action Double Suction Cups in Polish Finish CL-HS-Q2 Level Action Double Suction Cups in Polish Finish 100 kg Φ 123 mm

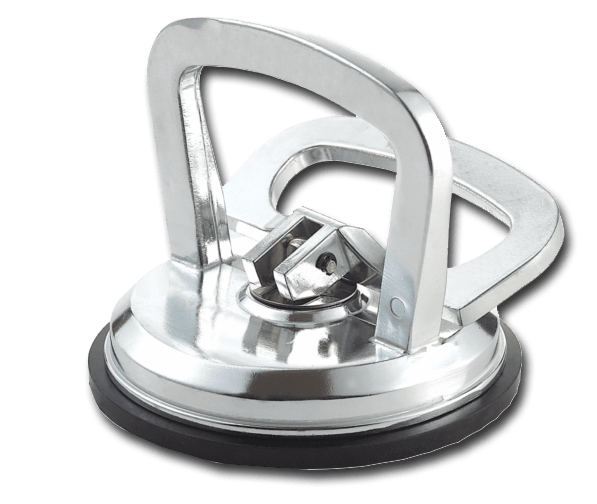

CL-HS-Q1 Level Action Single Suction Cup with Two Part Handle CL-HS-Q1 Level Action Single Suction Cup with Two Part Handle 45 kg Φ 123 mm
CL-HS-QP2 Rubber Pad for CL-CUP-QX3 CL-HS-QP2 ★★★★ Rubber Pad for CL-CUP-QX3(K) NA Φ 128 mm
CL-HS-QP5 Rubber Pad for models with suffix CL-HS-QP5 ★★★ Rubber Pad for models with suffix (H)A NA Φ 123 mm
CL-HS-QP8 Rubber Pad for models with suffix CL-HS-QP8 ★★ Rubber Pad for models with suffix (M)A NA Φ 120 mm
Images Models Class Description Loading Diameter
CL-HS-QP10 Rubber Pad for models with suffix (H)B & (M)B CL-HS-QP10 Rubber Pad for models with suffix (H)B & (M)B NA Φ 123 mm

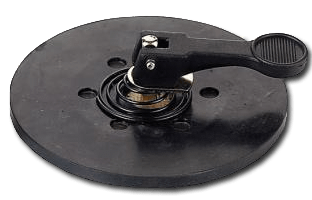

CL-HS-QP11 Rubber Pad for models with suffix Q3Y, Q3B, Q3 & Q2 CL-HS-QP11 Rubber Pad for models with suffix Q3Y, Q3B, Q3 & Q2 NA Φ 123 mm
CL-HS-QP12 Rubber Pad for CL-HS-Q1 CL-HS-QP12 Rubber Pad for CL-HS-Q1 NA Φ 123 mm

Notes: More ★ means better quality of metal body, rubber pads and accessories.
