Cork Separator Pads

Specifications

Cork Separators (Foam-Free)

Models Cork Pad with Glue-Free Foam

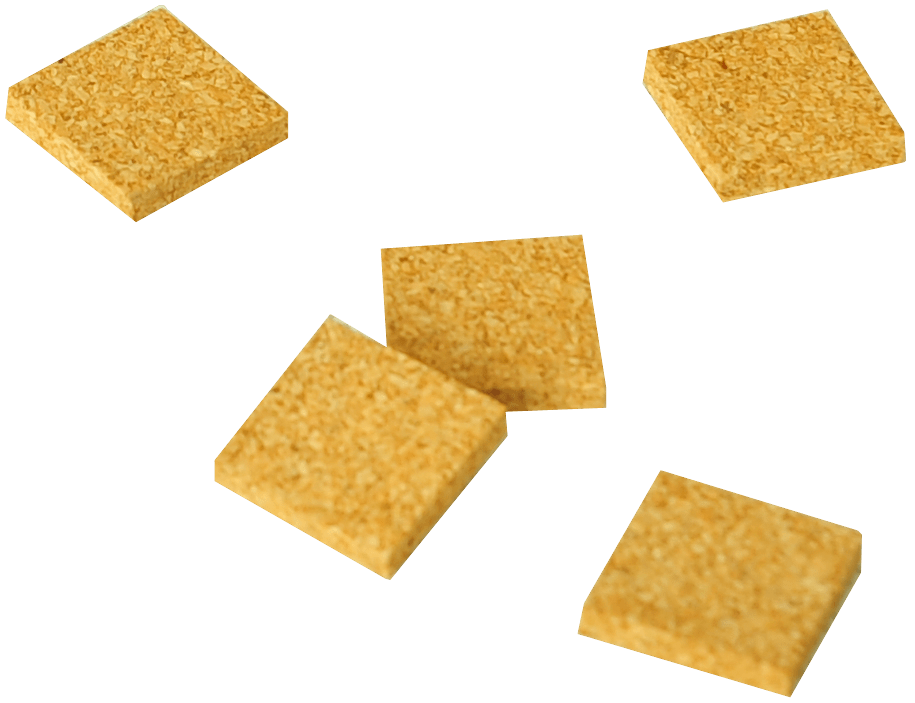

SB Series Separating Cork Pad Free of Foam
Sheet

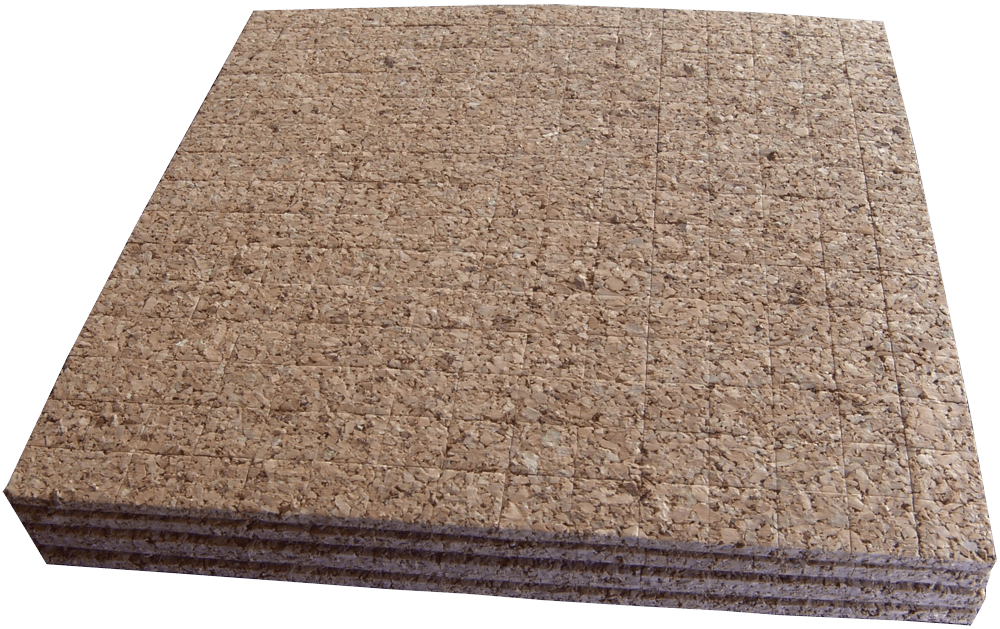

SB Series Cork Separating Pad
Qty. of Corks / m2 Packing
Size (mm) Thickness (mm) Size (mm) Quantity of Cork / Sheet Quantity Dimensions (mm) Weight (kg)
Length Width Cork Foam Total Length Width No. of Corks / Sheet Length No. of Corks / Sheet Width Total Sheets / Box Corks / Box m2 / Box Length Width Height CBM Net Gross
SB-10-1.5 10 10 1.5 0 1.5 221 187 22 18 396 9582 560 221760 23.14 400 240 510 0.04896 12 12.5
SB-10-2 2 0 2 426 168696 17.61 400 240 480 0.04608 11 11.5
SB-10-3 3 0 3 284 112464 11.74 400 240 480 0.04608 10 10.5
SB-10-4 4 0 4 213 84348 8.80 400 240 480 0.04608 10 10.5
SB-10-5 5 0 5 170 67320 7.03 400 240 480 0.04608 10 10.5
SB-17-1.5 17 17 1.5 0 1.5 221 187 13 11 143 3460 560 80080 23.14 400 240 510 0.04896 12 12.5
SB-17-2 2 0 2 426 60918 17.61 400 240 480 0.04608 11 11.5
SB-17-3 3 0 3 284 40612 11.74 400 240 480 0.04608 10 10.5
SB-17-4 4 0 4 213 30459 8.80 400 240 480 0.04608 10 10.5
SB-17-5 5 0 5 170 24310 7.03 400 240 480 0.04608 10 10.5
SB-20-1.5 20 20 1.5 0 1.5 221 187 11 9 99 2395 560 55440 23.14 400 240 510 0.04896 12 12.5
SB-20-2 2 0 2 426 42174 17.61 400 240 480 0.04608 11 11.5
SB-20-3 3 0 3 284 28116 11.74 400 240 480 0.04608 10 10.5
SB-20-4 4 0 4 213 21087 8.80 400 240 480 0.04608 10 10.5
SB-20-5 5 0 5 170 16830 7.03 400 240 480 0.04608 10 10.5
SB-25-1.5 24 23 1.5 0 1.5 221 187 9 8 72 1742 560 40320 23.14 400 240 510 0.04896 12 12.5
SB-25-2 2 0 2 426 30672 17.61 400 240 480 0.04608 11 11.5
SB-25-3 3 0 3 284 20448 11.74 400 240 480 0.04608 10 10.5
SB-25-4 4 0 4 213 15336 8.80 400 240 480 0.04608 10 10.5
SB-25-5 5 0 5 170 12240 7.03 400 240 480 0.04608 10 10.5
SB-30-1.5 31 31 1.5 0 1.5 221 187 7 6 42 1016 560 23520 23.14 400 240 510 0.04896 12 12.5
SB-30-2 2 0 2 426 17892 17.61 400 240 480 0.04608 11 11.5
SB-30-3 3 0 3 284 11928 11.74 400 240 480 0.04608 10 10.5
SB-30-4 4 0 4 213 8946 8.80 400 240 480 0.04608 10 10.5
SB-30-5 5 0 5 170 7140 7.03 400 240 480 0.04608 10 10.5
SB-35-1.5 36 37 1.5 0 1.5 221 187 6 5 30 725 560 16800 23.14 400 240 510 0.04896 12 12.5
SB-35-2 2 0 2 426 12780 17.61 400 240 480 0.04608 11 11.5
SB-35-3 3 0 3 284 8520 11.74 400 240 480 0.04608 10 10.5
SB-35-4 4 0 4 213 6390 8.80 400 240 480 0.04608 10 10.5
SB-35-5 5 0 5 170 5100 7.03 400 240 480 0.04608 10 10.5
SB-45-1.5 44 46 1.5 0 1.5 221 187 5 4 20 483 560 11200 23.14 400 240 510 0.04896 12 12.5
SB-45-2 2 0 2 426 8520 17.61 400 240 480 0.04608 11 11.5
SB-45-3 3 0 3 284 5680 11.74 400 240 480 0.04608 10 10.5
SB-45-4 4 0 4 213 4260 8.80 400 240 480 0.04608 10 10.5
SB-45-5 5 0 5 170 3400 7.03 400 240 480 0.04608 10 10.5
SB-55-1.5 55 62 1.5 0 1.5 221 187 4 3 12 290 560 6720 23.14 400 240 510 0.04896 12 12.5
SB-55-2 2 0 2 426 5112 17.61 400 240 480 0.04608 11 11.5
SB-55-3 3 0 3 284 3408 11.74 400 240 480 0.04608 10 10.5
SB-55-4 4 0 4 213 2556 8.80 400 240 480 0.04608 10 10.5
SB-55-5 5 0 5 170 2040 7.03 400 240 480 0.04608 10 10.5
