Specifications

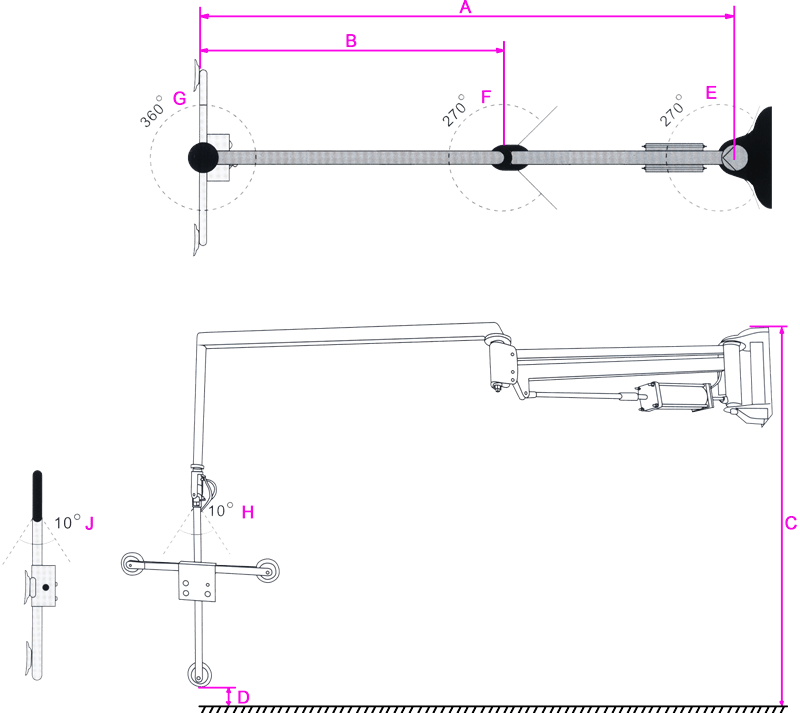

MPL-S-B
Codes | Models | MPL-S-B-3R100 | MPL-S-B-3R250 | MPL-S-B-3R350 | MPL-S-B-4R100 | MPL-S-B-4R250 | MPL-S-B-5R100 | |
N/A | Max. Glass Loading | 100 kg | 250 kg | 350 kg | 100 kg | 250 kg | 100 kg | |
A | Overall Slewing Working Radius | 3 m | 3 m | 3 m | 4 m | 4 m | 5 m | |
B | Forearm Working Radius | 1.5 m | 1.5 m | 1.5 m | 2 m | 2 m | 2.5 m | |
C | Height | CH (Highest) | 3800 mm | 3800 mm | 3800 mm | 3800 mm | 3800 mm | 3800 mm |
C (Level) | 3000 mm (Recommended installed height. Actual install height may vary according to site condition.) |
|||||||
CL (Lowest) | 2200 mm | 2200 mm | 2200 mm | 2200 mm | 2200 mm | 2200 mm | ||
D | Lowest Suction Cup Distance From Floor | DH (Highest) | 1800 mm | 1800 mm | 1800 mm | 1800 mm | 1800 mm | 1800 mm |
D (Level) | 1000 mm (When Installed Height C is at 3000mm) |
|||||||
DL (Lowest) | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | ||
E | Pivot Slewing Angle | 270° | 270° | 270° | 270° | 270° | 270° | |
F | Forearm Slewing Angle | 270° | 270° | 270° | 270° | 270° | 270° | |
G | Horizontal Rotating Angle | 360° | 360° | 360° | 360° | 360° | 360° | |
H | Swinging Angle | ±5° | ±5° | ±5° | ±5° | ±5° | ±5° | |
J | Tilting Angle | ±5° | ±5° | ±5° | ±5° | ±5° | ±5° | |
N/A | Voltage | AC 220V / Single Phase / 50 Hz | AC 220V / Single Phase / 50 Hz | AC 220V / Single Phase / 50 Hz | AC 220V / Single Phase / 50 Hz | AC 220V / Single Phase / 50 Hz | AC 220V / Single Phase / 50 Hz |
