Glass Manipulators

Specifications

MPL-S-A

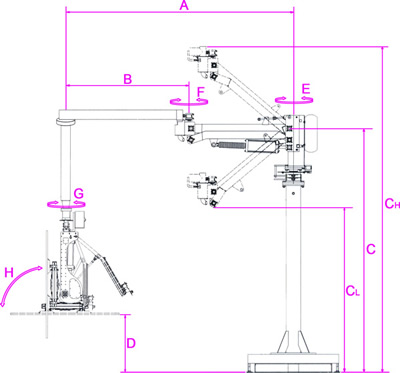

Glass Manipluator Tilting MPL-S-A Stationary Floor Mounted Glass Manipulator Diagram
Codes Models MPL-S-A-3R100 MPL-F-S-3R250 MPL-F-S-3R350 MPL-F-S-4R100 MPL-F-S-4R250 MPL-F-S-5R100
N/A Max. Glass Loading 100 kg 250 kg 350 kg 100 kg 250 kg 100 kg
A Overall Slewing Working Radius 3 m 3 m 3 m 4 m 4 m 5 m
B Forearm Working Radius 1.5 m 1.5 m 1.5 m 2 m 2 m 2,5
C Height CH (Highest) 3800 mm 3800 mm 3800 mm 3800 mm 3800 mm 3800 mm
C (Level) 3000 mm 3000 mm 3000 mm 3000 mm 3000 mm 3000 mm
CL (Lowest) 2200 mm 2200 mm 2200 mm 2200 mm 2200 mm 2200 mm
D Glass Distance From Floor DH (Highest) 1600 mm 1600 mm 1600 mm 1600 mm 1600 mm 1600 mm
D (Level) 800 mm 800 mm 800 mm 800 mm 800 mm 800 mm
DL (Lowest) 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
E Post Slewing Angle 360° 360° 360° 360° 360° 360°
F Forearm Slewing Angle 270° 270° 270° 270° 270° 270°
G Self-Rotation Angle 360° 360° 360° 360° 360° 360°
H Tilting Angle 0° ~ 100° 0° ~ 100° 0° ~ 100° 0° ~ 100° 0° ~ 100° 0° ~ 100°
N/A Voltage AC 220V / Single Phase / 50 Hz AC 220V / Single Phase / 50 Hz AC 220V / Single Phase / 50 Hz AC 220V / Single Phase / 50 Hz AC 220V / Single Phase / 50 Hz AC 220V / Single Phase / 50 Hz
