Features & Specs

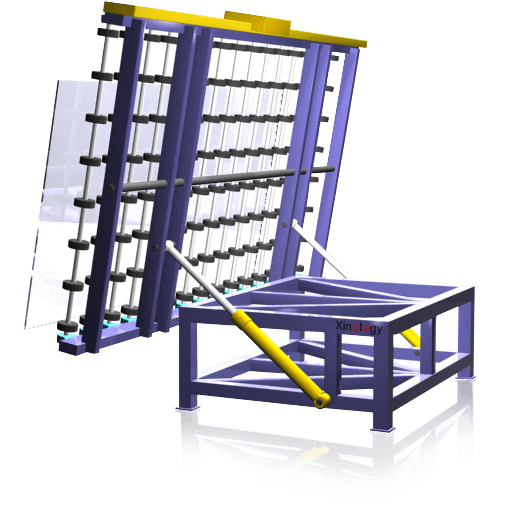

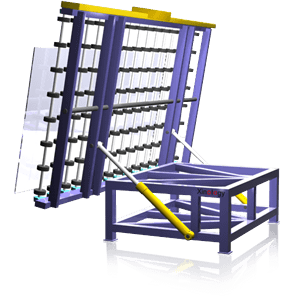

Tilting Conveyors with Motorized Horizontal Glass Movement
- This Glass Tilted Conveyor is Made of Sturdy Welded Tubular Steel Painted with Top Quality Varnish
- Glass Tilted Conveyors Activated by Powerful Cylinders
- Shock Free Tilting Motions Especially When Approaching Horizontal Position
- Glass Travels Horizontally
- Electric Motorized Chain Driven Conveyor with Anti-Slipping Abrasive Proof Donut Wheels
- Glass Convey Speed Adjustable by Speed Regulator
| Models | GH-TH-B-1020 | GH-TH-B-1525 | GH-TH-B-2030 | GH-TH-B-2537 | GH-TH-B-3361 |
| Max. Glass Size (mm) | 1000 x 2000 | 1500 x 2500 | 2000 x 3000 | 2500 x 3700 | 3300 x 6100 |
| Working Height(mm) | 900 | 900 | 900 | 900 | 900 |
| Max. Glass Loading (kg) | 100 | 160 | 300 | 400 | 900 |
| Tilting By | Pneumatic | Pneumatic | Hydraulic | Hydraulic | Hydraulic |
| Power (KW) | 2 | 2 | 3 | 3 | 5 |
| Weight (kg) | 240 | 450 | 600 | 880 | 1800 |
| Outer Dimensions (LxWxH) (m) | 2.1 x 1 x 0.9 | 2.6 x 1.5 x 0.9 | 3.1 x 2.0 x 0.9 | 3.8 x 2.5 x 0.9 | 6.2 x 3.3 x 0.9 |
