Glass Handling & Transfering Tables & Conveyors

Features & Specs

Automatic Glass Loading Machines

Features

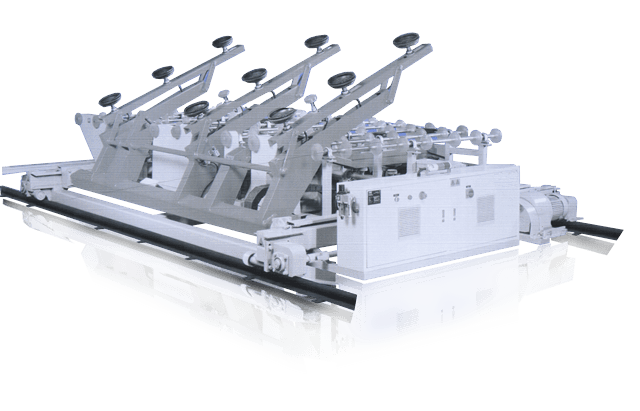

Glass Tilted Loading Arms of Automatic Glass Loading Machines Activated by Powerful Cylinders
  • GH-TH-A Series Automatic Glass Loading Conveyor is Made of Sturdy Welded Tubular Steel Painted with Top Quality Varnish
  • Glass Tilted Loading Arms Activated by Powerful Cylinders
  • Vacuum Suction Cups on Each Tilting Arm
  • Each Vacuum Suction Cup Could Be Opened or Closed According to Glass Size
  • Each Vacuum Suction Cup Could Slide Along Tilting Arm According to Glass Height
  • Shock Free Tilting Motions Especially When Approaching Horizontal Position
  • Glass Tilting Arms Moves Transversely Towards Glass Rack to Pick Up Glass
  • Steady Suction & Movement Suitable for Thin Glass Handling
  • Electric Motorized Conveyor with Anti-Slipping Abrasive Proof Donut Wheels
  • Glass Convey Speed Adjustable by Speed Regulator
  • Automatic Glass Loading from Glass Rack or Crate onto Table & Convey Downstream
  • Automatic Glass Convey from Upstream & Unloading from Table to Glass Rack or Crate
  • Machine Comes with One "L" Glass Rack Putting Right Next to Loading Arms

Specifications

Models GH-TH-A-2030Small Medium Glass Sizes Automatic Glass Loading Machine with Ultra High Vacuum Suction Cups GH-TH-A-2537Jumbo Glass Sizes Automatic Glass Loading Machine with Ultra High Vacuum Suction Cups GH-TH-A-3361Medium Large Glass Sizes Automatic Glass Loading Machine with Ultra High Vacuum Suction Cups
Max. Glass Size (mm) 2000 x 3000 2500 x 3700 3300 x 6100
Working Height(mm) 900 900 900
Max. Glass Loading (kg) 300 400 900
Tilting By Hydraulic Hydraulic Hydraulic
Compress Air Consumption (Lt/min.) 25 30 35
Compress Air Pressure (MPa) 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8
Power (KW) 4 6 9
Weight (kg) 850 1200 2400
Outer Dimensions (LxWxH) (m) 4 x 2.5 x 0.9 4.7 x 3 x 0.9 7.2 x 4.3 x 0.9

Option

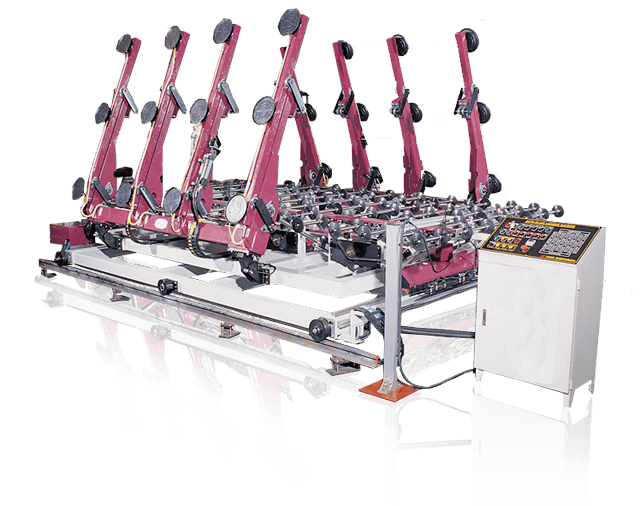

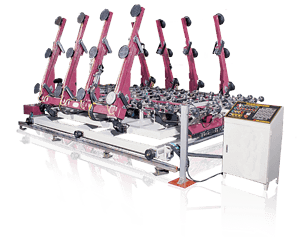

Automatic Double Sides Glass Loading Machine

This extra system is identical to first system but it is reversely tilted. This mirror design is helpful if it is required to cut two different glass types, for example, ordinary glass and low-e glass when processing insulating glass. It doubles glass type storages and minimizes glass changeover downtime. This double glass loading machine comes with additional "L" glass racks located next to optional loading arms.

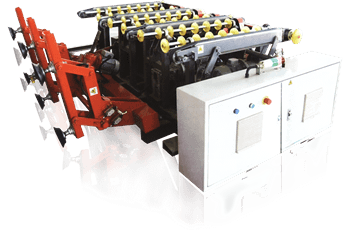

Automatic Glass Loading Machine with Traverse Belts Transfer Conveyor

They are traverse belt conveyors locating in between longitudinal roller conveyors. After loading, glass could be transported by conveying rollers downstream to table or conveyor next to loading machine, or by these conveying belts downstream to table or conveyor locating side by side to loading machine. This option provides an alternative for glass traveling direction after loading.

Rotating Glass Rack Minimizes Glass Changeover Time for Glass Loading or Unloading

It is a rotating mechanism on which glass rack is put. Instead of "L"-shaped glass rack, optional "A"-shaped glass rack is incorporated with the system. When glass on one side of "A" rack is empty (glass loading) or full (glass unloading), it rotates until another side of glass rack faces to loading machine. While the machine starts immediately to load or unload glass on second side, glass on the first side also begins to be loaded or unloaded. This design minimizes glass changeover downtime.

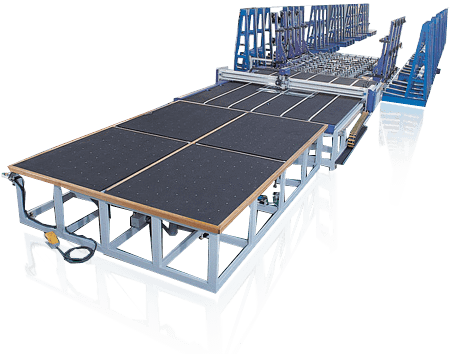

Automatic Glass Loading Machine Runs Among Multiple Glass Stations on Rails Track

If more glass types are to be loaded, a multi-loading station is required. There are rows of glass racks located upstream of loading machine. Loading machine runs on rail tracks and stops at right glass rack which is pre-set. If necessary, two rows of glass racks are designed opposite to each other along rail tracks. This design is to have more glass types for selection. A double-sides loading machine is always incorporated to this two rows design of glass racks. The control system and program are upgraded such that the machine is pre-set so that it knows the sequential order of glass picking up from racks. This multi-loading station is also a glass storage system and the sophisticated design greatly reduces glass changeover downtime.
